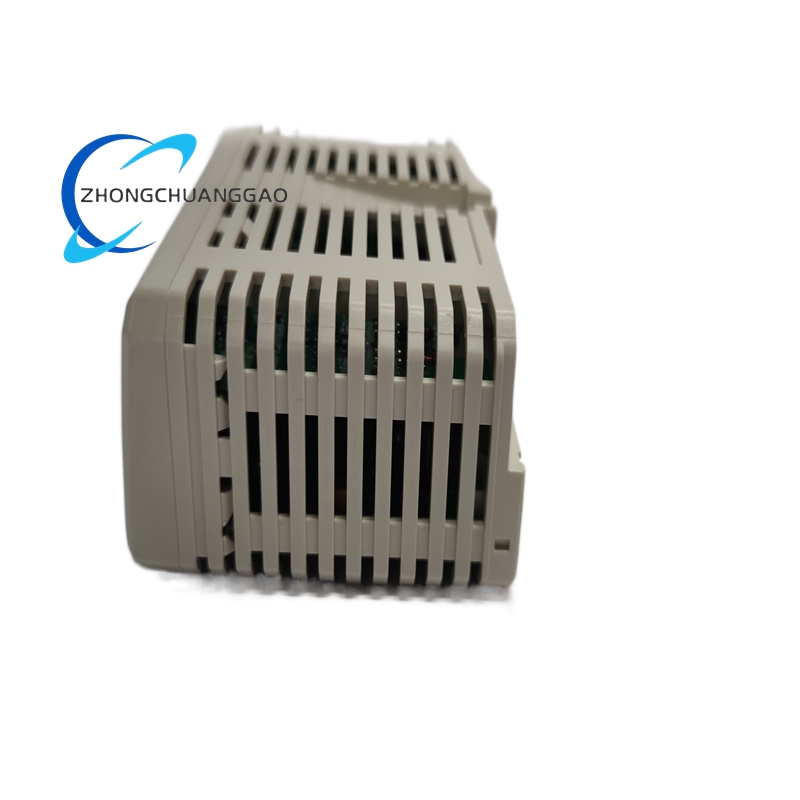

ABB AO815 3BSE052605R1 Analog Output Module

Description

Technical Specifications

• Number of Output Channels: 8 unipolar analog output channels
• Output Signal Type: 4–20 mA DC (unipolar, fixed current output)eero
• Resolution: 12-bit digital-to-analog conversion
• Accuracy: ±0.1% of full scale (FS) at 25°C
• Load Capacity: Maximum 750 Ω at 24 V DC supply voltageeero
• Response Time: ≤1 ms from digital input to analog output
• Isolation Rating: 500 V RMS reinforced insulation between the 8-channel group and system ground
• Power Supply: 24 V DC ±10%
• Power Consumption: 2 W typical
• Operating Temperature: -25°C to +60°C
• Protection Rating: IP20
• Dimensions: 15.5 mm (width) × 127.5 mm (height) × 62 mm (depth)
• Weight: 0.3 kg
• Mounting: DIN rail mounting, hot-swappable design
• Certifications: Compliant with CE, UL, and RoHS industrial standards
• Short-Circuit Protection: Short-circuit secured to ZP or +24 V, current-limited design

Functional Features

• HART Pass-Through Communication: Supports HART protocol in point-to-point mode, enabling bi-directional digital communication over analog signal lines for field device configuration, calibration, and diagnostics; output filter must be enabled for HART operation.
• Cyclic Self-Diagnostics: Performs continuous, automatic self-checks to monitor module health, including external channel errors (low process power, open circuit), internal channel errors (incorrect current output), and module errors (output transistor fault, short circuit, checksum error, internal power supply fault, watchdog error).
• Open-Circuit Detection: Real-time open-circuit monitoring for each active channel, triggering fault alerts when output current falls below the set value (for set values >1 mA).
• Group Isolation: All 8 channels share a single isolation barrier from system ground, eliminating ground loops and protecting against electrical interference in industrial environments.
• Short-Circuit Protection: Built-in short-circuit protection safeguards the module and connected field devices from electrical damage.
• Hot-Swappable Design: Allows module replacement or installation without powering down the entire system, minimizing downtime and simplifying maintenance.
• Modular Integration: Seamlessly integrates with ABB S800 I/O racks and System 800xA architecture, supporting flexible system expansion and configuration.
• Stable Signal Output: Delivers consistent, high-precision 4–20 mA signals for reliable process control, even in fluctuating industrial conditions.

Application Scenarios

• Oil & Gas Industry: Precise control of control valves, pressure regulators, flow actuators, and pump drives in upstream drilling, midstream pipeline operations, and downstream refining processes.
• Chemical & Petrochemical Processing: Regulation of reactor systems, distillation columns, material handling equipment, and dosing systems in chemical manufacturing plants.
• Power Generation: Control of steam turbines, boiler systems, generator excitation, and auxiliary equipment in thermal, hydro, and combined-cycle power plants.
• Metallurgy & Mining: Actuator control for smelting furnaces, material conveyors, ore processing machinery, and metal forming equipment.
• Water & Wastewater Treatment: Precise control of pumps, valves, chemical dosing systems, and filtration equipment in municipal and industrial water treatment facilities.
• Pharmaceutical Manufacturing: Regulation of temperature, pressure, flow, and mixing processes in regulated pharmaceutical production lines.
• Food & Beverage Processing: Control of heating, cooling, mixing, and packaging automation systems in food and beverage production.
• Paper & Pulp Production: Actuator control for drying cylinders, presses, material feed, and quality control systems in paper manufacturing plants.
• Factory Automation: Integration with variable frequency drives, positioners, and other analog-controlled equipment in discrete manufacturing and assembly lines.
