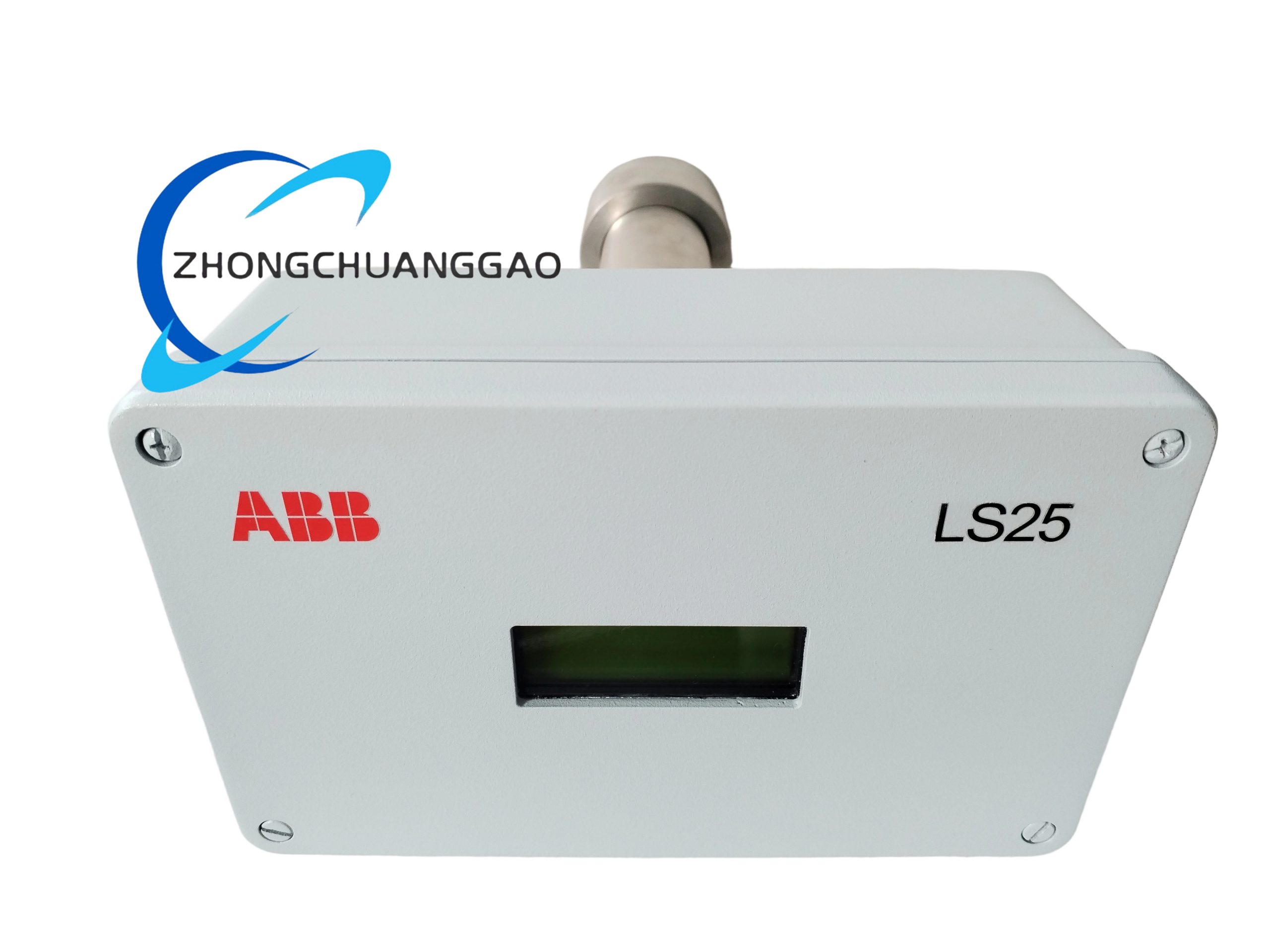

ABB AO2000 LS25 Analog Output Module

Product Short Description

Technical Specifications

Channel Quantity: 25 channels
Output Type: Voltage and current
Output Range: Voltage: ±10V, ±5V, ±2.5V, ±1V; Current: ±20mA, ±10mA, ±5mA, ±2mA
Resolution: 16 – bit
Accuracy: ±0.1%
Power Supply Voltage: 9 – 32V DC
Rated Output Load: 0 – 600Ω
Linearity Error: ≤0.2%
Stability Error: ≤0.1% F.S./24h

Function Features

Multiple Output Channels: Provides 25 analog output channels, allowing for simultaneous control of multiple devices.
High – Resolution: With a 16 – bit resolution, it can provide precise analog output signals.
Wide Output Range: Each channel supports a wide output voltage and current range, ensuring compatibility with various devices.
High Accuracy: The accuracy is ±0.1%, and the linearity error is ≤0.2%, ensuring the reliability of output signals.
Good Protection Functions: Supports overload current protection and short – circuit protection, and has an isolation voltage of 500V AC.
Strong Anti – interference Ability: Complies with the GB/T 18268.1 – 2012 standard, with strong anti – electromagnetic interference ability.
Easy to Install and Configure: Adopts a DIN – rail mounting method, and can be easily configured and programmed using ABB’s intuitive software.
Multiple Communication Protocols Support: Supports multiple communication protocols, making it compatible with different automation platforms and systems.

Application Scenarios

Process Control: Such as controlling the opening of regulating valves and adjusting the frequency of inverters in industrial production processes.
Machine Automation: Used in the control system of machine tools and other equipment to ensure precise operation.
Monitoring Systems: Applied in process control, machine automation and monitoring systems to monitor and control various parameters.
Industrial Fields: Widely used in industrial fields such as power, petrochemical, and metallurgy.
