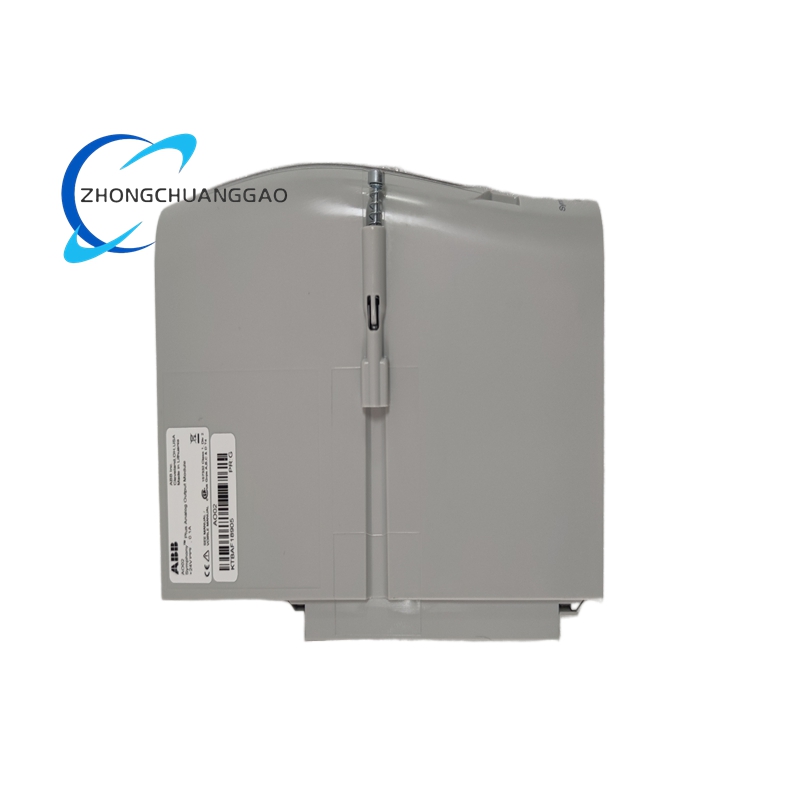

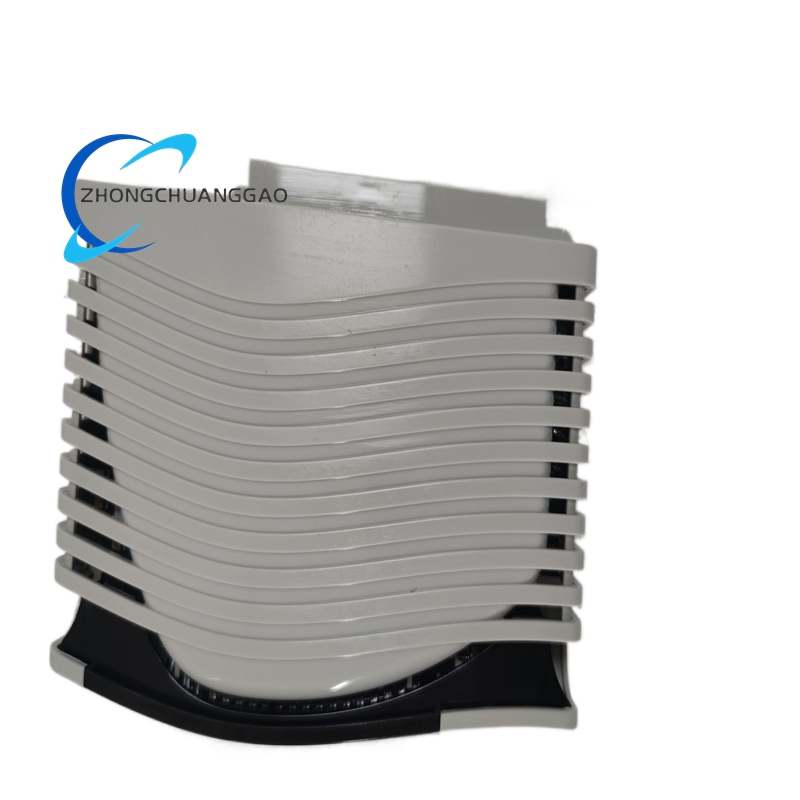

ABB AO02 Analog Output Module

Description

Technical Specifications

• Number of Output Channels: 16 independently configurable, group-isolated channels
• Supported Signal Ranges:
  • Current mode: 4–20 mA DC
  • Voltage mode: 1–+5 V DC
• D/A Converter Resolution: 12 bits per channel (one dedicated D/A converter per output channel)
• Accuracy: 0.1% of Full Scale Range (FSR)
• Current Mode Load Capacity: Up to 750 Ω
• HART Protocol Support: HART v5.4 compatible
• Module Power Supply: 24 V DC ±10%, typical 100 mA, maximum 125 mA
• Field I/O Power: 20 mA per channel @ 24 V DC ±10%
• Operating Temperature: -40°C to +70°C (standard industrial range)
• Dimensions: Standard 190 mm form factor
• Mounting: Horizontal row or vertical column installation
• Protection: Short-circuit protection (current limited to 26 mA max), open-circuit detection (<5 seconds)
• Certifications: Compliant with CE, UL, and RoHS industrial standards

Functional Features

• Independent Channel Configuration: Each of the 16 channels can be individually set to 4–20 mA or 1–+5 V DC operation via system configuration tools (FC 221 for module parameters, FC 223 for channel-specific settings).
• HART Communication Capability: Supports HART v5.4 instruments, enabling bi-directional digital communication over analog signal lines; handles up to 20 HART secondary variables (max 4 per channel) with typical update time of 2.5 seconds (max 8 seconds).
• High Precision & Stability: 12-bit resolution and 0.1% FSR accuracy ensure smooth, precise analog signal output for tight process control.
• Advanced Fault Protection: Built-in short-circuit current limiting and fast open-circuit detection enhance system safety and reduce downtime.
• Configurable Fail-Safe Behavior: Each channel can be programmed with default output values in the event of communication loss with the main controller.
• Group Isolation: Channel grouping provides electrical isolation, protecting the module and connected devices from ground loops and electrical interference.
• Robust Industrial Design: Operates reliably in extreme temperatures and harsh industrial environments, with compliance to international safety and EMC standards.

Application Scenarios

• Oil & Gas Industry: Control of valves, pumps, and flow regulators in upstream drilling, midstream pipelines, and downstream refining processes.
• Chemical & Petrochemical Processing: Precise control of reactors, distillation columns, and material handling systems in chemical manufacturing plants.
• Power Generation: Regulation of steam turbines, boiler controls, and generator excitation systems in thermal, hydro, and nuclear power plants.
• Metallurgy & Mining: Actuator control for smelting furnaces, material conveyors, and ore processing equipment.
• Water & Wastewater Treatment: Control of pumps, valves, and chemical dosing systems in municipal and industrial water treatment facilities.
• Pharmaceutical Manufacturing: Precise process control for mixing, heating, and packaging lines in regulated pharmaceutical production.
• Food & Beverage Processing: Regulation of temperature, pressure, and flow in food processing and packaging automation.
• Paper & Pulp Production: Control of drying cylinders, presses, and material feed systems in paper manufacturing plants.
