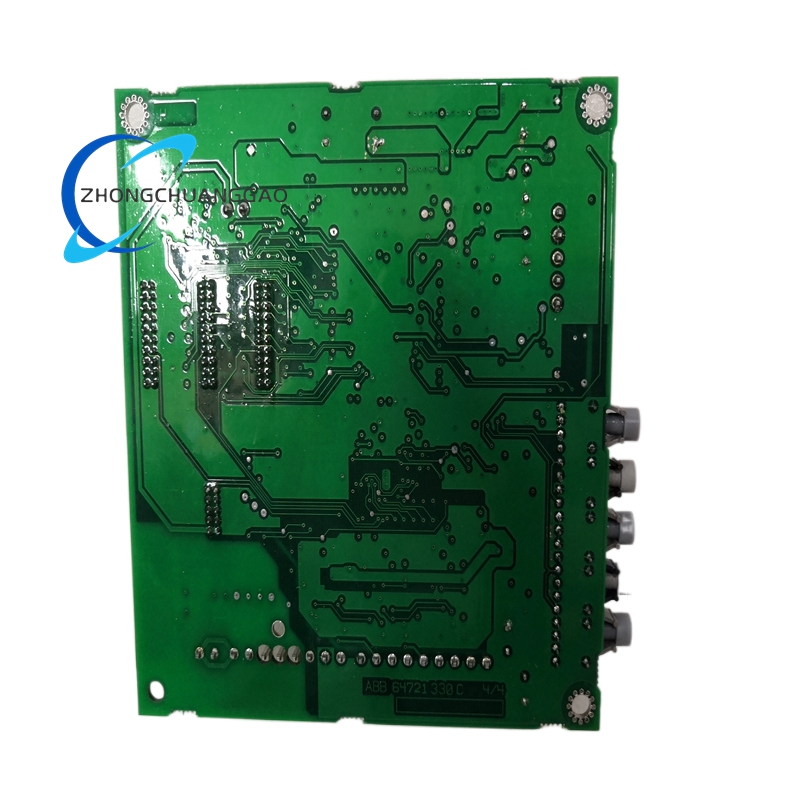

The ABB AINT-14C is a core interface component specifically designed for the ABB ACS800 series of variable frequency drives (VFDs) and inverters. It acts as a critical bridge, facilitating reliable communication, signal conversion, and isolation between the drive’s main power circuit and the low-voltage control circuit. This module ensures precise control, efficient power management, and stable operation of the drive system, even in demanding industrial environments. Engineered for high performance and durability, it is an essential part for maintaining the integrity and functionality of ACS800 drive systems.
Description
Technical Specifications
- Manufacturer: ABB
- Product Type: Main Circuit Interface Board
- Compatible Systems: ABB ACS800 Series Drives/Inverters
- Interface: 4-channel IGBT driver interface
- Analog Inputs: 4 channels, 0…10 V DC
- Signal Isolation: Galvanic isolation up to 500 V AC
- Resolution: 14-bit
- Response Time: < 1 ms
- Accuracy: ±0.1% of full-scale range
- Power Supply: 24 V DC (system-powered)
- Power Consumption: < 2 W
- Physical Dimensions (H x W x D): Approx. 130 mm x 125 mm x 20 mm
- Weight: 0.108 kg
- Cooling Method: Natural convection, synchronized with the host drive
- Operating Temperature: -20 °C to +60 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5% to 95% (non-condensing)
- Protection Rating: IP20
- Environmental Protection: Conformal coating for resistance to dust, humidity, and pollutants
- Certifications: CE, UL, CSA, RoHS compliant
Key Features & Benefits
- High-Performance Signal Isolation
- Provides robust galvanic isolation between high-voltage power circuits and low-voltage control systems, effectively preventing ground loops, electrical interference, and potential damage to control electronics.
- Ensures signal integrity and operational safety in high-power drive applications.
- Precise IGBT Control
- Features a dedicated 4-channel interface for driving Insulated Gate Bipolar Transistors (IGBTs), delivering precise and timely control signals for efficient power conversion.
- Optimizes switching performance to minimize power loss and maximize drive efficiency.
- Advanced Signal Processing
- Equipped with 14-bit high-resolution analog-to-digital conversion for accurate process signal acquisition.
- Fast response time (<1 ms) ensures real-time data capture and control responsiveness.
- Comprehensive Diagnostic & Status Monitoring
- On-board LED indicators provide clear visual feedback for module status, communication status, and fault conditions.
- Built-in diagnostic functions enable quick identification and troubleshooting of issues, reducing system downtime.
- Robust & Durable Design
- Industrial-grade construction with conformal coating protects against harsh conditions including vibration, temperature extremes, and corrosive atmospheres.
- Designed for long-term, reliable operation in continuous industrial environments.
- Plug-and-Play Modularity
- Designed as a standard plug-in module for the ACS800 drive backplane, allowing for easy installation, hot-swapping, and maintenance.
- Ensures seamless compatibility and straightforward replacement.
- Firmware Upgradability
- Supports firmware updates via the drive interface, allowing for performance enhancements, feature additions, and compatibility improvements throughout the product lifecycle.
Application Scenarios
The ABB AINT-14C is exclusively deployed as a core component within ABB ACS800 series drives, which are used across a vast range of industries requiring high-performance motor control:
- Oil & Gas Industry
- Controls pumps, compressors, and fans in drilling, extraction, refining, and pipeline transportation.
- Ensures stable and efficient operation in offshore platforms and onshore processing facilities.
- Marine & Vessels
- Manages propulsion systems, bow thrusters, and auxiliary machinery (pumps, winches) on commercial ships and offshore rigs.
- Provides reliable performance under challenging marine conditions.
- Metallurgy & Mining
- Drives conveyors, crushers, mills, and extruders in mining, mineral processing, and steel production.
- Handles heavy loads and continuous operation in rugged environments.
- Power Generation & Distribution
- Controls fans, pumps, and boiler feed systems in thermal, hydro, and wind power plants.
- Assists in precise power regulation and grid stability.
- Water & Wastewater Treatment
- Operates water supply pumps, filtration systems, and aeration blowers in treatment plants.
- Ensures energy-efficient and reliable process control.
- Cement & Paper Manufacturing
- Controls kilns, conveyors, mixers, and processing lines.
- Maintains consistent speed and torque for high-quality production.
- General Manufacturing
- Used in machine tools, conveyor systems, and assembly lines for precise speed and torque control.
- Improves process efficiency and product quality across various production lines.
