Product Short Description
Product Introduction

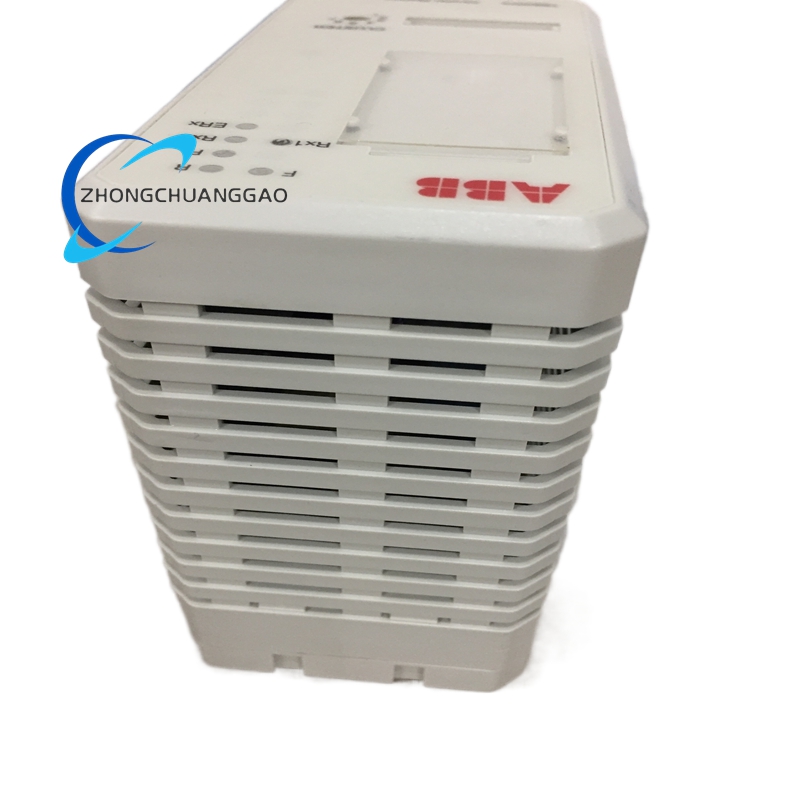

The ABB AI835A (3BSE051306R1) is a high-precision, 8-channel analog input module belonging to the ABB S800 I/O series. It is specifically engineered for the accurate acquisition and conversion of low-level millivolt (mV) signals and thermocouple temperature signals in industrial automation and process control systems. This module serves as a critical interface between field-mounted temperature sensors and ABB control platforms like System 800xA and Compact 800, ensuring reliable, real-time temperature monitoring and process regulation. Designed for industrial-grade performance, it features galvanic isolation, advanced signal filtering, and comprehensive diagnostic capabilities to maintain data integrity in electrically noisy and harsh environments.
Description
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Analog Input Module (Thermocouple/mV) |
| Number of Input Channels | 8 differential input channels |
| Input Signal Types | Thermocouples: B, C, D, E, J, K, L, N, R, S, T, U; Linear millivolt: -30 mV to +75 mV |
| Resolution | 15-bit Analog-to-Digital Converter (ADC) |
| Input Impedance | Greater than 1 MΩ |
| Cold-Junction Compensation | Channel 8 configurable as dedicated cold-junction compensation channel (4-wire Pt100 RTD) |
| Isolation | Group galvanic isolation between channels and system electronics |
| Common-Mode Rejection Ratio (CMRR) | 120 dB at 50/60 Hz |
| Signal Update Time | 50 Hz: 280 ms + 80 ms per active channel; 60 Hz: 250 ms + 70 ms per active channel |
| Input Protection | Open-circuit (wire-break) detection for all inputs |
| Compatible Termination Units (MTU) | TU810, TU812, TU814, TU818, TU830, TU833 |
| Power Requirements | 24 VDC (from S800 I/O backplane) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% – 95% Non-Condensing |
| Dimensions | Standard S800 I/O module form factor (approx. 10.5 x 7.5 x 4.5 cm) |
| Weight | Approximately 0.3 kg |
| Protection Rating | IP20 |
| Certifications | CE, ATEX (for hazardous areas), UL, cUL |
| System Compatibility | ABB Ability™ System 800xA, ABB Compact 800, AC500 PLC series |
| Communication | Compatible with PROFINET, EtherNet/IP via S800 I/O communication interfaces |
Functional Features
High-Precision Signal Acquisition
- Multi-Thermocouple Support: Offers full compatibility with all standard thermocouple types (B, C, D, E, J, K, L, N, R, S, T, U), covering a wide temperature spectrum from low-temperature processes to extreme high-heat industrial applications.
- Flexible Millivolt Input: Accepts linear millivolt signals ranging from -30 mV to +75 mV, enabling direct connection to other low-output sensors like pressure or strain gauges.
- Dedicated Cold-Junction Channel: Channel 8 can be configured as a precision cold-junction compensation (CJC) channel using a 4-wire Pt100 RTD, eliminating temperature measurement errors caused by variations in terminal block temperature.
- Superior Noise Immunity: Features a high common-mode rejection ratio (120 dB) and galvanic isolation to effectively suppress electrical interference, ground loops, and transient voltages, ensuring stable and accurate signal conversion.
Advanced Signal Processing & Diagnostics
- Open-Circuit Detection: Continuously monitors all input channels for wire breaks or sensor failures, triggering an immediate alarm to alert operators of faulty sensor connections.
- Configurable Filtering: Software-adjustable digital filters (0.1–10 seconds) suppress signal noise and smooth unstable measurements, optimizing data quality for dynamic or fluctuating processes.
- Individual Channel Configuration: Each of the 8 channels can be independently configured for specific thermocouple types, mV ranges, filtering, and alarm thresholds, providing maximum application flexibility.
- Real-Time Status Indicators: Integrated LED indicators provide instant visual feedback on module status, communication health, input status, and channel-specific alarms for quick on-site diagnostics.
Modular Design & System Integration
- S800 I/O Compatibility: Fully integrates with the ABB S800 I/O system, supporting hot-swappable installation for easy maintenance and system expansion without shutting down the entire control system.
- Wide System Compatibility: Seamlessly interfaces with ABB’s flagship control systems, including System 800xA and Compact 800, as well as AC500 PLCs, ensuring versatile deployment across various automation architectures.
- Standard Industrial Communication: Connects to industrial networks via PROFINET, EtherNet/IP, and other standard protocols, facilitating robust data exchange with PLCs, HMIs, and SCADA systems.
- Compact DIN-Rail Mount: Designed for standard DIN-rail mounting, the module’s compact form factor optimizes space utilization in control cabinets, supporting dense I/O configurations.
Industrial Reliability & Durability
- Harsh Environment Operation: Built to operate reliably within a temperature range of -20 °C to +60 °C and tolerate high humidity (5–95% non-condensing), suitable for challenging industrial environments.
- Robust Construction: Encased in a durable, IP20-rated housing that protects internal electronics from dust and physical contact, ensuring long-term performance in manufacturing and process settings.
- Comprehensive Safety Certifications: Certified for use in industrial and potentially explosive environments (ATEX), adhering to strict global safety standards for safe operation in hazardous locations.
- Long-Term Stability: Utilizes high-grade electronic components to ensure measurement accuracy and minimal signal drift over extended periods of continuous operation, reducing maintenance requirements.
Application Scenarios
Process Industry Temperature Monitoring
- Oil & Gas Refining: Monitors catalyst bed temperatures in reactors, furnace tube temperatures, and pipeline fluid temperatures to ensure efficient refining processes and prevent overheating.
- Chemical & Petrochemical Production: Provides precise temperature control for chemical reactors, distillation columns, and storage tanks, ensuring product quality and safety in corrosive and high-temperature environments.
- Pharmaceutical Manufacturing: Delivers highly accurate temperature measurement for bioreactors, sterilizers, and drying ovens, complying with strict regulatory requirements for batch consistency.
- Food & Beverage Processing: Monitors temperatures in cookers, pasteurizers, and freezers to maintain product safety, quality, and adherence to hygiene standards.
Power Generation & Energy
- Thermal Power Plants: Measures temperatures in boilers, steam turbines, generators, and exhaust systems to optimize efficiency and protect critical equipment from thermal damage.
- Wind Turbines: Monitors gearbox bearing temperatures, generator winding temperatures, and converter temperatures to enable predictive maintenance and prevent costly failures.
- Solar Power Systems: Tracks temperature variations in solar panels, inverters, and battery storage systems to maximize energy conversion efficiency.
Manufacturing & Metal Processing
- Steel & Metal Production: Monitors temperatures in blast furnaces, rolling mills, annealing lines, and forging operations to control material properties and ensure product quality.
- Automotive Manufacturing: Regulates temperatures in welding, heat treatment, and paint curing processes to maintain material integrity and finish quality.
- Plastics & Rubber: Controls temperatures in extruders, molding machines, and curing ovens for consistent material flow and product formation.
HVAC & Building Automation
- Commercial & Industrial HVAC Systems: Monitors supply/return air temperatures, chiller evaporator/condenser temperatures, and boiler water temperatures for efficient climate control.
- Data Centers: Provides precise temperature and cold aisle monitoring to maintain optimal operating conditions for servers and IT equipment.
General Industrial Equipment
- Pumps, Compressors & Motors: Monitors bearing and winding temperatures to detect early signs of failure and enable predictive maintenance programs.
- Furnaces & Ovens: Delivers closed-loop temperature control for industrial heat-treating furnaces, kilns, and laboratory ovens.
- Test & Measurement Rigs: Acquires high-resolution temperature data from sensors in product testing and research and development environments.
