Product Short Description
Product Introduction
Description
Technical Specifications
| Parameter | Detail |
|---|---|

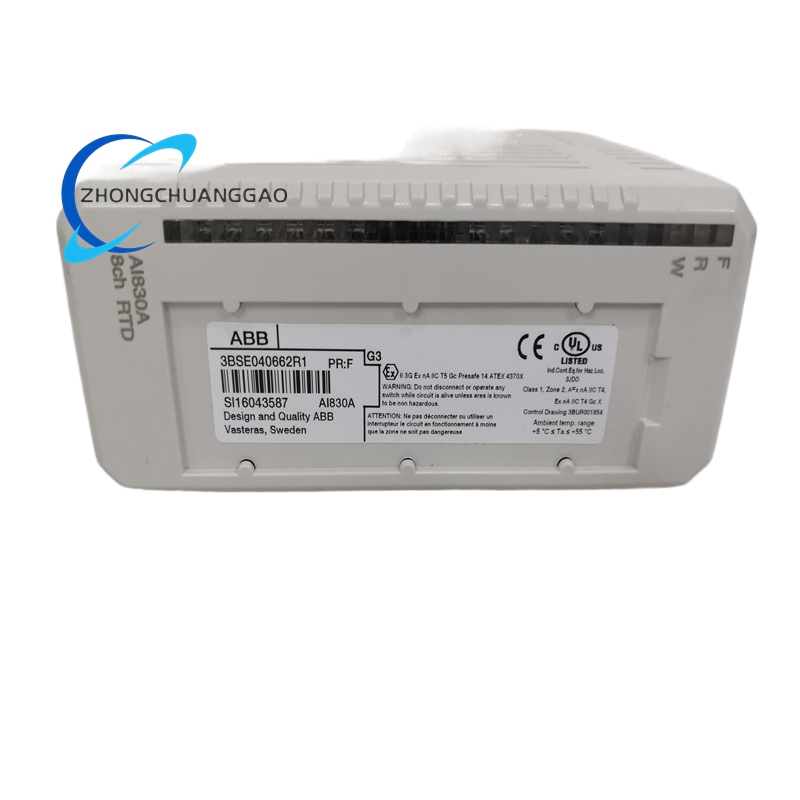

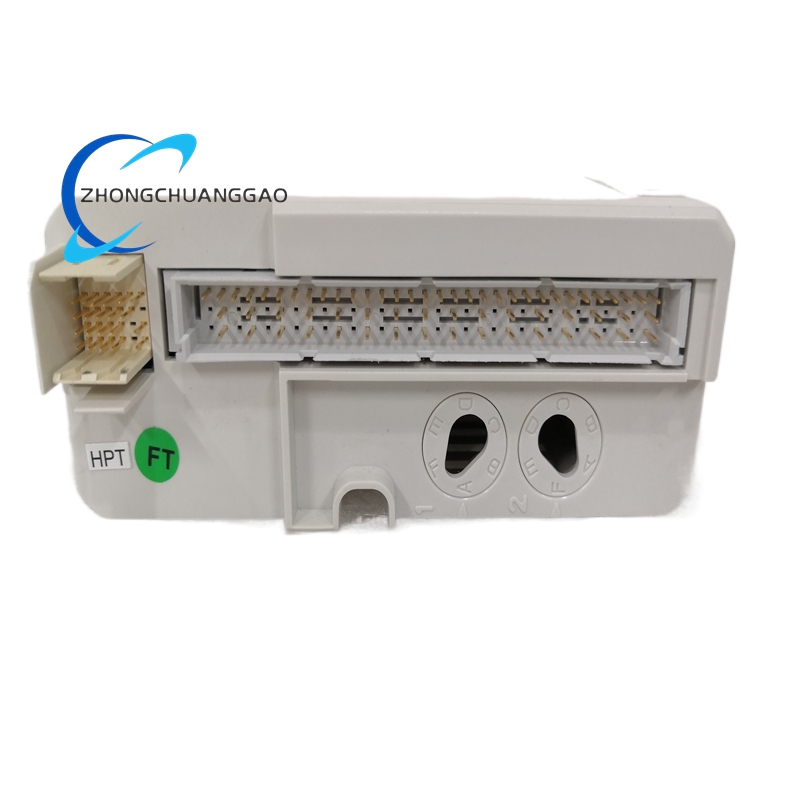

| Product Type | RTD Analog Input Module |
| Compatible Platform | ABB S800 I/O System, ABB Ability™ System 800xA® |
| Number of Channels | 8 electrically isolated input channels |
| Input Sensor Type | 3-wire RTD: Pt100, Cu10, Ni100, Ni120, and resistive sensors/potentiometers |
| Measurement Resolution | 14-bit Analog-to-Digital Converter (ADC) |
| Measurement Accuracy | ±0.1% of full scale (typical), ±0.2°C for standard Pt100 inputs |
| Temperature Ranges | – Pt100: -200°C to +850°C
– Cu10: -50°C to +180°C – Ni100/Ni120: -60°C to +300°C |
| Input Connection | 3-wire configuration (lead resistance compensation) |
| Update Cycle Time | 150 + 95 ms per active channel (scalable with channel count) |
| Signal Isolation | 50 V rated insulation voltage (group isolation from ground) |
| Noise Immunity | CMRR > 120 dB (50/60 Hz), NMRR > 60 dB (50/60 Hz) |
| Power Supply | 24 V DC (via Modulebus or external) |
| Power Consumption | 1.6 W (typical), 5.5 W (maximum) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5 – 95% (non-condensing) |
| Dimensions (W × H × D) | 45 mm × 119 mm × 102 mm (111 mm with connector) |
| Weight | Approx. 0.22 kg |
| Mounting | Standard DIN-rail mounting (35 mm) |
| Diagnostic Indicators | Front-panel LEDs: Run (R), Fault (F), Warning (W) |
| Certifications | CE, UL, CSA, ATEX, IECEx (for hazardous areas) |
Key Functional Features
-
8-Channel Multi-Sensor Compatibility
Supports eight independent input channels, each configurable for common RTD types including Pt100, Cu10, Ni100, and Ni120. This versatility allows deployment across diverse temperature monitoring scenarios with mixed sensor types.
-
3-Wire Connection with Lead Resistance Compensation
Utilizes a 3-wire configuration to eliminate errors caused by resistance in long connecting cables. This feature ensures measurement accuracy remains consistent, even over extended cable runs in large industrial plants.
-
High-Precision Signal Conversion
Equipped with a 14-bit ADC for high-resolution data conversion. The module performs on-board linearization and direct conversion of resistance values to engineering units (°C or °F), reducing processing load on the main controller.
-
Per-Channel Individual Configuration
Each channel offers independent software configuration for sensor type, temperature range, filtering, and alarm limits. This granular control maximizes flexibility and optimizes performance for specific process requirements.
-
Advanced Diagnostic & Fault Detection
Integrates comprehensive self-diagnostics for all inputs, actively monitoring for open-circuit, short-circuit, and grounded sensor conditions. Faults are signaled via LEDs and reported to the control system, enabling predictive maintenance and rapid troubleshooting.
-
Industrial-Grade Noise Rejection
Features exceptional Common-Mode Rejection Ratio (CMRR) and Normal-Mode Rejection Ratio (NMRR) at 50/60 Hz, effectively filtering out electromagnetic interference (EMI) from industrial power networks and ensuring stable, clean signal acquisition.
-
Robust Isolation & Safety
Provides galvanic group isolation between input channels and the Modulebus. This protects the control system from electrical transients, prevents ground loops, and enhances operational safety in complex industrial environments.
-
Configurable Digital Filtering
Offers software-selectable digital filters, including a notch filter for 50 Hz or 60 Hz. This suppresses periodic electrical noise, producing smooth, stable temperature readings critical for precise process control.
-
Hot-Swappable Design
Designed for safe installation and removal while the system is powered on (hot-swappable). This minimizes process downtime during maintenance, module replacement, or system expansion.
Application Scenarios
-
Oil & Gas Processing
Monitors temperature in pipelines, reactors, distillation columns, and storage tanks. Ensures safe operation and product quality control in upstream, midstream, and downstream facilities.
-
Petrochemical & Chemical Manufacturing
Provides accurate temperature measurement for catalytic reactions, mixing vessels, and extrusion processes. Critical for maintaining reaction kinetics, ensuring safety, and complying with environmental regulations.
-
Power Generation (Thermal & Nuclear)
Used in boiler systems, steam turbines, generators, and cooling circuits to monitor and control temperatures, ensuring efficient and safe power plant operation.
-
Metallurgy & Steel Manufacturing
Monitors temperatures in furnaces, rolling mills, smelters, and heat treatment processes, essential for controlling material properties and production quality.
-
Water & Wastewater Treatment
Regulates and monitors temperature in aeration basins, digesters, and chemical dosing systems to optimize biological processes and treatment efficiency.
-
Food & Beverage Processing
Ensures precise temperature control during pasteurization, cooking, fermentation, and storage, complying with strict hygiene and quality standards.
-
Pharmaceutical & Biotechnology
Delivers high-accuracy temperature monitoring for reactors, centrifuges, and cleanroom environments, adhering to stringent Good Manufacturing Practice (GMP) requirements.
-
Mining & Mineral Processing
Operates in harsh environments to monitor temperatures in crushers, mills, flotation cells, and conveyor systems, protecting equipment and optimizing production.
-
HVAC & Building Automation
Controls and monitors temperature in large-scale commercial heating, ventilation, and air conditioning systems for energy efficiency and occupant comfort.
-
Marine & Offshore Applications
Provides reliable temperature monitoring for shipboard engines, propulsion systems, and offshore platform processing equipment in high-humidity, corrosive environments.
