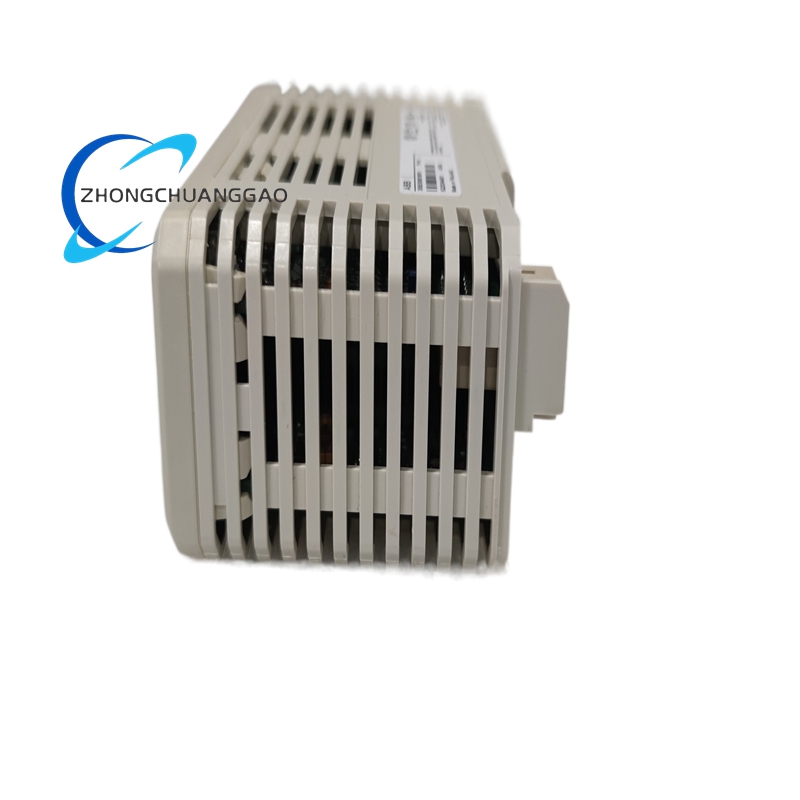

ABB AI830–8‑Channel RTD Analog Input Module

Description

Technical Specifications

Core Input Parameters

• Number of Channels: 8 independent 3‑wire RTD/resistive input channels
• Supported Sensors: Pt100, Cu10, Ni100, Ni120 RTDs, and resistive potentiometers
• Connection Type: 3‑wire connection for lead resistance compensation
• A/D Resolution: 14‑bit
• Temperature Conversion: On‑board linearization and conversion to Celsius or Fahrenheit
• Channel Configuration: Each channel individually configurable for sensor type and filtering
• Filtering: Selectable 50 Hz/60 Hz notch filter for mains frequency noise suppression
• Isolation: Galvanic isolation between input channels and system bus (50 V rated insulation voltage)

Electrical & Protection

• Input Monitoring: Detects open‑circuit, short‑circuit, and grounded sensor faults on all channels
• Common‑Mode Rejection Ratio (CMRR): High noise immunity for stable measurement
• Maximum Field Cable Length: Supports long‑distance sensor wiring in industrial plants

Power & Mechanical

• Operating Voltage: 24 V DC (nominal)
• Power Consumption: Low power draw for energy‑efficient operation
• Dimensions: Compact form factor for S800 I/O subsystem mounting
• Weight: Approximately 0.22–0.24 kg
• Mounting: Standard DIN‑rail or rack mounting; compatible with termination units TU810, TU812, TU814, TU830

Environmental & Certifications

• Operating Temperature: 0°C to +55°C
• Storage Temperature: -40°C to +70°C
• Humidity: 5%–95% RH, non‑condensing
• Protection Class: IP20
• Certifications: CE, UL, CSA for industrial compliance

Compatibility

• Compatible Systems: ABB AC 800M, 800xA, Symphony Plus controllers; S800 I/O subsystems
• Configuration: Software‑configurable via ABB Control Builder; no physical jumpers required
• Communication: Integrates with PROFIBUS DP, EtherNet/IP, and other standard industrial protocols

Key Features

• 8 High‑Precision RTD Channels: Enables simultaneous temperature measurement from up to 8 sensors with 3‑wire connection, eliminating lead resistance errors.
• On‑Board Linearization & Conversion: Performs direct conversion of RTD resistance to temperature values (°C/°F), reducing controller processing load.
• Individual Channel Configuration: Each channel supports independent sensor selection and filtering settings for flexible application adaptation.
• Advanced Fault Detection: Monitors for open circuits, short circuits, and grounded sensors, enabling proactive maintenance and minimizing downtime.
• Mains Frequency Filtering: Selectable 50/60 Hz notch filter effectively suppresses industrial electrical noise.
• Galvanic Isolation: Provides 50 V isolation to protect against ground loops and electrical interference.
• Robust Industrial Design: Operates reliably in harsh environments with wide temperature and humidity ranges.
• Seamless System Integration: Direct compatibility with ABB’s leading control systems ensures easy deployment in new and existing automation architectures.
• Compact & Lightweight: Space‑saving design for efficient control cabinet installation.
• Long‑Term Stability: Delivers consistent measurement performance over extended operational periods.
