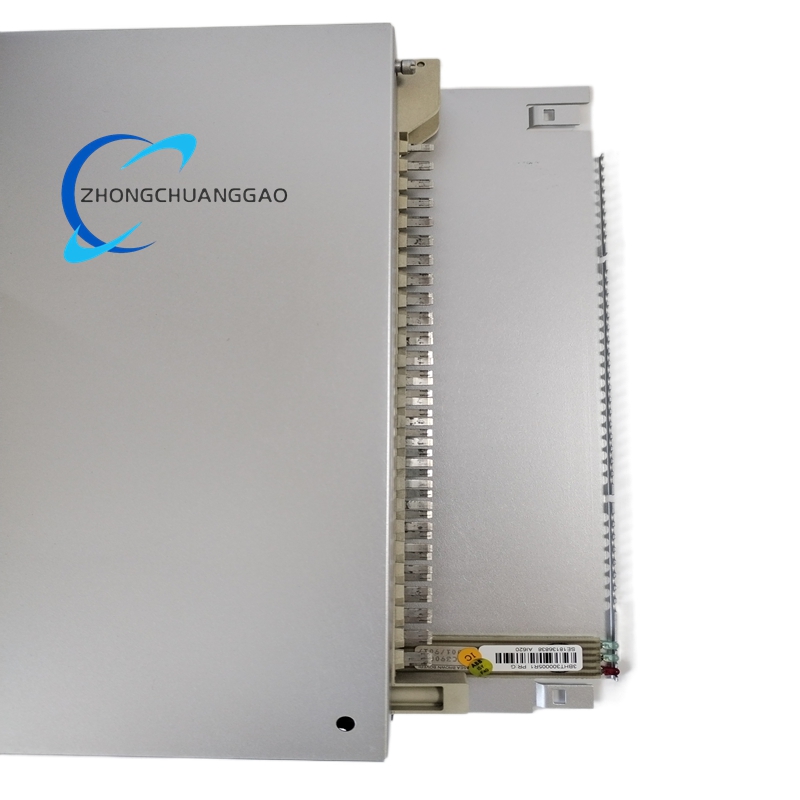

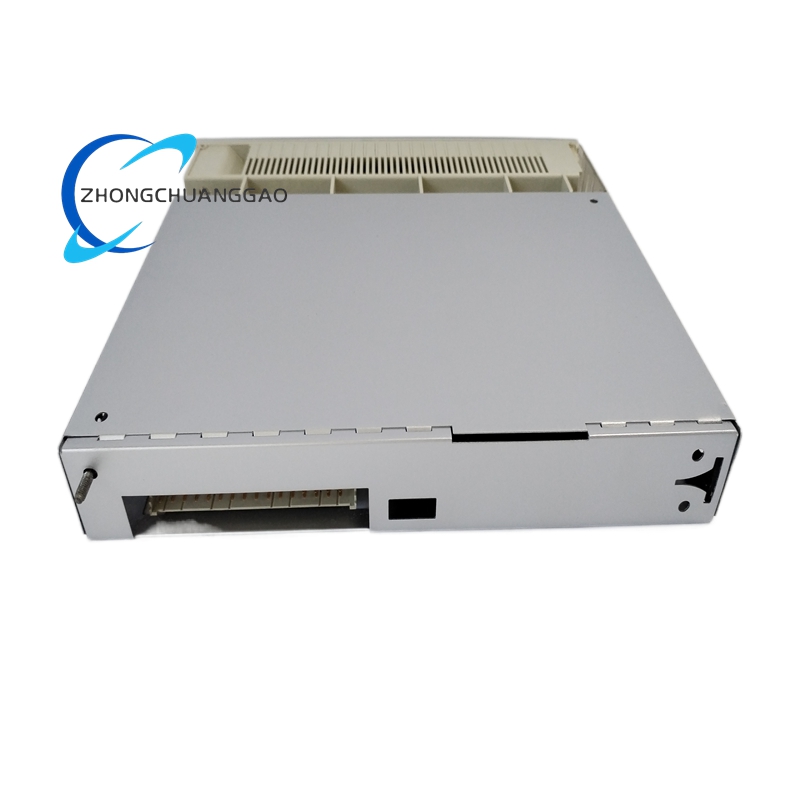

ABB AI620–8‑Channel Analog Input Module with HART

Description

Technical Specifications

Core Input Parameters

• Number of Channels: 8 independent analog input channels
• Supported Signal Types:
  • Current: 4–20 mA (standard), 0–20 mA
  • Voltage: 0–10 V, ±10 V
• HART Protocol: Fully compliant with HART 5/6/7 for bidirectional digital communication with field devices
• A/D Resolution: 16‑bit
• Measurement Accuracy: ±0.1% of full scale (calibrated at 25°C)
• Sampling Rate: 100 Hz per channel (synchronous scanning)
• Input Isolation: Channel‑to‑bus galvanic isolation (2.5 kV AC)
• Overload Protection: Overvoltage, overcurrent, and short‑circuit protection for all channels

Power & Electrical

• Operating Voltage: 24 V DC (nominal, ±10%)
• Power Consumption: ≤ 3 W
• Isolation Voltage: 2.5 kV AC (channel‑to‑system bus)

Mechanical & Environmental

• Dimensions: 211 mm × 168 mm × 43 mm (W × H × D)
• Weight: 1.28 kg
• Mounting: Standard rack‑mounting for Advant OCS / AC 800M I/O subsystems
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% RH, non‑condensing
• Protection Class: IP20
• Certifications: CE, UL, CSA, ATEX (for hazardous industrial areas)

Communication & Compatibility

• Primary Protocols: PROFIBUS DP, EtherNet/IP
• Secondary Protocol: HART (on each analog input channel)
• Compatible Systems: ABB Advant OCS, AC 800M controllers
• Configuration: Software‑configurable via ABB Control Builder software; no physical jumpers required

Key Features

• 8 Independent Isolated Channels: Enables simultaneous acquisition of up to 8 analog signals with full galvanic isolation, eliminating ground loops and electrical interference.
• Integrated HART Communication: Supports HART 5/6/7 for real‑time device diagnostics, calibration, and parameter adjustment without disrupting analog signal transmission.
• High‑Precision Conversion: 16‑bit resolution and ±0.1% FS accuracy ensure reliable measurement of critical process variables in demanding industrial environments.
• Wide Signal Compatibility: Accepts 4–20 mA, 0–20 mA, 0–10 V, and ±10 V signals, supporting a broad range of industrial sensors and transmitters.
• Robust Industrial Design: Operates in extreme temperatures and high humidity, with hazardous‑area certifications for use in oil & gas, chemical, and mining applications.
• Fast Sampling & Update: 100 Hz per‑channel sampling rate provides real‑time process data for dynamic control and monitoring.
• Advanced Diagnostics: Built‑in channel status monitoring, fault detection, and HART‑enabled device health reporting for proactive maintenance and reduced downtime.
• Seamless System Integration: Direct compatibility with ABB Advant OCS and AC 800M systems, with support for standard industrial communication protocols.
• Software Configuration: Fully configurable via ABB Control Builder, simplifying setup, calibration, and diagnostics without manual hardware adjustments.

Application Scenarios

• Oil & Gas Processing: Monitoring pressure, temperature, flow, and level in refineries, pipelines, and offshore platforms.
• Chemical & Petrochemical Plants: Precise measurement of process variables in reactors, distillation columns, and storage facilities.
• Power Generation: Boiler, turbine, and generator monitoring in thermal, combined‑cycle, and renewable power plants.
• Metallurgy & Mining: High‑temperature and pressure monitoring in smelters, furnaces, and mineral processing operations.
• Water & Wastewater Treatment: Acquisition of level, flow, and pressure signals in treatment plants and distribution networks.
• Pharmaceutical Manufacturing: Strict process variable monitoring for batch reactors, sterilization, and cleanroom environments.
• Food & Beverage Processing: Temperature, pressure, and flow control in cooking, mixing, and packaging lines.
• Pulp & Paper Production: Dryer, press, and reactor monitoring in paper manufacturing processes.
• Building Automation: HVAC system monitoring, including temperature, pressure, and flow in large commercial and industrial facilities.
