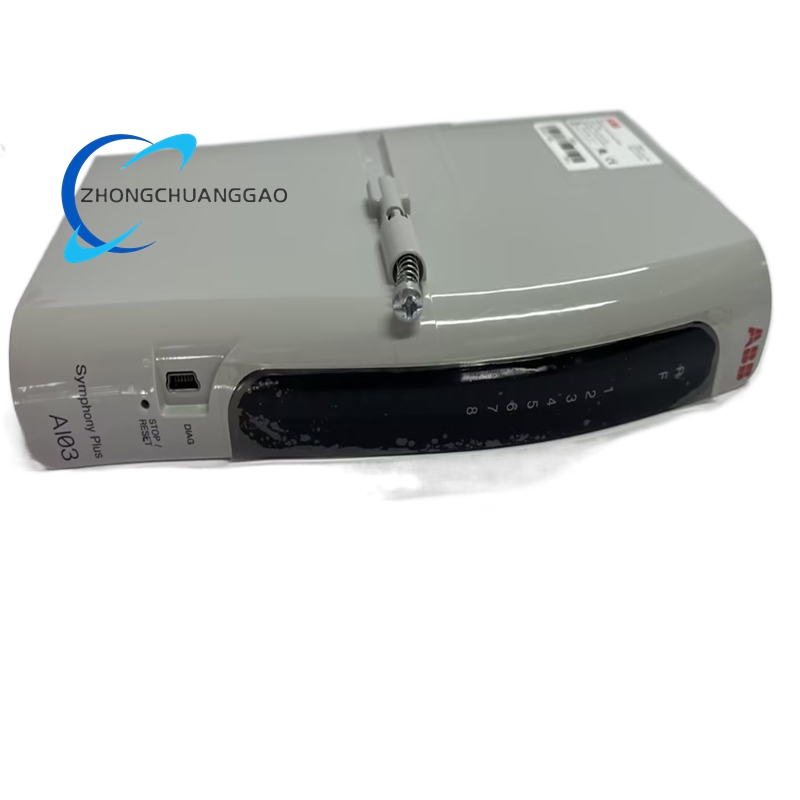

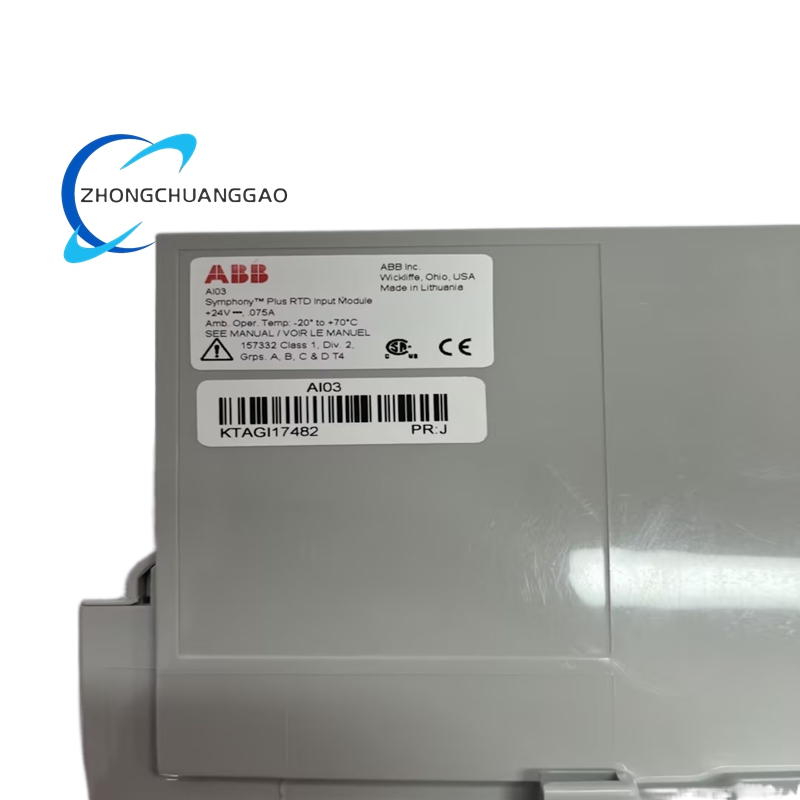

ABB AI03 RTD Analog Input Module

Description

Technical Specifications

Core Channel & Signal Parameters

• Number of Channels: 8 independent, group-isolated RTD input channels
• Supported RTD Types: Pt100 (US Lab, US Industrial, European), Ni120, Cu53 (Chinese standard)
• Wiring Configurations: 2-wire, 3-wire, 4-wire (per-channel configurable)
• Input Resistance Range: 0–500 Ω (Full Scale Range, FSR)
• A/D Resolution: 16-bit with polarity (high-resolution conversion)
• A/D Conversion Architecture: 4 dedicated A/D converters, each serving 2 channels
• Update Rate: Complete scan of all 8 channels in 450 ms
• Measurement Accuracy: ±0.1% of FSR (0–500 Ω)
• Temperature Drift: Maximum ±0.003% per °C on measurement accuracy
• Input Impedance: >10 MΩ (minimizes signal loading on RTD sensors)

Power & Isolation

• Module Power Supply: 24 VDC ±10%, typical current 68 mA, maximum 76 mA
• Isolation Voltage: 1500 VAC (1-minute withstand) between field signals and logic circuits; 1×8 group isolation
• Overvoltage Category: Category I (per EN 61010-1)
• Cold Junction Compensation: Requires HBS01-CJC base unit (integrated RTD for CJC)

Protection & Diagnostics

• Open-Circuit Detection: Detects broken RTD wires in <5 seconds
• Short-Circuit Protection: Current-limiting circuitry prevents module damage
• Noise Rejection: Common-mode rejection ratio (CMRR) >90 dB; normal-mode rejection >70 dB
• Status Indicators: Front-panel LED for module health (Run/Fault)
• Diagnostics: Local mini-USB port for on-site setup; remote diagnostics via HN800 bus
• Fault Logging: Stores historical fault data for troubleshooting

Mechanical & Environmental

• Dimensions (H×W×D): 190 mm × 27 mm × 106 mm
• Weight: 226 g (compact, lightweight design)
• Mounting: DIN-rail mountable (horizontal row or vertical column in SD Series racks)
• Enclosure Rating: IP20 (indoor, dust-protected)
• Operating Temperature: -40°C to +70°C (extreme industrial environment tolerance)
• Storage Temperature: -40°C to +85°C
• Humidity: 20%–95% RH (non-condensing at 40°C)
• Altitude: Operational up to 3,048 m; storage up to 12,192 m
• Vibration/Shock: Compliant with IEC 60068 and MIL-STD-810G standards
• Circuit Board Coating: Optional G3-grade coating for harsh, corrosive environmentsABB

Reliability & Compliance

• MTBF: >130,000 hours (per MIL-HDBK-217-FN2)
• MTTR: 1 hour (hot-swappable design for fast replacement)
• Certifications: CE (EMC/LVD), CSA (Class I Div 2, non-hazardous), RoHS, WEEE, ISA S71.04 G1/G3
• Field Cable Length: Up to 600 meters (supports long-distance sensor wiring)

Key Features

Specialized RTD Signal Processing

• Multi-Type RTD Support: Compatible with all major industrial RTD standards, eliminating sensor compatibility issues
• Flexible Wiring: Per-channel selection of 2/3/4-wire configurations to optimize accuracy for different installation setups
• High-Resolution Conversion: 16-bit A/D delivers precise temperature data for tight process control
• Fast Scan Cycle: 450 ms update rate ensures real-time temperature monitoring for dynamic processes

Robust Isolation & Signal Integrity

• Galvanic Group Isolation: 1500 V isolation protects the control system from field-side electrical faults and transient voltages
• Superior Noise Immunity: High CMRR filters industrial electromagnetic interference, ensuring stable measurements in noisy environments
• Open/Short Detection: Built-in fault detection alerts operators to sensor or wiring issues, preventing process disruptions

Seamless System Integration

• Symphony Plus Compatibility: Direct integration with Symphony Plus DCS via function codes FC221/FC222 for configuration
• DIN-Rail Mounting: Compact 27 mm width optimizes rack space for high-density I/O installations
• Hot-Swappable Design: Allows module replacement without shutting down the control system, minimizing downtime
• CJC Base Compatibility: Works with HBS01-CJC base for accurate cold junction compensation, critical for RTD temperature measurement

Industrial-Grade Reliability

• Extreme Environment Operation: Wide temperature range and corrosion-resistant coating options for harsh industrial sites
• Long Service Life: High MTBF and robust construction ensure continuous operation in critical applications
• Global Certifications: Meets international safety and EMC standards for worldwide deployment

Application Scenarios

Power Generation

• Thermal Power Plants: Monitoring boiler tube temperatures, steam header temperatures, turbine bearing temperatures, and generator winding temperatures
• Combined Cycle Plants: Measuring gas turbine exhaust temperatures, heat recovery steam generator (HRSG) tube temperatures, and condenser temperatures
• Hydroelectric Plants: Monitoring turbine guide bearing temperatures, generator stator temperatures, and penstock fluid temperatures
• Renewable Energy: Tracking wind turbine gearbox and generator temperatures, solar inverter component temperatures, and battery storage system temperatures

Oil & Gas Industry

• Upstream Production: Measuring wellhead fluid temperatures, pipeline temperatures, and separator vessel temperatures
• Refining Processes: Monitoring distillation column tray temperatures, reactor bed temperatures, and heat exchanger outlet temperatures
• LNG Facilities: Controlling cryogenic process temperatures, storage tank temperatures, and liquefaction unit temperatures
• Pipeline Networks: Real-time temperature monitoring for crude oil and natural gas transmission lines

Chemical & Pharmaceutical Processing

• Chemical Manufacturing: Measuring reactor vessel temperatures, distillation column temperatures, and heat exchanger process temperatures
• Pharmaceutical Production: Precise temperature control for batch reactors, fermentation tanks, and cleanroom HVAC systems
• Fertilizer Plants: Monitoring ammonia synthesis reactor temperatures, gas preheater temperatures, and granulation unit temperatures
• Specialty Chemicals: Tracking corrosive process fluid temperatures, polymerization reactor temperatures, and storage tank temperatures

Water & Wastewater Treatment

• Municipal Water Supply: Monitoring reservoir water temperatures, pump station fluid temperatures, and distribution pipeline temperatures
• Wastewater Treatment: Controlling aeration basin temperatures, sludge digestion tank temperatures, and effluent treatment temperatures
• Desalination Plants: Measuring reverse osmosis membrane temperatures, brine heater temperatures, and product water temperatures
• Industrial Cooling Systems: Monitoring cooling tower water temperatures, chiller evaporator temperatures, and process fluid return temperatures

Mining & Mineral Processing

• Mineral Extraction: Tracking conveyor drive motor temperatures, crusher bearing temperatures, and slurry pipeline temperatures
• Ore Processing: Measuring grinding mill bearing temperatures, flotation cell pulp temperatures, and leachate process temperatures
• Tailings Management: Monitoring tailings pond water temperatures and pipeline fluid temperatures
• Mine Ventilation: Controlling underground ventilation fan motor temperatures and air duct temperatures

Food & Beverage Manufacturing

• Processing Lines: Measuring mixing tank temperatures, pasteurization unit temperatures, and cooking vessel temperatures
• Beverage Production: Controlling bottling line fluid temperatures, fermentation tank temperatures, and storage cellar temperatures
• Dairy Processing: Monitoring pasteurizer temperatures, homogenizer temperatures, and milk storage tank temperatures
• Food Packaging: Tracking packaging machine sealing bar temperatures and conveyor belt drive motor temperatures

Marine & Offshore

• Shipboard Systems: Monitoring engine room machinery temperatures, ballast tank fluid temperatures, and cargo hold temperatures
• Offshore Platforms: Measuring process pump motor temperatures, separator vessel temperatures, and utility system temperatures
• FPSO Vessels: Controlling crude oil storage tank temperatures, transfer line temperatures, and gas processing unit temperatures
