Product Short Description
Product Introduction

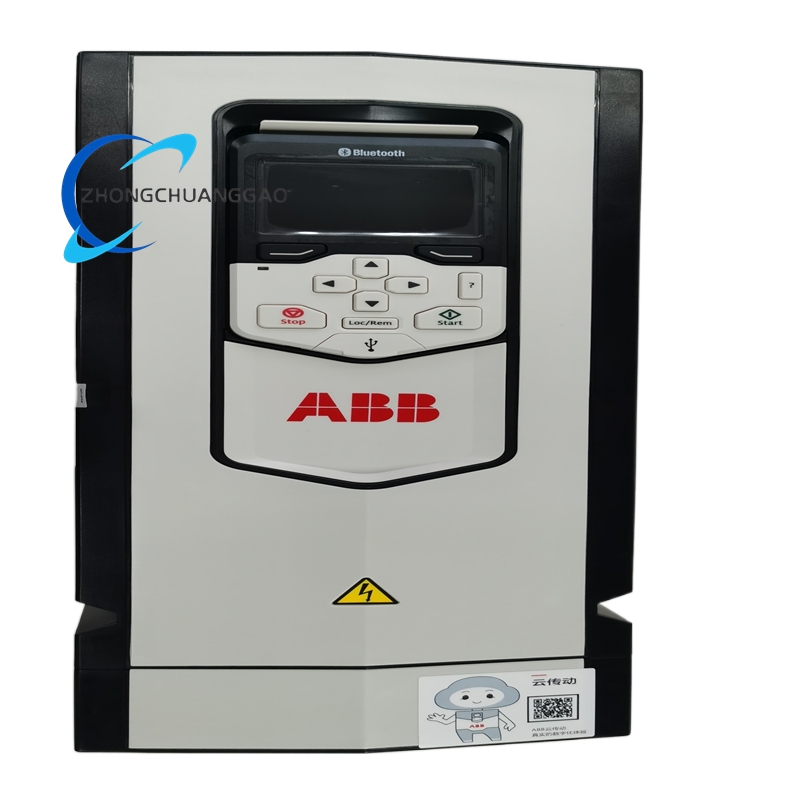

The ABB ACS880-01-025A-3+E200 is a high‑performance, wall‑mounted single AC drive from ABB’s ACS880 all‑compatible industrial drive portfolio. It is engineered for precise speed and torque control of three‑phase AC motors in demanding industrial environmentsABB. This model delivers 11 kW of rated power with a 25 A output current, operating on a 380–415 V three‑phase input. The +E200 option denotes an integrated EMC filter, ensuring compliance with electromagnetic compatibility standards and minimizing electrical interference. Built on ABB’s common drive architecture and featuring Direct Torque Control (DTC) as standard, it offers exceptional compatibility, reliability, and flexibility for a wide spectrum of motor‑driven applications.
Description
Technical Specifications
Core Electrical Parameters

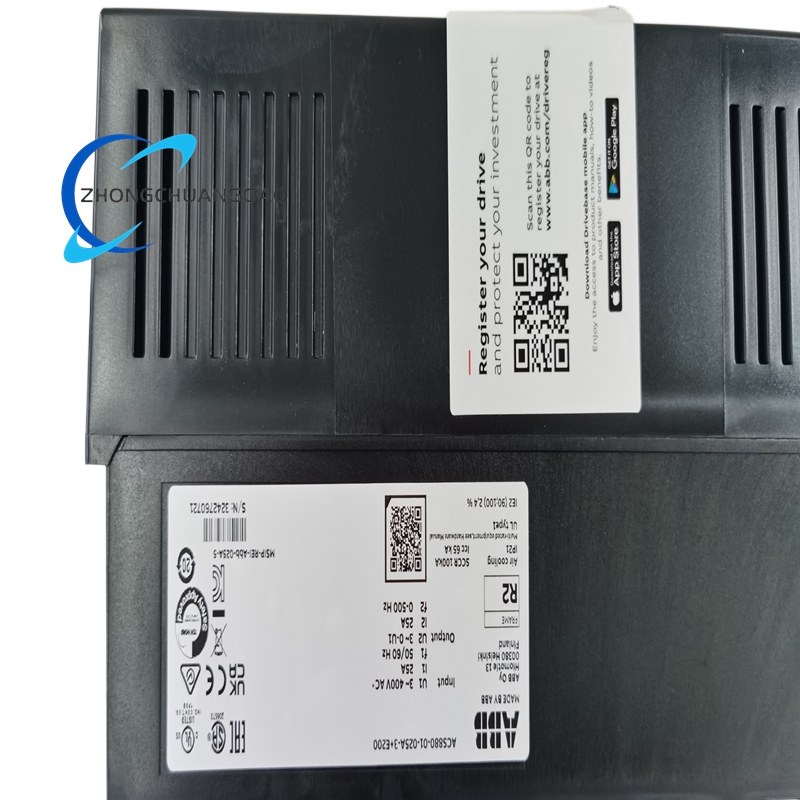

- Model: ACS880-01-025A-3+E200
- Series: ACS880 (Single Drive, Wall‑Mounted)
- Frame Size: R2
- Input Voltage: 380–415 V AC, three‑phase, 50/60 Hz (±10% tolerance)
- Rated Output Power (Pn): 11 kW (Light‑Overload); 7.5 kW (Heavy‑Duty)
- Rated Output Current (In): 25 A (Normal Use); 24 A (Light‑Overload)
- Output Frequency: 0–500 Hz (Standard); 0–1000 Hz (Optional High‑Frequency)
- Apparent Power Output: 17 kV·A
- Efficiency: Compliant with IE2 efficiency standards
- Standby Power Loss: 23 W
- Control Technology: Direct Torque Control (DTC) – StandardABB
- Protection Class: IP55 (with E200 EMC filter)

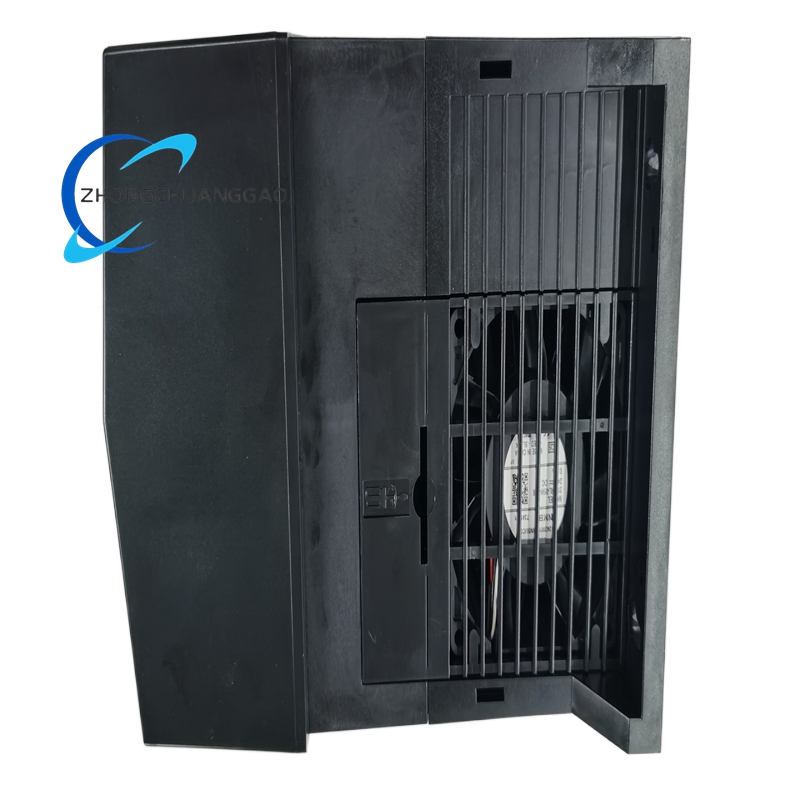

- Cooling Method: Forced air cooling
Communication & Interfaces
- Built‑in Ports: 1 × RS‑485, 1 × USB (for configuration and diagnostics)
- Supported Protocols: Modbus RTU, Modbus TCP/IP, PROFIBUS DP, EtherCAT, PROFINET IO, DeviceNet, CANopen
- I/O Configuration: 2 × Analog Inputs, 1 × Analog Output, Digital Inputs/Outputs (configurable)
- Encoder Support: Compatible with incremental encoders and resolvers for closed‑loop controlABB
Mechanical & Environmental
- Dimensions (W×H×D): 155 mm × 409 mm × 249 mm
- Weight: 8 kg
- Mounting: Wall‑mounted
- Operating Temperature: -10°C to +50°C (derated above 40°C)
- Storage Temperature: -40°C to +70°C
- Humidity: 5%–95% RH, non‑condensing
- Operating Altitude: Up to 4000 m above sea level (derated above 1000 m)
- Sound Pressure Level: 59 dB(A) at rated load
- Standards Compliance: IEC 61800‑7, EN 61800‑3, CE, UL, CSA, CCC, RoHS
Safety Features
- Safe Torque Off (STO): Category 3, PL d (EN ISO 13849‑1), SIL 2 (IEC 61508) – StandardABB
- Optional Safety Functions: Safe Stop 1 (SS1), Safe Stop 2 (SS2), Safe Speed Monitor (SSM)
Key Features
- Direct Torque Control (DTC): Provides instantaneous, high‑precision torque and speed control with minimal response time, suitable for all AC motor types (induction, permanent magnet, synchronous reluctance)ABB.
- Integrated EMC Filter (+E200): Built‑in EMC filter ensures compliance with strict EMC regulations, reduces electrical noise, and eliminates the need for external filtering components.
- High Overload Capacity: Delivers 150% of rated torque at 0 Hz for reliable heavy‑load starting and operation.
- Wide Operating Voltage: Tolerates ±10% voltage fluctuations, ensuring stable performance in unstable power grids.
- Flexible Control Modes: Supports V/F control, sensorless vector control, closed‑loop vector control, and direct torque control for diverse application requirements.
- Built‑in PID Controller: Enables direct process control (e.g., pressure, flow, level) without external PLCs.
- Energy Efficiency: Optimizes motor performance and reduces energy consumption, especially in pump, fan, and compressor applications.
- User‑Friendly Interface: Intuitive control panel with clear LCD display and USB port for fast programming, parameter copying, and diagnosticsABB.
- Comprehensive Protection: Includes overvoltage, undervoltage, overcurrent, overtemperature, short‑circuit, and earth‑fault protection for drive and motor safety.
- Easy Maintenance: Modular design, accessible components, and advanced diagnostic tools minimize downtime and simplify serviceABB.
- Global Compatibility: Adheres to international standards and supports major fieldbus protocols for seamless integration into global automation systems.
Application Scenarios
- Pumps & Fans: Precise control of water pumps, ventilation fans, and blowers in water treatment, HVAC, and building automation systems for energy optimization.
- Conveyors & Material Handling: Speed and torque control for belt conveyors, roller conveyors, and elevators in manufacturing, logistics, and mining operations.
- Compressors & Blowers: Efficient regulation of industrial air compressors, vacuum pumps, and process blowers in food & beverage, pharmaceutical, and chemical plants.
- Mixers & Agitators: Constant torque control for industrial mixers, agitators, and kneaders in food processing, chemical, and wastewater treatment facilities.
- Extruders & Processing Machinery: High‑precision control for plastic extruders, rubber processing, and food extrusion lines requiring consistent speed and torque.
- Cranes & Hoists: Smooth and safe control for overhead cranes, winches, and hoisting equipment in ports, shipyards, and manufacturing plants.
- Industrial Machinery: Integration with machine tools, printing presses, packaging machines, and textile machinery for accurate motion control.
- HVAC & Building Automation: Control of chillers, air handling units, and large ventilation systems in commercial and industrial buildings.
- Water & Wastewater Treatment: Regulation of pumps, valves, and aeration systems in water purification and sewage treatment plants.
- Marine & Offshore: Certified for marine applications, controlling pumps, fans, and auxiliary machinery on ships and offshore platforms.
