Product Short Description
Product Introduction

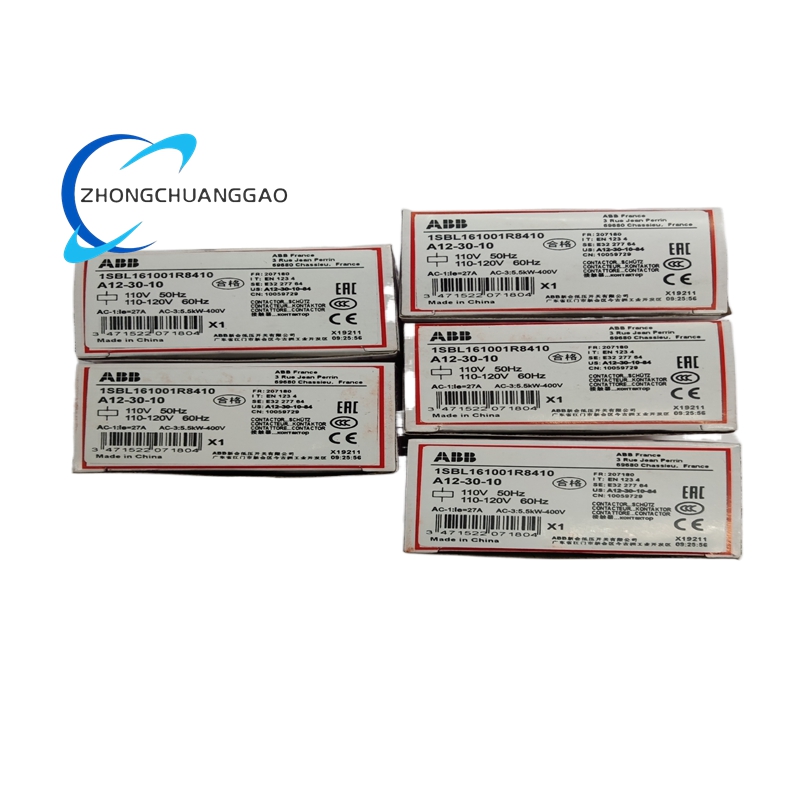

The ABB A12-30-10-84 is a compact, high-performance 3‑pole AC magnetic contactor from ABB’s A‑Line product family, engineered for reliable switching and control of 3‑phase motors, power circuits, and industrial loads. It features a 110–120 VAC coil (50/60 Hz) and is designed for direct‑on‑line (DOL) motor starting, circuit switching, and load control in industrial automation, manufacturing, and building systems. Built with robust construction and compliant with global safety standards, this contactor delivers consistent performance, long service life, and easy integration into control panels via DIN‑rail or panel mounting. It supports motor control up to 690 VAC and includes a built‑in 1‑NO auxiliary contact for status monitoring and interlocking.
Description
Technical Specifications
Core Electrical Ratings
- Product Series: A‑Line (A12 Frame)
- Poles: 3‑pole (3 NO main contacts)
- Continuous Current Rating: 11 A (motor duty)
- Thermal Current Rating: 27 A (conventional)
- Rated Operational Voltage: Up to 690 VAC (IEC), 600 VAC (UL/CSA)
- Coil Voltage: 110–120 VAC (50 Hz / 60 Hz)
- Auxiliary Contact: 1 NO (normally open) built‑in base‑mounted contact
- Horsepower Ratings: 3 HP @ 230 VAC, 7.5 HP @ 460 VAC (3‑phase)
- Control Circuit Isolation: Full galvanic isolation between coil and power circuits
Mechanical & Physical
- Dimensions: 74 mm (H) × 44 mm (W) × 74 mm (D)
- Weight: Approx. 0.25 kg
- Mounting: 35 mm DIN‑rail snap‑on; panel‑mount compatible
- Terminals: Screw terminals for power and control wiring
- Enclosure Rating: IP20 (indoor, dust‑protected)
- Contact Design: Double‑break silver alloy contacts for low wear and high conductivity
Environmental & Compliance
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH, non‑condensing
- Altitude: Up to 3000 m above sea level
- Standards: IEC 60947‑4‑1, UL508, CSA 22.2 No. 14, RoHS compliant
- Mechanical Life: ≥ 10 million operations
- Electrical Life: ≥ 1 million operations at rated load
Performance & Compatibility
- Switching Frequency: Suitable for high‑cycle industrial applications
- Coil Power: Low‑power consumption for energy efficiency
- Accessory Compatibility: Supports snap‑on auxiliary blocks, mechanical interlocks, and timers
- NEMA Compatibility: Fits NEMA sizes 00–3 applications
Key Features
Robust & Reliable Contact System
- Double‑Break Contacts: Minimize arcing and extend contact life under heavy loads
- Silver Alloy Contacts: Ensure low contact resistance and stable performance over time
- High Switching Endurance: Long mechanical and electrical life for minimal maintenance
Compact & Space‑Saving Design
- Miniature Form Factor: Optimizes panel space for dense control system layouts
- DIN‑Rail Snap‑On: Tool‑less installation for fast panel assembly
- Screw Terminals: Secure, reliable wiring for power and control circuits
Flexible Control & Integration
- Dual‑Frequency Coil: Operates on 50 Hz or 60 Hz supplies without adjustment
- Built‑In Auxiliary Contact: Provides status feedback for PLC and control system interlocking
- Wide Voltage Compatibility: Works with global 110–120 VAC control systems
- Accessory Expandability: Accepts add‑on auxiliary contacts, timers, and mechanical latches
Industrial‑Grade Durability
- Wide Temperature Range: Operates reliably in harsh industrial environments
- Vibration Resistance: Withstands mechanical shock and vibration in heavy machinery setups
- IP20 Protection: Safeguards internal components from dust and accidental contact
- Certified Safety: Complies with global standards for industrial control equipment
Efficient & Low‑Energy Operation
- Low Coil Power: Reduces energy consumption and heat generation
- Fast Action: Quick make‑and‑break switching for precise load control
- Consistent Performance: Stable operation across voltage fluctuations
Application Scenarios
Motor Control & Drives
- 3‑Phase Motor Starting: Direct‑on‑line (DOL) starting for pumps, fans, and conveyors
- Machine Tool Control: Switching for lathes, mills, drills, and automated machinery
- HVAC Systems: Control of blower motors, compressors, and circulation pumps
- Material Handling: Conveyor belts, hoists, and automated storage systems
Industrial Automation & Manufacturing
- Packaging Machinery: Control of filling, sealing, labeling, and sorting equipment
- Textile & Printing: Motors for spinning, weaving, and web‑handling systems
- Food & Beverage: Processing equipment, mixers, and bottling line motors
- Plastics & Rubber: Extruders, injectors, and molding machine control
Building & Infrastructure
- Commercial HVAC: Central air handling, chiller, and boiler pump control
- Water Treatment: Pump stations, filtration systems, and chemical dosing
- Lighting Control: Large‑scale industrial and commercial lighting circuits
- Fire Safety: Emergency ventilation and fire pump control circuits
Power Distribution & Control Panels
- Control Cabinet Switching: Main circuit and sub‑circuit power control
- UPS & Backup Systems: Automatic transfer and bypass switching
- Generator Controls: Prime mover and distribution circuit control
- Renewable Energy: Solar inverter and wind turbine auxiliary power control
Marine & Offshore
- Shipboard Systems: Pump, fan, and auxiliary motor control
- Offshore Platforms: Process equipment and utility power switching
- Naval Vessels: Reliable control for critical on‑board machinery
