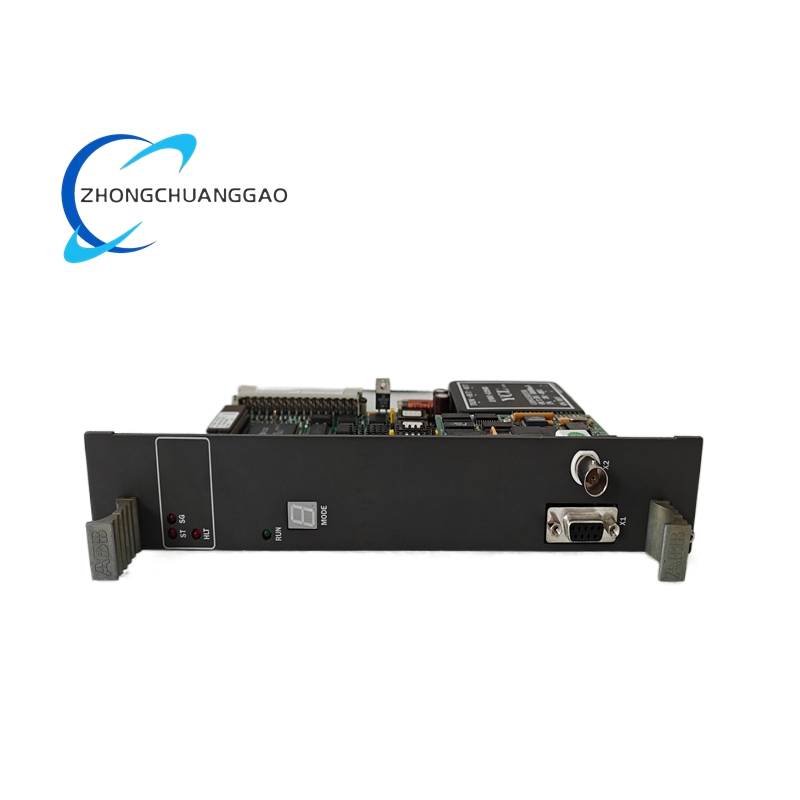

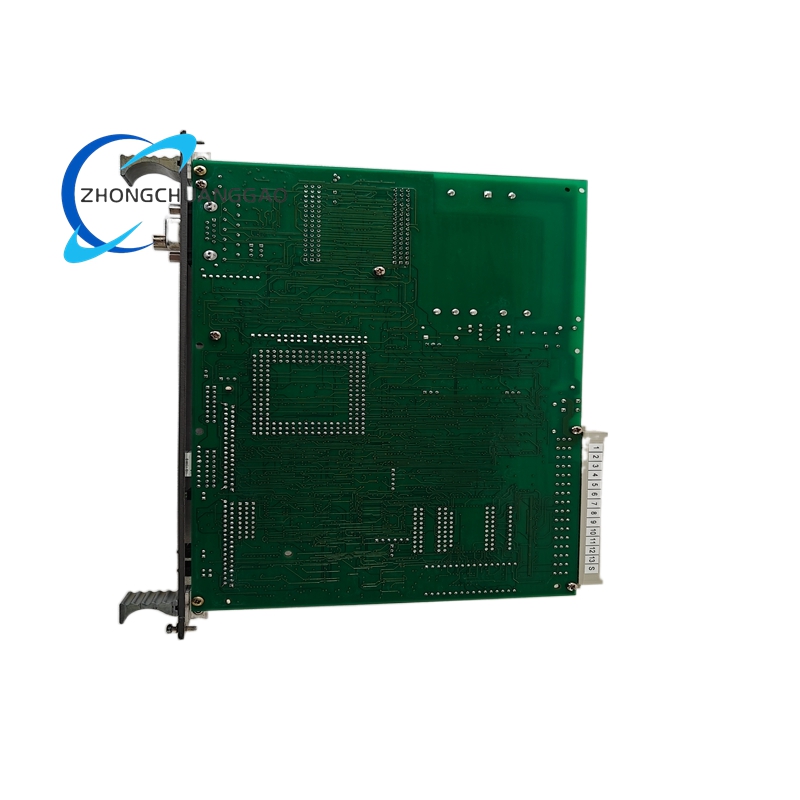

ABB 87TS50‑ER1414 GKWE857800R1414 Procontrol P14 Master Station (VST) Ethernet Coupling Module

Description

Technical Specifications

Core Communication Parameters

• Ethernet Interface: 10BaseT (IEEE 802.3i), RJ‑45 connector (X2)
• Transmission Protocol: TCP/IP (fixed configuration, no auto‑negotiation)
• Ethernet Speed/Duplex: 10 Mbit/s, half‑duplex (hard‑set)
• Maximum Ethernet Distance: 100 m (Cat.5e twisted‑pair cable)
• Minimum Node Spacing: 0.6 m between Ethernet participants
• Max 87TS50 Nodes per CPS Interface: 4 modules
• Serial Service Interface: RS232 (9‑pole D‑type connector X1)
• Serial Settings: 9600 baud, 8 data bits, 1 stop bit, no parity, XOFF handshake
• Serial Distance: Up to 15 m (without line amplification)

Bus & Data Handling Capacity

• Bus Type: Procontrol P14 Master Station (VST) station bus
• Bus Interface: 48‑pole edge connector (X11, DIN 41612 Type F)
• Listen‑in Telegrams: 1 to 16383 (automatic address list generation)
• Send‑Location Telegrams: 0 to 800 (over 4 consecutive slot addresses)
• Destination Telegrams: Supported for register writes/command outputs
• Time Stamp Resolution: 1 millisecond (applied to all received telegrams)
• Privileged Station Configuration: 2048 cyclic response telegrams (via 88VA01/VA02)
• Data Types Supported: 0–24, 28–29 (including 32‑bit counters, binary data, system clock)
• Analog Change Threshold: Configurable surface value (default: 0.5 %·s)

Electrical Specifications

• Operating Voltage: Redundant 24 V DC (USA/USB)
• Reference Potential: ZD = 0 V (bus side)
• Current Consumption: 700 mA (IS) at 24 V DC
• Power Dissipation: 15 W (PV, maximum)
• Isolation: Reinforced isolation between field/bus and system sides
• EMC Compliance: DIN EN 61000‑4‑2 (8 kV/4 kV ESD), 61000‑4‑3 (10 V/m RF), 61000‑4‑4 (0.5 kV fast transient), 61000‑4‑5 (2 kV/1 kV surge), 61000‑4‑6 (10 V conducted)

Mechanical & Physical Specifications

• Form Factor: 6 units × 2 divisions × 160 mm depth (DIN 41612)
• Net Weight: 0.78 kg
• Mounting: Rack‑mounted in Procontrol P14 subracks (2 slots required)
• Cooling Requirement: 1 free slot left/right (non‑forced ventilation); 1 free division between adjacent 87TS50 modules
• Connectors:
  • X11: 48‑pole edge (station bus)
  • X1: 9‑pole D (RS232 service)
  • X2: RJ‑45 (10BaseT Ethernet)
• LED Indicators: ST (disturbance, red), SG (module disturbance, red), HLT (processor halt, red), RUN (active, green), MODE (operating status, multi‑segment), LNK (Ethernet link, green), ACT (Ethernet activity, yellow)

Environmental & Reliability Ratings

• Operating Temperature: 0 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 (5–500 Hz, 10 g rms)
• Shock Resistance: IEC 60068‑2‑27 (50 g, 11 ms half‑sine)
• Watchdog Function: Enabled (restarts processing after programmed timeout)
• Memory: Flash‑PROM (29040, 512K × 8 bit) or OTP‑PROM (27C040) for firmware; RAM for runtime data

System Compatibility

• Host Platform: ABB Procontrol P14 DCS (Master Station VST bus)
• Cabinets: 89MS01/Rx200, 89MS02/Rx100 (ZS1 with special wiring adjustments)
• Software Requirement: CPS (Common Procontrol Data Server)
• Redundancy Support: Redundant power inputs; passive/active redundancy switchover with full data resync
• Retrofit Compatibility: Works with SAB14/SAB16 modules; older pre‑1988 modules may require isolation

Key Features

Deterministic Ethernet Integration

• IEEE 802.3 10BaseT Compliance: Stable, standardized Ethernet connectivity for industrial environments
• Fixed 10 Mbit/s Half‑Duplex: Eliminates auto‑negotiation errors in critical control networks
• TCP/IP Native Support: Seamless communication with CPS and HMI systems (POS30, 800xA Gateway)
• Millisecond Time Stamping: Precise data synchronization for audit trails and process analysis

High‑Capacity Data Handling

• 16383 Listen‑in Telegrams: Comprehensive visibility into Procontrol P14 bus traffic
• 800 Send‑Location Telegrams: Scalable command and data output for system control
• Automatic Address Learning: Detects new modules on the bus without manual configuration
• Analog Change Filtering: Reduces network load via configurable surface value thresholding
• Parity Bit Checking: Ensures error‑free telegram reception from the Procontrol bus

Robust Reliability & Redundancy

• Dual 24 V DC Power Inputs: Prevents downtime from single power supply failures
• Privileged Station Status: Guarantees priority handling of 2048 cyclic response telegrams
• Redundancy Switchover: Transparent passive‑to‑active transition with full background data resync
• Comprehensive Diagnostics: Real‑time monitoring of bus, processor, memory, and temperature
• Watchdog Protection: Automatic restart on processor faults to maintain system availability

User‑Friendly Service & Maintenance

• Menu‑Driven Service Monitor: Direct access to connect status, module time, telegram data, and diagnostics
• LED Status Indicators: At‑a‑glance visibility of disturbances, processor state, Ethernet link/activity
• RS232 Service Port: Local commissioning and troubleshooting without network access
• Temperature Monitoring: Ambient temperature readout via register 202 for thermal health checks
• DRAM Clear Function: Ensures complete memory reset during module reinsertion (10‑second wait required)

Industrial‑Grade Durability

• EMC Hardened Design: Withstands harsh electromagnetic interference in power, oil & gas, and chemical plants
• Rack‑Optimized Form Factor: 2‑slot design with defined cooling clearances for high‑density cabinets
• Wide Temperature Operation: Performs reliably in extreme industrial control room environments
• Shock & Vibration Resistant: Engineered for heavy industrial applications with high mechanical stress
• Secure Connectors: DIN 41612 edge connectors and RJ‑45 ensure stable connections in vibrating environments

Application Scenarios

Power Generation

• Thermal Power Plants: Connects Procontrol P14 boiler/turbine control systems to POS30 operator stations for real‑time monitoring of combustion processes, steam cycles, and safety interlocks
• Nuclear Power Plants: Enables SIL‑compliant data exchange between safety‑critical Procontrol P14 systems and 800xA Gateway, supporting regulatory compliance and audit trails
• Hydroelectric Power Plants: Integrates turbine governor and dam control systems with HMI platforms, providing operators with unified visibility of water levels, gate positions, and generator performance
• Combined Cycle Power Plants: Facilitates coordination between gas turbine, HRSG, and steam turbine controls via CPS, enabling optimized load balancing and efficiency monitoring

Oil & Gas Industry

• Upstream Operations: Links wellhead Procontrol P14 control systems to central HMIs, monitoring well pressure, flow rates, and valve positions in real time
• Midstream Pipelines: Connects pipeline block valve and pump control stations to SCADA systems via 87TS50‑ER1414, enabling remote operation and leak detection response
• Downstream Refineries: Integrates distillation column, catalytic cracker, and storage tank controls with POS30, supporting batch tracking and emergency shutdown coordination
• LNG Facilities: Facilitates communication between cryogenic process controls and safety systems, ensuring compliance with strict environmental and safety regulations

Chemical & Petrochemical Processing

• Batch Reactors: Connects Procontrol P14 sequence controllers to HMI systems, enabling recipe management, batch tracking, and real‑time parameter adjustment
• Continuous Processes: Integrates polymerization, chlorination, and distillation controls with CPS, providing operators with unified visibility of process variables and alarm statuses
• Hazardous Material Handling: Enables safe data exchange between emergency shutdown (ESD) systems and HMIs, supporting rapid response to gas detection or pressure anomalies
• Pharmaceutical Manufacturing: Connects cleanroom Procontrol P14 systems to 800xA, ensuring compliance with GMP regulations via time‑stamped process data and audit trails

Water & Wastewater Treatment

• Water Treatment Plants: Integrates filtration, disinfection, and pump control systems with HMIs, enabling remote monitoring of water quality and treatment processes
• Wastewater Facilities: Links aeration, sludge processing, and effluent discharge controls to central SCADA systems, supporting optimized energy usage and regulatory reporting
• Desalination Plants: Connects reverse osmosis and brine treatment controls to POS30, providing operators with real‑time visibility of membrane performance and water production rates

Industrial Automation & Heavy Industry

• Metal & Mining: Integrates Procontrol P14 blast furnace, rolling mill, and crusher controls with HMIs, enabling real‑time process optimization and equipment health monitoring
• Cement Production: Links kiln, raw material handling, and clinker cooler controls to CPS, supporting energy efficiency monitoring and predictive maintenance
• Marine & Offshore: Connects FPSO and offshore platform Procontrol P14 systems to on‑shore HMIs, enabling remote operation and maintenance of critical process systems
• Manufacturing: Integrates Procontrol P14 machine control systems with enterprise HMI platforms, supporting production tracking, quality control, and equipment downtime analysis
