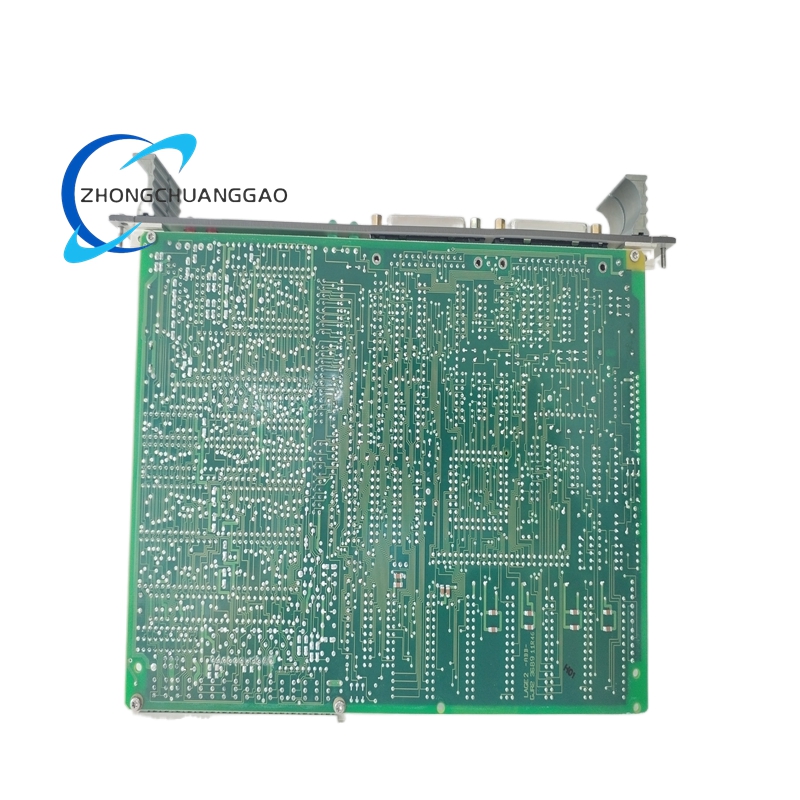

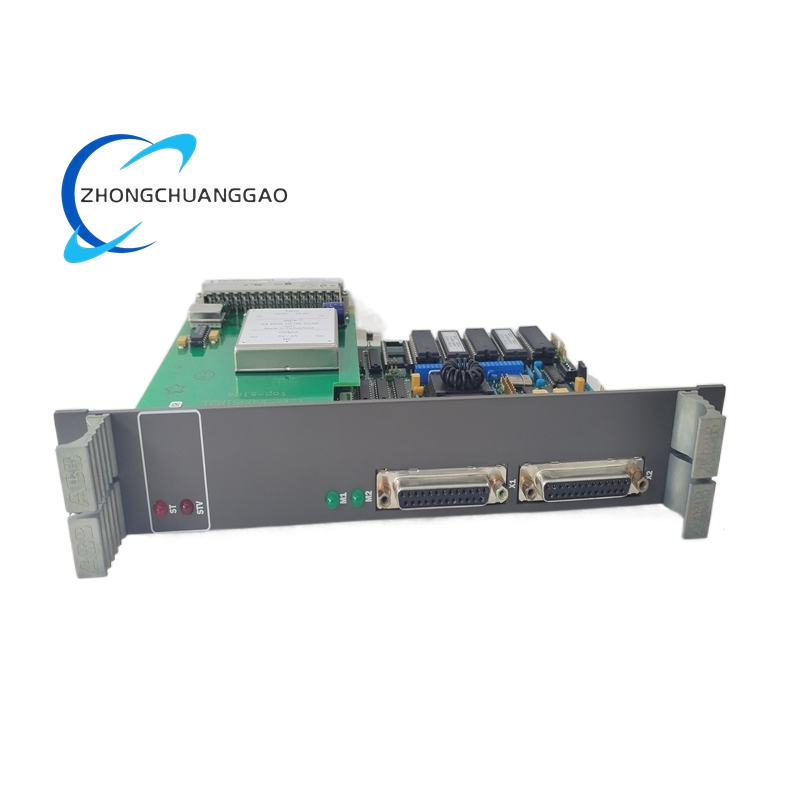

ABB 87TS01L Coupling Module

Description

Technical Specifications

Communication Parameters

• Serial Interface: RS‑232C / RS‑422 (configurable)
• Baud Rate: 9600 baud (standard)
• Data Transfer Mode: Cyclic and event‑driven telegram transmission
• Telegram Capacity:
  • Receive: Up to 230 telegrams (addresses 0–229)
  • Transmit: Up to 200 telegrams (addresses 0–199)
• Data Integrity: CRC check for receive address list protection
• Protocol: Procontrol P14 proprietary communication protocol
• Interface Isolation: Galvanic isolation between serial port and station bus

System & Power Parameters

• System Compatibility: ABB Procontrol P14 DCS
• Bus Interface: Procontrol P14 station bus
• Power Supply: 24 V DC (redundant supply via 89MS01/R0200 or 89MS02/R0100)
• Power Consumption: ≤ 5 W
• Shared Memory: Dual‑port RAM for receive/transmit data buffering

Mechanical & Physical Parameters

• Form Factor: Rack‑mountable module for Procontrol P14 system
• Dimensions: 3.8 cm × 25.4 cm × 20.3 cm (1.5″ × 10.0″ × 8.0″)
• Weight: Approximately 0.7 kg
• Terminals: Pluggable screw terminals for serial and bus connections
• Indicators: LED status lights for power, communication activity, and fault diagnostics

Environmental & Compliance

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -25°C to +70°C
• Humidity: 5%–95% RH (non‑condensing)
• Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock)
• Protection Class: IP20 (for enclosed control cabinet installation)
• Certifications: CE, IEC 61131‑2, ABB industrial quality standards

Operational Features

• Hot‑Swappable: Supports online replacement without full system shutdown
• Redundancy Support: Compatible with redundant station bus configurations
• Diagnostics: Real‑time protocol monitoring and fault logging in diagnosis registers
• Parallel Operation: Up to four modules can operate in parallel for expanded connectivity

Key Features

• Dual Serial Standards: Supports RS‑232C and RS‑422 for broad external device compatibility
• High‑Capacity Data Transfer: Handles up to 430 telegrams for extensive system integration
• Shared Memory Architecture: Ensures fast, reliable data exchange between bus and serial interface
• Error‑Resilient Communication: CRC protection and protocol monitoring guarantee data integrity
• Comprehensive Diagnostics: Detailed fault reporting via LED indicators and system registers
• Seamless DCS Integration: Native compatibility with Procontrol P14 station bus
• Redundant Power Support: Operates on redundant 24 V DC for maximum uptime
• Flexible Configuration: Software‑configurable communication parameters via Procontrol tools
• Robust Industrial Design: Withstands harsh industrial environments with wide temperature tolerance
• Easy Maintenance: Hot‑swappable design minimizes system downtime during replacement

Application Scenarios

• Process Operator Stations: Connects POS (Process Operator Station) to Procontrol P14 for real‑time process monitoring and control
• Programming & Diagnostics: Interfaces PDDS (Programming, Diagnosis, Display System) and CDS (Control Diagnosis System) for system configuration, software upload, and fault analysis
• Time Synchronization: Integrates DCF77 or other time receivers for precise system‑wide time synchronization
• Third‑Party Computer Integration: Links external PCs and servers to the DCS for data logging, historical trending, and advanced analytics
• System Expansion: Enables connection of additional control nodes and remote I/O systems
• Power Generation Plants: Facilitates communication between turbine control systems and central DCS
• Oil & Gas Refineries: Integrates field instrumentation and local control panels with the main process control system
• Chemical Processing: Connects laboratory analysis systems and quality control tools to the production DCS
• Water & Wastewater Treatment: Links SCADA systems and remote telemetry units to the central control platform
• Industrial Retrofit: Upgrades legacy communication interfaces in existing Procontrol P14 installations
