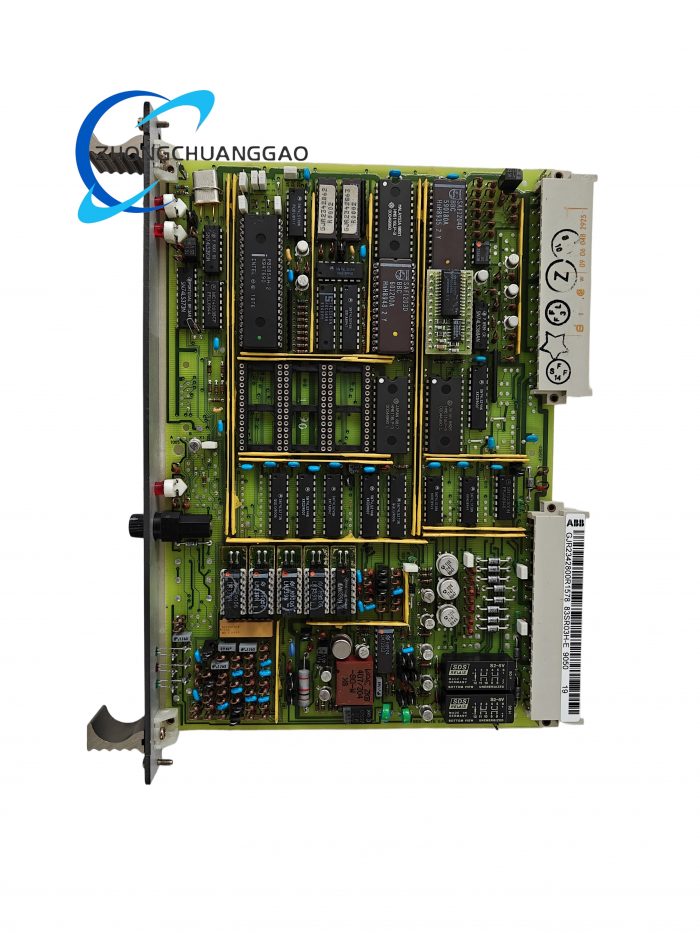

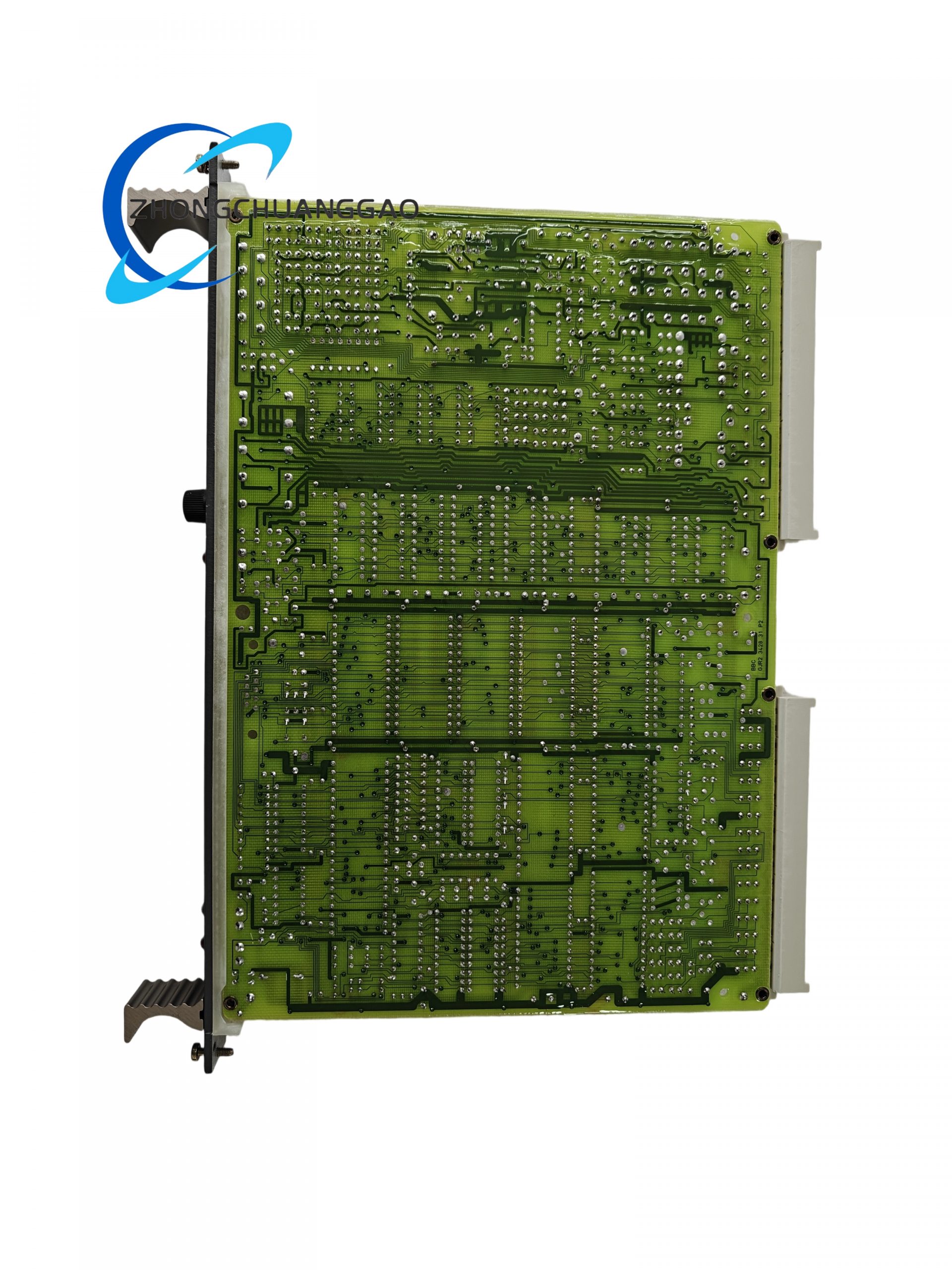

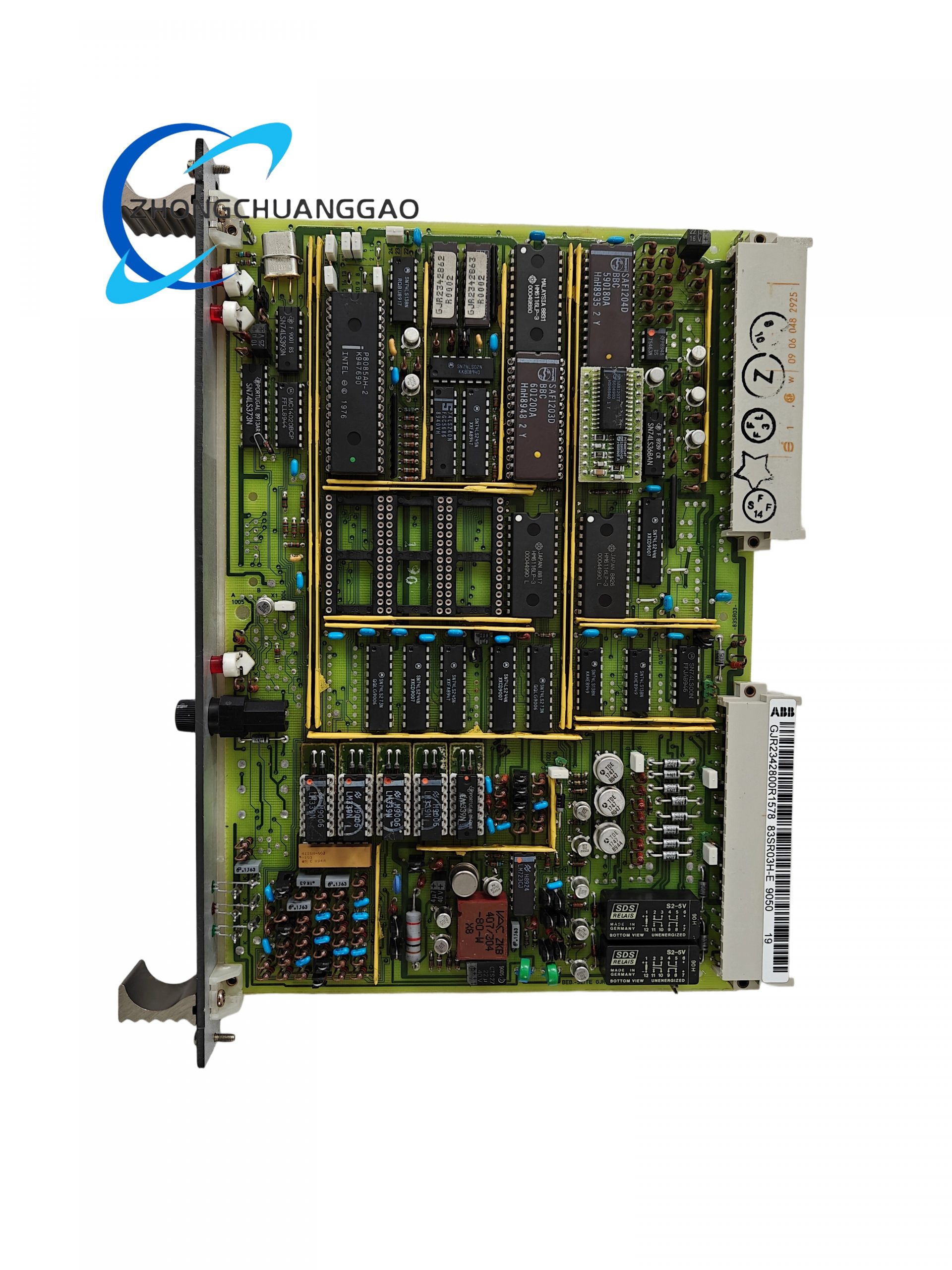

ABB 83SR03H-E GJR2342800R1578 Safety Module

Description

• Function Features
  • High – Precision Conversion: Equipped with high – precision AD/DA converters to ensure the accuracy of measurement and control.
  • Flexible Configuration: Can be configured through software to achieve various functions such as filtering, calibration, and alarming.
  • Isolation Design: Provides signal isolation function to improve the reliability of the system.
• Application Scenarios
  • Industrial Automation: Widely used in DCS systems in industries such as CNC machinery, metallurgy, petroleum and natural gas, petrochemicals, chemicals, paper printing, textile printing and dyeing, mechanical manufacturing, electronic manufacturing, automotive manufacturing, tobacco, plastic machinery, power, and water conservancy.
  • Building Automation: Used for the measurement and control of parameters such as temperature, humidity, and pressure in building automation systems.
  • Environmental Monitoring: Used for the measurement of various parameters in environmental monitoring systems.
  • Test and Measurement: Used for data collection in test and measurement systems.

ABB 83SR03H – E GJR2342800R1578 Safety Module

• Product Name
  • Safety Relay Module
• Product Introduction
  • The ABB 83SR03H – E is a safety – related module, which is part of ABB’s safety product line. It is mainly used to monitor and control safety – critical signals in industrial applications to ensure the safety of personnel and equipment.
• Technical Specifications
  • Operating Voltage: Usually 24V DC (specific values may vary by model).
  • Safety Category: Meets safety category 4 according to ISO 13849 – 1.
  • Output Current: Can support a certain output current, such as a maximum of 6A in some similar models.
  • Protection Class: IP20.
• Function Features
  • High – Safety Assurance: With SIL 3/PL e capability, it can effectively ensure the safety of the system.
  • Easy to Install and Maintain: Features a user – friendly design for easy installation and maintenance, such as detachable terminal blocks that speed up connection and replacement.
  • Status Indication: Equipped with LEDs to display the working status of the module, which is convenient for troubleshooting.
  • Advanced Timer Functions: Some models have advanced timer functions with an accuracy of ±1% to minimize unnecessary downtime.
• Application Scenarios
  • Machine Tools: Used to ensure the safety of machine tool operation, such as emergency stop control and door – opening protection.
  • Packaging Machinery: In the packaging production line, it is used to monitor the safety of equipment operation and protect the safety of operators.
  • Automotive Manufacturing: Applied to various production equipment in automotive manufacturing plants to ensure production safety.
