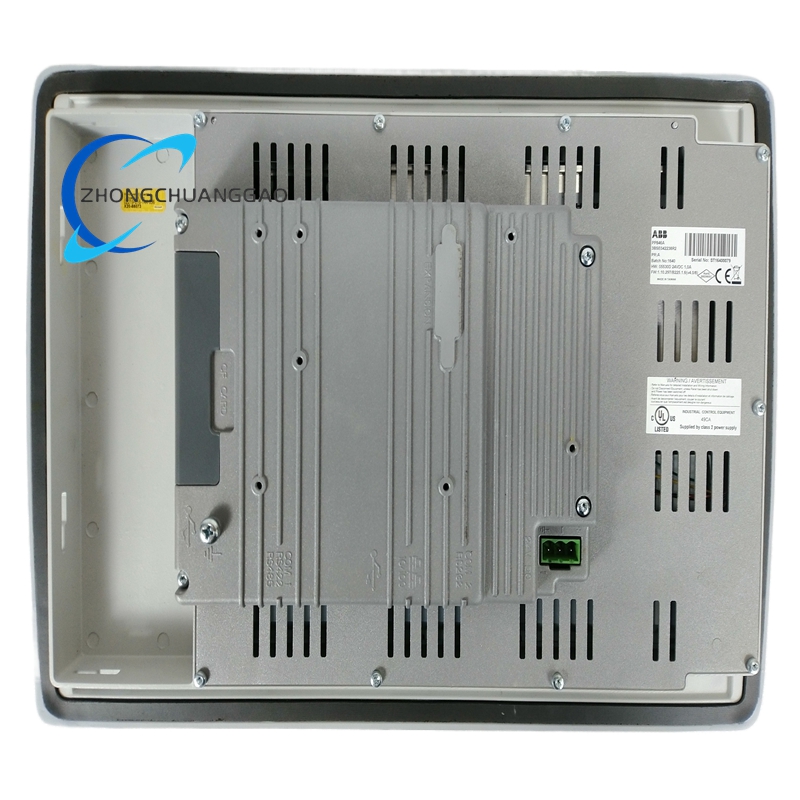

ABB 800PP846A High-Performance Operator Panel

Description

Technical Specifications

Functional Features

Superior Visualization & Operation

• High-Resolution Display: Features a large 10.4-inch SVGA color TFT screen, delivering crystal-clear visualization of process data, trends, mimic diagrams, and alarm statuses for optimal operational oversight.
• Intuitive Touch Interface: Equipped with a highly responsive resistive touchscreen, enabling precise operation even with gloved hands, ensuring usability in harsh industrial conditions.
• Physical Function Keys: Integrated with dedicated, backlit function keys along the display for quick access to critical functions, screens, and shortcuts, enhancing operational speed and efficiency.
• Multi-Language Support: Supports a wide range of global languages for the user interface, catering to diverse international operational teams and reducing training barriers.

Robust Communication & Integration

• High-Speed Connectivity: Offers Gigabit Ethernet for fast and reliable data exchange with control systems, ensuring real-time updates and minimal latency.
• Versatile Peripheral Ports: Includes USB ports for easy program upload/download, data logging, and connection to peripherals like mice, keyboards, or storage devices.
• Multi-Protocol Compatibility: Supports major industrial communication protocols, ensuring seamless integration with ABB control systems (800xA, Advant) and third-party PLCs, SCADA systems, and field devices.
• Isolated Serial Ports: Features galvanically isolated RS-232/485 ports, providing strong immunity to electrical noise and ensuring stable communication in electrically harsh environments.

Advanced Control & Monitoring Functions

• Real-Time Process Supervision: Displays dynamic process values, setpoints, and unit statuses in real time, allowing operators to make immediate, informed decisions.
• Comprehensive Alarm Management: Provides centralized alarm handling with prioritization, historical logging, and visual/audio alerts to quickly identify and resolve process disturbances.
• Trend & Data Analysis: Capable of displaying real-time and historical trend graphs for key process variables, facilitating performance analysis and predictive maintenance.
• Secure User Access: Incorporates multi-level password protection and user account management, preventing unauthorized access and ensuring operational security and integrity.

Industrial-Grade Durability & Design

• Rugged Construction: Housed in a robust die-cast aluminum enclosure with a powder-coated finish, designed to resist physical impact, vibration, and corrosion.
• Extreme Environmental Tolerance: Operates reliably across a wide temperature range and high humidity, suitable for installation in challenging locations from factory floors to outdoor substations.
• Superior Front Protection: Front panel rated IP66, offering complete protection against dust, water jets, and oil, making it ideal for wash-down and harsh process environments.
• Long-Term Reliability: Built with industrial-grade components for continuous 24/7 operation, ensuring high system uptime and a long service life with minimal maintenance.

Flexible & User-Friendly Engineering

• Flexible Configuration: Fully programmable using ABB’s Panel Builder 800 software, allowing for the creation of custom, application-specific user interfaces.
• Modular Software Architecture: Supports reusable faceplates and templates, significantly reducing engineering time and simplifying system deployment and updates.
• Remote Access & Diagnostics: Enables remote access for monitoring, troubleshooting, and software updates, reducing the need for on-site intervention and lowering maintenance costs.

Application Scenarios

Process Industries & Manufacturing

• Oil & Gas Refineries: Monitors and controls distillation units, reactors, and pipeline systems in hazardous ATEX-certified areas.
• Chemical & Pharmaceutical Plants: Manages batch processes, temperature, pressure, and quality control in sterile and corrosive environments.
• Food & Beverage Production: Controls mixing, pasteurization, filling, and packaging lines with strict hygiene and wash-down requirements.
• Pulp & Paper Mills: Oversees drying, rolling, and coating processes, providing critical control for continuous production.

Power Generation & Energy

• Thermal Power Plants: Manages boiler operations, turbine auxiliaries, and emissions control systems.
• Hydropower & Wind Farms: Monitors turbine control, grid synchronization, and energy storage systems.
• Substations & Grid Infrastructure: Provides control and visualization for power distribution and switchgear management.

Water & Wastewater

• Municipal Water Treatment: Controls filtration, chemical dosing, and pump systems for water purification.
• Wastewater Facilities: Manages aeration, sedimentation, and sludge treatment processes.

Metallurgy & Mining

• Steel & Aluminum Mills: Controls high-temperature processes like blast furnaces, smelters, and rolling mills.
• Mining Operations: Manages crushers, conveyors, and mineral processing equipment in rugged underground and surface mines.

Marine & Offshore

• Commercial Vessels & Rigs: Operates and monitors on-board power generation, propulsion auxiliaries, and safety systems.
• Offshore Platforms: Withstands harsh marine conditions to control drilling, production, and processing equipment.

Building & Infrastructure

• District Heating & Cooling: Controls large-scale boiler and chiller plants and distribution networks.
• Airports & Rail Hubs: Manages baggage handling, escalators, and building services systems.
• Industrial Buildings: Automates HVAC, lighting, and access control systems.
