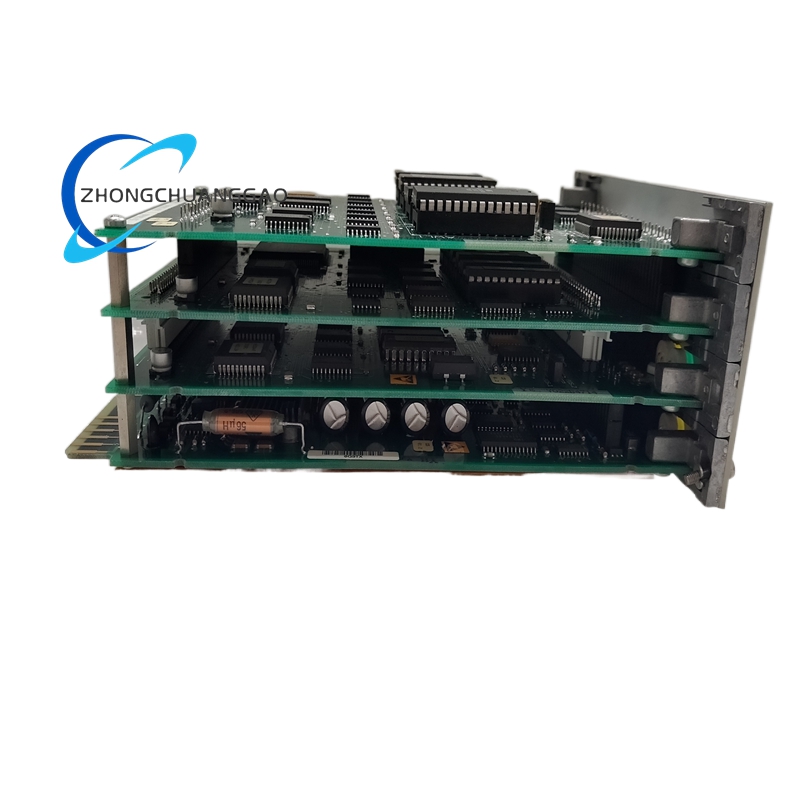

ABB 70PR05B-ES Programmable Processor Module

Description

Technical Specifications

Functional Features

High-Speed Processing & Control Performance

• Advanced DSP/Processor Technology: Equipped with a 25 MHz Intel 80486SX processor and DSP architecture, offering 3x faster computation than legacy Procontrol P13 modules, ensuring real-time execution of complex control algorithms.
• Multi-Loop Process Control: Supports simultaneous execution of up to 64 PID control loops for precise regulation of temperature, pressure, flow, level, and other process variables.
• Large Memory Capacity: Features 512 KB flash memory for non-volatile program storage and 256 KB RAM for dynamic data handling, enabling long-term, uninterrupted control operation.
• High-Speed Signal Scanning: Scans all I/O points at 1 ms intervals, delivering ultra-fast response to process changes and ensuring tight control stability.

Reliable Communication & Networking

• Dual Redundant Communication: Integrates isolated RS-485 and high-speed Ethernet ports for redundant data transmission, eliminating communication failure risks in critical processes.
• Multi-Protocol Support: Compatible with PROFINET, Modbus TCP, OPC, and proprietary ABB protocols, enabling seamless integration with third-party PLCs, SCADA systems, HMIs, and field devices.
• Long-Distance Communication: RS-485 ports support communication distances up to 1,200 meters, facilitating distributed I/O deployment across large-scale facilities.
• Superior Noise Immunity: Galvanic isolation (2.5 kV RMS) and industrial-grade EMC design protect against electromagnetic interference (EMI/RFI), ensuring stable data transmission in harsh industrial environments.

Modular Design & System Flexibility

• Hot-Swappable Construction: Supports module replacement and system expansion without powering down the control system, reducing downtime and maintenance costs.
• Distributed Architecture: Enables decentralized control with remote I/O modules, minimizing field wiring, simplifying system design, and lowering installation complexity.
• Scalable I/O Capacity: Expands to support up to 512 digital I/O points and 128 analog I/O points, adapting to small-scale machinery control and large-scale plant-wide DCS applications.
• Plug-and-Play Integration: Seamlessly interfaces with ABB Procontrol P13 I/O modules (AI, AO, DI, DO), operator panels, and engineering workstations for rapid system deployment.

Comprehensive Safety & Diagnostics

• SIL3 Safety Certification: Complies with IEC 61508 SIL3 safety standards, suitable for safety-instrumented systems (SIS) in high-risk industrial processes.
• Real-Time Diagnostic Monitoring: Built-in self-diagnostic functions continuously monitor module health, temperature, voltage, communication status, and I/O signal integrity.
• Predictive Fault Alerts: Detects potential faults 5–10 minutes in advance, triggering audible/visual alarms and generating detailed fault codes to accelerate troubleshooting.
• Overload & Short-Circuit Protection: Integrated over-voltage, over-current, and reverse-polarity protection safeguards the module and connected field devices from electrical damage.

Robust Industrial Durability

• Wide Temperature Tolerance: Operates reliably across -25 °C to +70 °C, suitable for extreme environments in mines, refineries, and outdoor facilities.
• Vibration & Shock Resistance: Rugged PCB design and industrial-grade components withstand high vibration (5–2000 Hz, 10 g) and mechanical shock (30 g).
• Long Service Life: Constructed with high-quality materials and tested for 100,000+ hours of continuous operation, ensuring minimal maintenance and maximum system uptime.

Application Scenarios

Power Generation & Energy

• Thermal Power Plants: Controls boiler systems, turbine auxiliaries, feed water pumps, and flue gas desulfurization (FGD) processes.
• Hydropower Plants: Manages turbine speed control, gate positioning, and auxiliary systems for dam and hydroelectric facilities.
• Wind & Solar Energy: Regulates grid-tie inverters, energy storage systems (BESS), and renewable energy farm monitoring.
• Oil & Gas Refineries: Controls distillation columns, reactors, pumps, and pipeline systems in hazardous (ATEX) environments.

Chemical & Petrochemical Processing

• Chemical Synthesis Plants: Implements precise batch and continuous control for reactors, separators, and material handling systems.
• Fertilizer & Pharmaceutical Production: Manages temperature, pressure, and flow control for sterile, high-purity manufacturing processes.
• Polymer & Plastic Manufacturing: Controls extrusion, molding, and drying processes with tight regulation of thermal and mechanical variables.

Metallurgy & Mining

• Steel & Aluminum Mills: Regulates blast furnaces, rolling mills, and continuous casting systems for high-temperature, high-vibration environments.
• Mining Operations: Controls crushers, conveyors, grinding mills, and mineral processing equipment in underground and open-pit mines.
• Cement Production: Manages kiln control, raw material handling, and clinker production for cement manufacturing lines.

Water & Wastewater Treatment

• Municipal Water Treatment: Controls filtration, disinfection, chemical dosing, and pump systems for drinking water purification.
• Wastewater Facilities: Manages aeration, sedimentation, sludge treatment, and effluent discharge processes.
• Industrial Water Recycling: Regulates water reuse systems for manufacturing plants, reducing water consumption and environmental impact.

Manufacturing & Machinery

• Automotive Production: Controls assembly lines, robotic workstations, material handling, and paint shop processes.
• Food & Beverage: Manages packaging, pasteurization, mixing, and filling lines with strict hygiene and accuracy requirements.
• Textile & Paper Mills: Regulates drying, rolling, cutting, and coating processes for continuous production lines.

Marine & Offshore

• Ship Propulsion & Auxiliaries: Controls on-board power generation, HVAC, pumps, and cargo handling systems for commercial vessels.
• Offshore Platforms: Manages drilling, production, and safety systems in harsh marine environments.

Building & Infrastructure

• District Heating & Cooling: Controls boiler plants, chiller systems, and distribution networks for large-scale facilities.
• Airport & Railway Hubs: Manages baggage handling, escalators, HVAC, and lighting control systems.
