Product Introduction

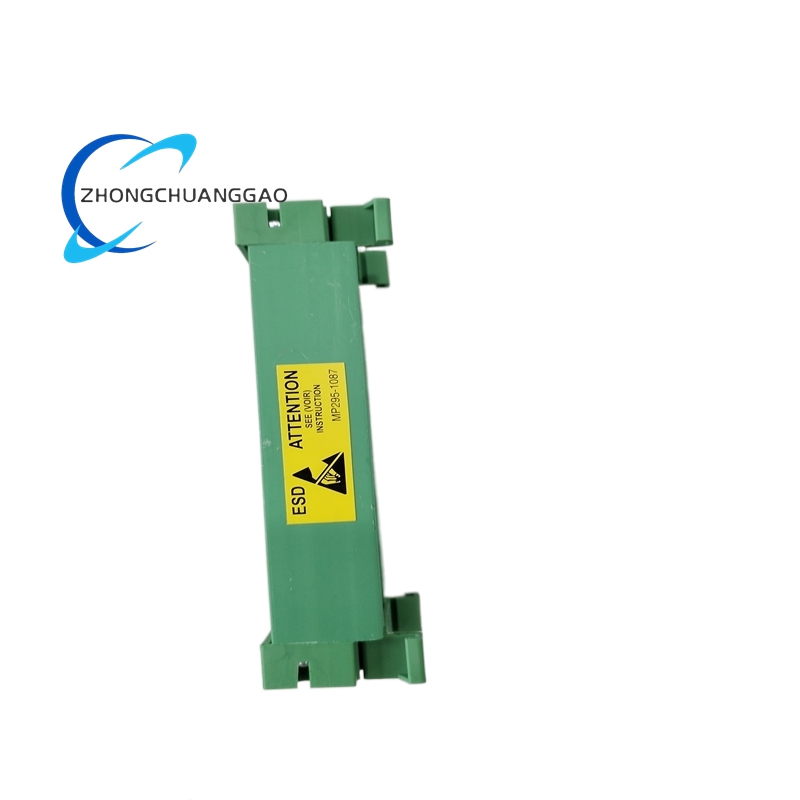

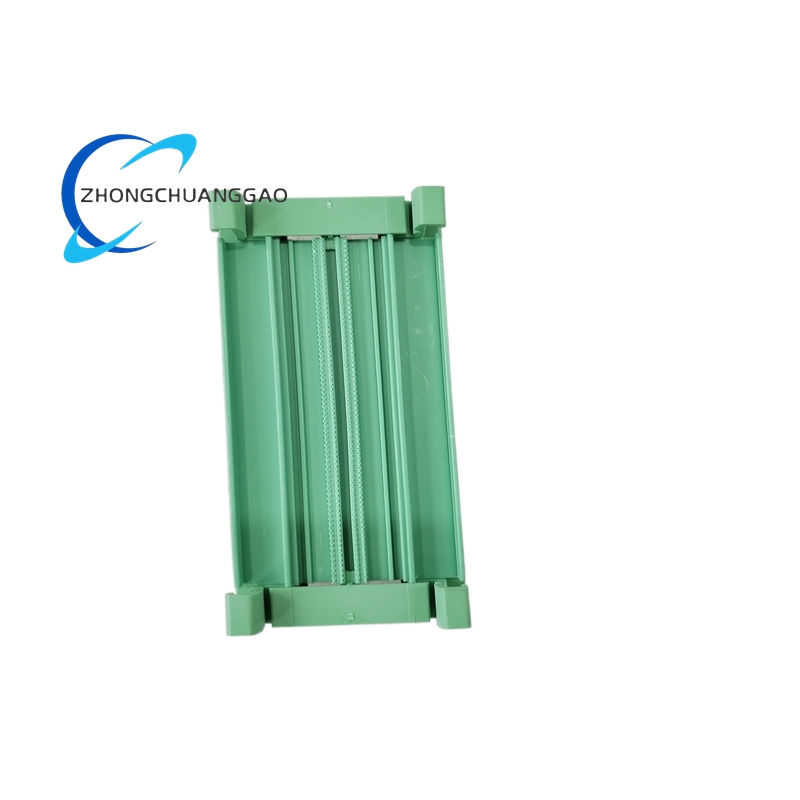

The ABB 6644424A1 is a dedicated voltage monitoring module designed for the ABB Harmony Rack Power System (MPS3) and Bailey Infi 90 / Net 90 DCS platforms. It continuously monitors critical DC bus voltages (+5VDC, +15VDC, -15VDC, and MCOM) on the system bus bar. When any monitored voltage deviates from its specified tolerance range, the module immediately triggers a low-true fault signal (PF1) to alert the control system. This compact, DIN-rail mountable unit ensures stable power distribution and protects connected industrial control equipment from voltage anomalies, supporting reliable operation in demanding industrial environments.
Description
Technical Specifications
Monitoring Parameters
- Monitored Voltages: +5VDC, +15VDC, -15VDC, MCOM (System Common)
- Fault Output Signal: PF1 (Low-true logic signal) for out-of-tolerance voltage detection
- Input Current: < 50 mA (Low power consumption)
Mechanical & Physical
- Mounting: DIN-rail mountable (Standard industrial enclosure)
- Dimensions: 90 mm (L) × 60 mm (W) × 25 mm (H)
- Net Weight: 0.2 kg
- Enclosure Material: Industrial-grade plastic, robust construction
Environmental & Compliance
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH, non-condensing
- Protection Class: IP20 (Dust-protected, suitable for control cabinet installation)
- Compliance: CE, RoHS compliant
- System Compatibility: ABB Harmony MPS3, Bailey Infi 90, Net 90 DCS systems
Key Features
- Multi-Channel DC Voltage Monitoring: Simultaneously tracks four critical DC bus voltages (+5V, +15V, -15V, MCOM) for comprehensive power system oversight.
- Instant Fault Detection: Generates a dedicated PF1 low-true signal upon detecting any out-of-tolerance voltage, enabling rapid system response.
- Low Power Consumption: Draws less than 50 mA, minimizing energy usage and heat generation within the control cabinet.
- Compact DIN-Rail Design: Space-saving form factor for easy integration into standard industrial control panels and rack-mounted power systems.
- Industrial Robustness: Operates reliably across a wide temperature range and withstands harsh industrial conditions.
- Plug-and-Play Integration: Directly connects to the MPS3 system bus bar, requiring minimal wiring and configuration for seamless deployment.
- High Reliability: Engineered for long-term, maintenance-free operation in critical process control environments.
Application Scenarios
- Distributed Control Systems (DCS): Primary voltage monitoring for ABB Bailey Infi 90 and Net 90 DCS power distribution networks.
- Harmony Rack Power Systems (MPS3): Core component for safeguarding DC bus voltages in modular industrial power racks.
- Industrial Automation Control Cabinets: Ensures stable power supply for PLCs, I/O modules, and field instrumentation in manufacturing facilities.
- Process Industries: Critical power monitoring in oil & gas, chemical, petrochemical, and power generation plants.
- Power Substation Automation: Monitors DC control voltages for protection relays, RTUs, and SCADA systems.
- Water & Wastewater Treatment: Safeguards power for pump controls, valve actuators, and process monitoring equipment.
- System Retrofit & Upgrade: Replacement module for legacy ABB power monitoring systems to enhance reliability and fault detection capabilities.
