Description
Technical Specifications
-

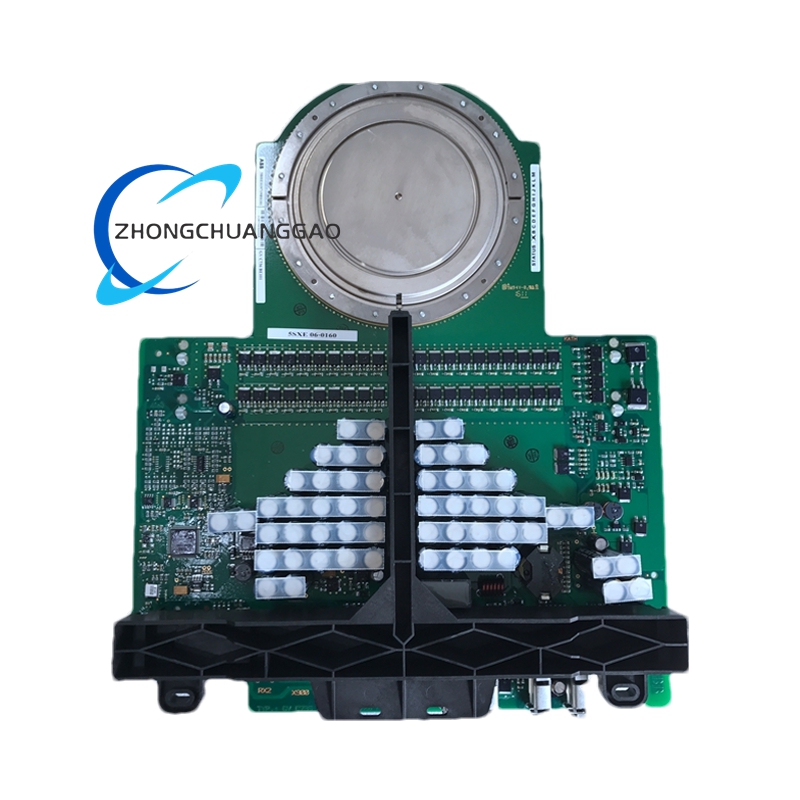

Device Type: Asymmetric IGCT with integrated gate driver
-
Blocking Voltage: 4 500 V
-
Average On-State Current (ITAV): 1 200 A @ 85 °C
-
Surge Current (ITSM): 16 kA (10 ms, 50 Hz)
-
Turn-Off Losses (Eoff): < 0.9 J per pulse
-
Conduction Voltage Drop (VT): 1.35 V typ @ 1 200 A, 125 °C
-
Gate Unit Supply: 20 VDC ±5 %, isolated, 10 W max
-
dv/dt Capability: 3 kV/µs snubberless turn-off
-
Operating Temperature: –40 °C…+125 °C (chip)
-
Mechanical Package: 140 mm × 130 mm × 26 mm (LinPak), 1.4 kg
-
Cooling: Direct liquid or forced-air, thermal resistance 0.08 K/W
Functional Features
-
Micro-second switching enables 500 Hz carrier operation without snubber circuits
-
Low on-state losses increase inverter efficiency to > 99 % at rated load
-
Integrated gate driver with status feedback and fault latch simplifies control wiring
-
LinPak parallel technology allows easy stacking to multi-kA ratings
-
Built-in temperature sensor and over-current detection for predictive maintenance
-
Standardised gate interface supports Profibus DP, EtherCAT and CANopen drive links
Application Scenarios
-
Heavy-duty traction: locomotive inverters, metro drives, mining haul trucks
-
Renewable energy: wind-turbine full-power converters, solar central inverters > 1 MW
-
Power systems: STATCOM, SVG, HVDC rectifier/inverter valves
-
Industrial drives: rolling-mill main drives, pump and fan VFDs up to 5 MW
-
Grid stabilization: active front-end (AFE) rectifiers for regenerative braking in cranes and elevators
