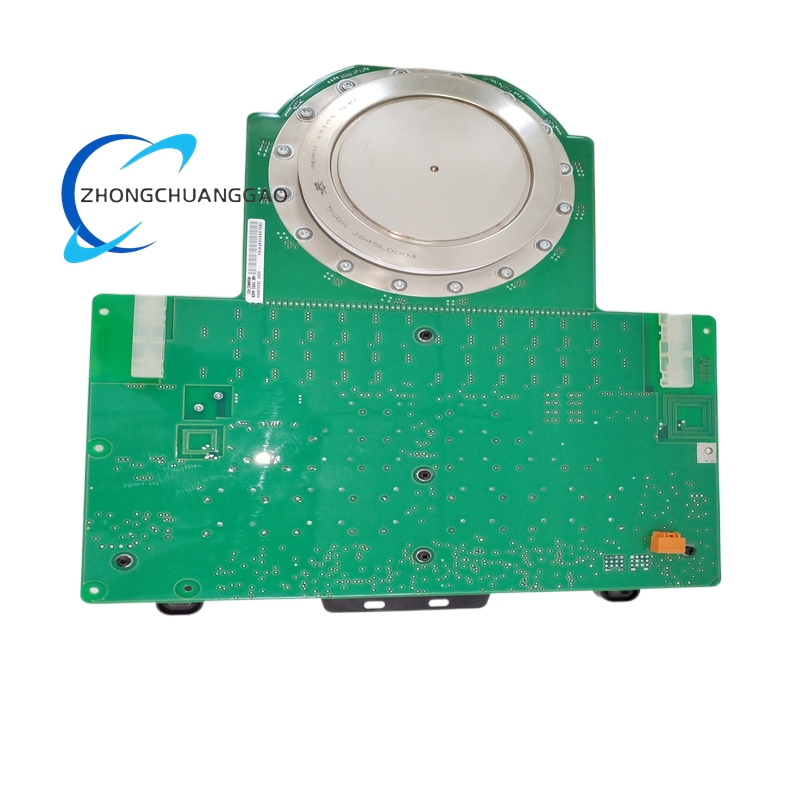

The ABB 5SHX2646L0004 is a high-power, industrial-grade IGCT power module designed for heavy-duty power conversion and control applications. It integrates advanced gate-commutated thyristor technology, delivering exceptional current handling, fast switching performance, and robust reliability. This module serves as a core switching component in medium-voltage power electronic systems, enabling efficient energy conversion, precise motor control, and stable power regulation in demanding industrial environments. Engineered for continuous operation under high loads, it combines high power density with low losses, making it ideal for applications requiring reliable, high-performance power switching.
Description
Technical Specifications
Electrical & Power Parameters
- Device Type: Integrated Gate-Commutated Thyristor (IGCT)
- Voltage Rating: 1000 V (medium-voltage class)
- Current Rating:
- Continuous on-state current: 2646 A
- Peak current handling: High surge current capacity for transient loads
- Switching Performance: Ultra-fast turn-on and turn-off; low switching losses; high dv/dt capability
- On-State Voltage Drop: Minimal forward voltage drop for high energy efficiency
- Isolation: High galvanic isolation between power and control circuits
- Gate Drive Interface: Low-inductance, high-speed gate control connection
- Frequency Compatibility: 50/60 Hz industrial power systems
Mechanical Parameters
- Form Factor: Compact, industrial power module package
- Mounting: Baseplate mounting for secure installation and efficient heat dissipation
- Cooling: Optimized thermal design; supports natural cooling and forced-air cooling
- Terminals: Heavy-duty power terminals for reliable high-current connections
- Weight: Robust construction with optimized weight for industrial handling
- Dimensions: Standard industrial module dimensions for easy integration
Environmental & Compliance
- Operating Temperature: -40°C to +125°C (junction temperature)
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non-condensing)
- Vibration/Shock: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) standards
- Protection Class: IP20 (suitable for integration into enclosed power cabinets)
- Certifications: CE, UL, and ABB industrial quality and safety standards
Compatibility
- System Compatibility: Designed for ABB medium-voltage drive systems and high-power converters
- Application Topologies: Suitable for voltage source inverters, current source inverters, and active front-end rectifiers
Key Features
- Ultra-High Current Handling: Delivers 2646 A continuous current capacity for heavy industrial loads
- Fast Switching Speed: Enables high-frequency operation with minimal switching losses, enhancing system efficiency
- High Power Density: Compact design maximizes power output while minimizing system footprint
- Low On-State Losses: Minimal voltage drop in conducting state reduces energy consumption and heat generation
- Robust Thermal Management: Optimized baseplate and cooling design ensure stable performance under extreme thermal conditions
- Snubber-Less Operation: High dv/dt rating eliminates need for external snubber circuits in most applications
- Integrated Protection: Built-in overcurrent, over-temperature, and over-voltage protection safeguards the module and system
- Industrial Durability: Resists vibration, shock, and harsh environmental contaminants for long service life
- Modular Design: Facilitates easy installation, replacement, and system scalability
- Seamless Integration: Direct compatibility with ABB power electronic control systems for plug-and-play operation
Application Scenarios
- Medium-Voltage Variable Frequency Drives (VFDs): Core switching component for high-power motor drives controlling pumps, fans, compressors, and conveyors in industrial plants
- Industrial Process Control: High-power converters for metal processing, cement production, chemical manufacturing, and material handling systems
- Mining & Heavy Machinery: Drives for crushers, mills, and long-wall shearers in underground and surface mining operations
- Oil & Gas Industry: Medium-voltage drives for pumps, compressors, and offshore drilling equipment
- Marine Propulsion Systems: Medium-voltage converters for ship propulsion and auxiliary power systems
- Power Generation & Grid Support: Static VAR compensators (SVCs) and grid-tie converters for wind and solar power plants
- Rail Traction: Traction converters for high-speed trains, metros, and electric locomotives
- Power Transmission: Flexible AC transmission systems (FACTS) and HVDC converter stations
- System Retrofit & Maintenance: Direct replacement part for servicing and upgrading existing ABB medium-voltage drive systems
