Product Introduction

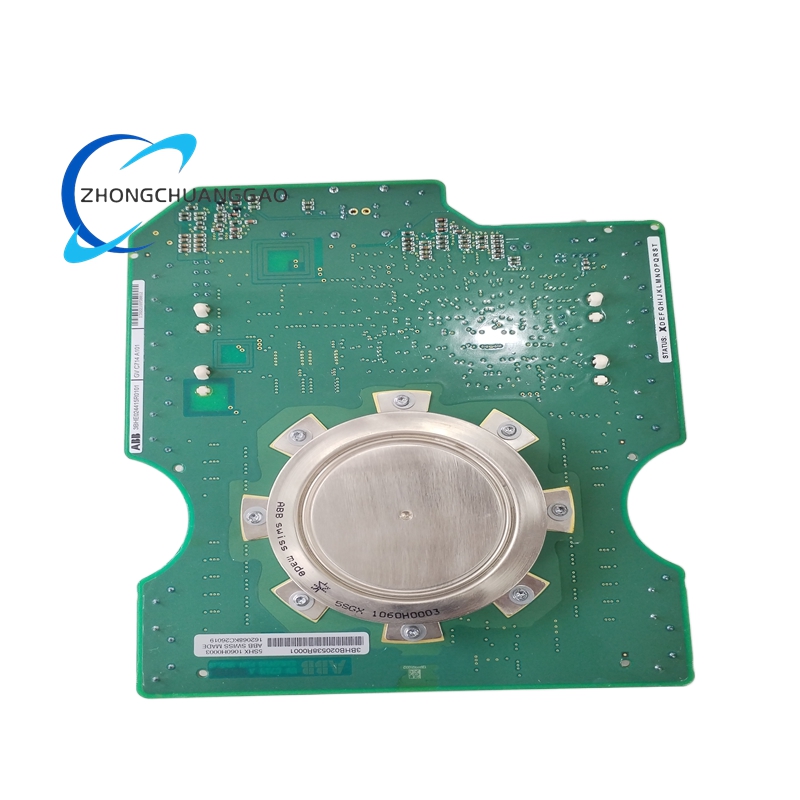

The ABB 5SHX1060H0003 is a high-power, fully controllable reverse conducting integrated gate-commutated thyristor (RC-IGCT) module, a core power semiconductor device in ABB’s advanced power electronics portfolio. It integrates the high-voltage blocking capability of traditional thyristors with the fast, gate-controlled switching characteristics of transistors, and incorporates an integrated reverse conducting diode. This module serves as a critical switching component for high-power energy conversion and control, enabling efficient current regulation, inversion, and rectification in medium-to-high voltage industrial and power systems. Designed for robust industrial operation, it delivers exceptional performance, reliability, and thermal stability, making it indispensable for applications requiring precise, high-power switching with minimal energy loss.
Description
Technical Specifications
Electrical & Power Parameters
- Device Type: Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT)
- Voltage Class: Medium-to-high voltage rating for industrial power conversion systems
- Current Rating: High continuous and peak current handling capacity for heavy-duty operations
- Switching Speed: Ultra-fast turn-on and turn-off capabilities, minimizing switching losses
- Reverse Conducting: Integrated anti-parallel diode for reverse current conduction, eliminating external diode requirements
- Gate Control: Low-inductance gate drive interface for reliable, high-speed control signal transmission
- Isolation: High electrical isolation between power and control circuits for system safety
- Cooling Interface: Optimized baseplate for direct mounting to heat sinks, ensuring efficient thermal dissipation
Mechanical Parameters
- Form Factor: Compact, industry-standard power module packaging
- Mounting: Baseplate mounting for secure installation in power electronic assemblies
- Weight: Robust construction with optimized weight for industrial handling
- Terminals: Heavy-duty power terminals and precision control connectors for reliable connections
Environmental & Compliance
- Operating Temperature: -40°C to +150°C (junction temperature), suitable for extreme industrial environments
- Storage Temperature: -40°C to +125°C
- Humidity: 5%–95% RH (non-condensing)
- Vibration/Shock: Complies with IEC 60068-2-6 (vibration) and IEC 60068-2-27 (shock) standards
- Certifications: CE, UL, and ABB internal industrial quality and safety standards
- Protection Class: IP00 (for integration into enclosed power electronic cabinets)
Compatibility
- System Compatibility: Primarily designed for ABB ACS5000 series medium-voltage drives and similar high-power converter systems
- Application Topologies: Suitable for voltage source inverters, current source inverters, active front-end rectifiers, and static VAR compensators
Key Features
- High Power Density: Delivers exceptional power handling in a compact module, reducing system footprint.
- Reverse Conducting Integration: Built-in diode simplifies circuit design, reduces component count, and improves reliability.
- Fast Switching Performance: Enables high-frequency operation with low switching losses, enhancing system efficiency.
- Low Gate Drive Requirements: Optimized gate design reduces drive complexity and power consumption.
- Excellent Thermal Stability: Robust thermal design ensures stable performance under high-load and high-temperature conditions.
- High Voltage Blocking: Withstands high off-state voltages, suitable for medium-voltage industrial applications.
- Rugged Industrial Construction: Resists vibration, shock, and harsh environmental contaminants for long service life.
- Low On-State Loss: Minimal voltage drop in the conducting state maximizes energy efficiency.
- Fully Controllable: Precise gate control allows for reliable turn-on and turn-off under all operating conditions.
- Modular Design: Facilitates easy installation, replacement, and system scalability.
Application Scenarios
- Medium-Voltage Variable Frequency Drives (VFDs): Core switching device in ABB ACS5000 and similar high-power motor drive systems for industrial pumps, fans, compressors, and conveyors.
- Wind Turbine Power Converters: Used in grid-tie inverters for efficient energy conversion and grid integration in wind power generation systems.
- Solar Photovoltaic (PV) Inverters: Enables high-efficiency DC-to-AC conversion in large-scale solar power plants.
- Industrial Power Supplies: High-power rectifiers and inverters for manufacturing, metal processing, and chemical industries.
- Static VAR Compensators (SVCs): Provides dynamic reactive power compensation for power factor correction and grid stability.
- Electric Vehicle (EV) Charging Infrastructure: High-power charging stations and grid interface converters.
- Marine Propulsion Systems: Medium-voltage drives for ship propulsion and auxiliary power systems.
- Mining & Metal Processing: High-power motor controls for crushers, mills, and heavy machinery in mining operations.
- Oil & Gas Industry: Drives for pumps, compressors, and processing equipment in offshore and onshore facilities.
- Power Transmission & Distribution: Flexible AC transmission systems (FACTS) and high-voltage DC (HVDC) converter stations.
