Product Short Description
Product Introduction

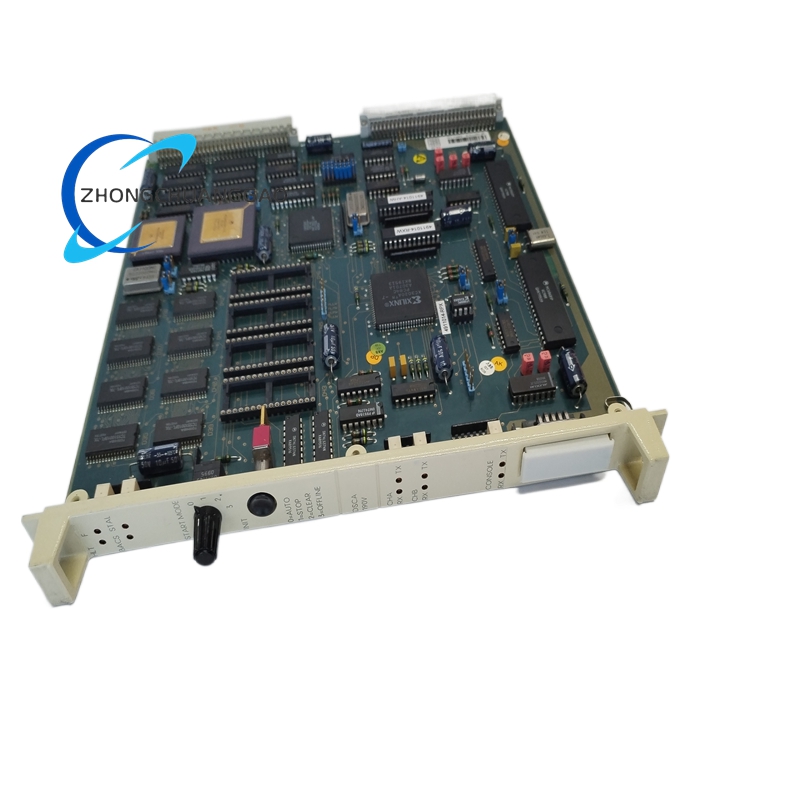

The ABB 57310001-PK (also labeled DSCA190V) is a dedicated communication processor module designed for the ABB Advant OCS / Master 200 / Master 200/1 DCS platforms. It serves as a critical data exchange hub between the DCS controller, I/O modules, field devices, and upper-level monitoring systems. This module enables reliable, real-time communication across industrial networks, supports multiple standard protocols, and ensures stable data transmission in demanding process environments. It features industrial-grade construction, wide environmental tolerance, and plug‑and‑play installation for seamless system integration.
Description
Technical Specifications
Core Parameters
- Model Number: 57310001-PK
- Alternative Designation: DSCA190V
- Product Type: Communication Processor Module
- Compatible Systems: ABB Advant OCS, Master 200, Master 200/1 DCS
- Power Supply: 24 V DC
- Memory Capacity: 512 KB
Communication & Interfaces
- Supported Protocols: Modbus RTU, Modbus TCP/IP, TCP/IP, UDP/IP, PROFIBUS, ABB proprietary protocols
- Communication Interfaces: Ethernet, RS485
- Data Transfer Rate: Up to 1 Mbps
- Isolation: Galvanic isolation between communication channels and system backplane
Mechanical & Physical
- Dimensions: 130 mm × 19 mm × 191 mm
- Weight: Approximately 0.2 kg
- Mounting: Rack mounting for DCS control cabinets
- PCB Material: Industrial‑grade FR‑4
- Connectors: Pluggable terminal blocks for fast wiring
Environmental & Compliance
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH, non‑condensing
- Vibration Resistance: Up to 5 g (10 Hz–500 Hz)
- Shock Resistance: Up to 10 g (11 ms)
- Protection Class: IP20
- Certifications: CE, RoHS compliant
Key Features
- Multi‑Protocol Support: Compatible with Modbus, TCP/IP, PROFIBUS, and ABB proprietary protocols for broad device connectivity.
- High‑Speed Data Transfer: Delivers up to 1 Mbps transmission speed for real‑time process data exchange.
- Galvanic Isolation: Protects the module and connected equipment from electrical interference and surge damage.
- Wide Temperature Range: Operates reliably in extreme industrial and outdoor environments.
- Compact Rugged Design: Small form factor optimizes cabinet space while ensuring long‑term durability.
- Plug‑and‑Play Installation: Direct rack mounting with pluggable terminals reduces setup and maintenance time.
- High Reliability: Industrial‑grade components deliver stable performance for critical DCS applications.
- Full System Compatibility: Native support for ABB Advant OCS and Master 200 series control platforms.
Application Scenarios
- DCS Communication Infrastructure: Core communication processor for ABB Advant OCS and Master 200 distributed control systems.
- Process Industries: Data exchange in oil & gas, petrochemical, chemical, and refining facilities.
- Power Generation: Communication between controllers, turbines, generators, and monitoring systems.
- Water & Wastewater: Reliable data transmission for pump stations, treatment plants, and distribution networks.
- Industrial Automation: Connects PLCs, remote I/O, field instruments, and SCADA systems.
- System Retrofit: Upgrade or replacement module for legacy ABB DCS communication systems.
- Remote Monitoring: Enables secure data transfer for remote process control and data acquisition.
