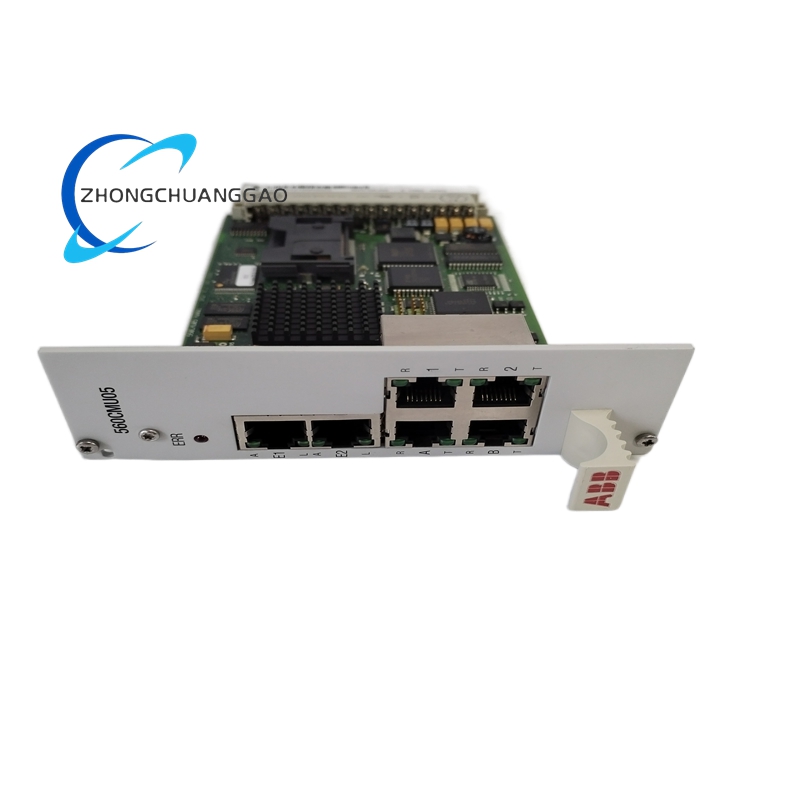

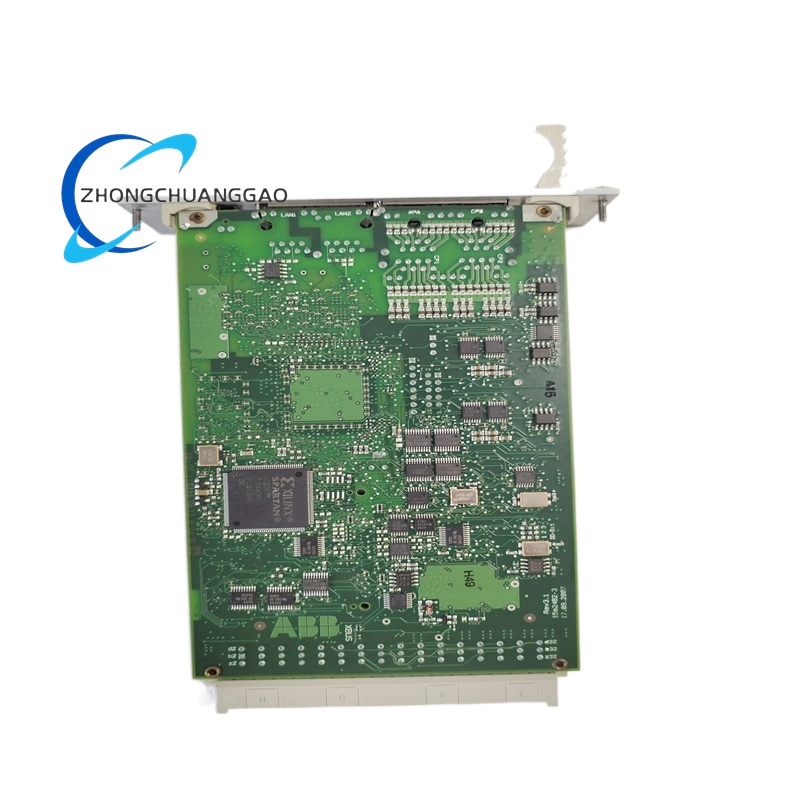

ABB 560CMU05 1KGT012700R0002 Central Communication Unit Module for RTU560 Remote Terminal Unit

Description

Technical Specifications

Core Processing & Memory

• Processor: 32-bit industrial-grade microprocessor
• Real-Time Clock (RTC): Battery-buffered hardware RTC for time-stamped operations and system synchronization
• Non-Volatile Memory: Persistent data storage for critical configuration and process values
• Compact Flash Interface: Supports external memory for data logging and firmware updates
• USB Port: 1 × USB interface for local configuration, diagnostics, and data transfer

Communication Interfaces

• Serial Ports: 4 × configurable serial interfaces (RS-232 or RS-485) for local/remote device communication
• Ethernet Ports: 2 × 10/100BaseT Ethernet ports for high-speed network communication
• Serial Peripheral Bus: Dedicated interface for controlling and synchronizing RTU560 I/O modules
• Supported Protocols: IEC 60870-5-101/104, Modbus RTU/TCP, Profibus DP, Ethernet/IP, and other character-based protocols

Electrical Specifications

• Power Supply: 24 V DC nominal (operating range: 20.4 V to 28.8 V DC)
• Power Consumption: ≤ 10 W (low-power industrial design)
• Isolation: Reinforced galvanic isolation between communication channels, I/O, and logic circuits
• EMC Compliance: Conforms to IEC 61000-6-2/4 and EN 55011 industrial EMC standards

Mechanical & Physical Specifications

• Dimensions: Standard RTU560 module form factor (occupies 2 rack slots)
• Weight: Approximately 1.0 kg (module only)
• Mounting: Rack-mounted installation compatible with RTU560 system cabinets
• Connectors: Industrial-grade terminal blocks and DIN F socket for backplane connection
• LED Indicators: Multi-color LEDs for power, communication status, fault, and operational modes
• Form Factor: Compact, ruggedized design for industrial cabinet installations

Environmental Ratings

• Operating Temperature: -10°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 (5–500 Hz, 1 g rms)
• Shock Resistance: IEC 60068-2-27 (15 g, 11 ms half-sine)
• MTBF: Exceeds 150,000 hours under industrial operating conditions
• Certifications: CE, UL, CSA, RoHS compliant

System Compatibility

• Host Systems: ABB RTU560 Remote Terminal Unit series
• I/O Module Support: Full compatibility with all RTU560 digital, analog, and special function I/O modules
• Control System Integration: Seamless connection to SCADA systems, DCS, PLCs, and enterprise networks
• Redundancy Support: Compatible with redundant power supply configurations for high-availability applications

Key Features

Centralized Communication Management

• Multi-Protocol Support: Handles both Ethernet and serial-based industrial protocols for versatile system integration
• Dual Ethernet Ports: Enables redundant network connections and separate communication paths for control and monitoring
• Configurable Serial Interfaces: Supports RS-232/RS-485 operation to connect with legacy field devices and modern sensors
• Web-Based Interface: Provides browser-based access for configuration, monitoring, and diagnostics via Ethernet

Robust I/O Control & Synchronization

• I/O Bus Master: Manages and controls all connected RTU560 I/O modules through the serial peripheral bus
• Precise Time Synchronization: Maintains system-wide time base and synchronizes all I/O modules for accurate time-stamping
• Real-Time Event Processing: Captures and processes field events with minimal latency for critical control applications
• Distributed I/O Support: Enables scalable system architecture with remote I/O expansion capabilities

High Reliability & Fault Tolerance

• Industrial-Grade Design: Withstands harsh environmental conditions including temperature extremes, vibration, and electromagnetic interference
• Battery-Buffered RTC: Ensures accurate timekeeping even during power outages
• Non-Volatile Data Storage: Retains critical configuration and process data without external power
• Comprehensive Diagnostics: Built-in self-testing and fault detection for proactive system maintenance
• Hot-Swap Compatibility: Supports replacement of I/O modules without system shutdown

Flexible System Integration

• Modular Architecture: Easily integrates into new or existing RTU560 systems with minimal configuration
• Scalable Solution: Supports system expansion with additional communication and I/O modules
• Legacy Compatibility: Connects with older automation equipment through serial interfaces
• Remote Access Capabilities: Enables remote monitoring, configuration, and troubleshooting via Ethernet
• Data Logging: Supports extensive data recording for process analysis, compliance reporting, and performance optimization

User-Friendly Operation & Maintenance

• LED Status Indicators: Provides at-a-glance visibility of module and communication status
• Local USB Interface: Facilitates on-site configuration and firmware updates without network access
• Web-Based Management: Offers intuitive browser interface for remote system administration
• Simplified Wiring: Industrial-grade connectors reduce installation time and minimize wiring errors
• Comprehensive Documentation: Detailed manuals and application guides for easy deployment and maintenance

Application Scenarios

Power Generation & Distribution

• Substation Automation: Controls switchgear, protection relays, and power quality monitoring devices
• Distribution Networks: Manages feeder automation, capacitor bank control, and fault location systems
• Renewable Energy Plants: Coordinates wind turbine and solar inverter communication with grid control centers
• Thermal Power Plants: Integrates boiler control systems, turbine auxiliaries, and generator monitoring
• Microgrid Management: Controls distributed energy resources and facilitates grid stability operations

Oil & Gas Industry

• Upstream Production: Monitors wellhead parameters, controls valve actuators, and communicates with remote production facilities
• Midstream Pipelines: Manages pipeline pressure, flow control, and leak detection systems
• Downstream Refineries: Connects distillation columns, reactor controls, and storage tank monitoring systems
• LNG Facilities: Controls cryogenic processes, vapor recovery systems, and safety shutdown mechanisms
• Offshore Platforms: Integrates production equipment, safety systems, and power generation controls

Water & Wastewater Treatment

• Municipal Water Treatment: Controls filtration systems, chemical dosing, and pumping stations
• Wastewater Plants: Manages aeration processes, sludge treatment, and UV disinfection systems
• Desalination Facilities: Regulates reverse osmosis systems and high-pressure pump operations
• Irrigation Networks: Controls water distribution valves and monitors reservoir levels
• Leak Detection Systems: Integrates pipeline monitoring sensors and automated shutoff mechanisms

Utility Infrastructure

• District Heating/Cooling: Controls distribution networks, pump stations, and energy management systems
• Gas Distribution: Manages pressure regulation stations and pipeline monitoring systems
• Telecommunication Towers: Controls backup power systems and environmental monitoring
• Transportation Infrastructure: Integrates traffic management systems, tunnel ventilation, and lighting controls
• Mining Operations: Controls material handling systems, ventilation fans, and safety monitoring equipment

Industrial Automation & Manufacturing

• Process Industries: Connects PLCs, HMIs, and field devices in chemical, pharmaceutical, and food processing plants
• Manufacturing Lines: Integrates assembly line controls, robotic systems, and quality monitoring equipment
• Building Automation: Manages HVAC systems, fire safety controls, and energy management in commercial buildings
• Pulp & Paper Mills: Controls processing lines, drying systems, and waste treatment facilities
• Metal Processing: Integrates furnace controls, material handling, and emissions monitoring systems

Remote Monitoring & Control

• Remote Pumping Stations: Monitors and controls water and oil pipeline pumping operations
• Environmental Monitoring: Collects data from weather stations, air quality sensors, and water monitoring devices
• Smart City Infrastructure: Integrates street lighting, waste management, and public safety systems
• Agricultural Automation: Controls irrigation systems, greenhouse environments, and livestock monitoring
• Telemetry Systems: Enables remote data collection from distributed sensors and field devices
