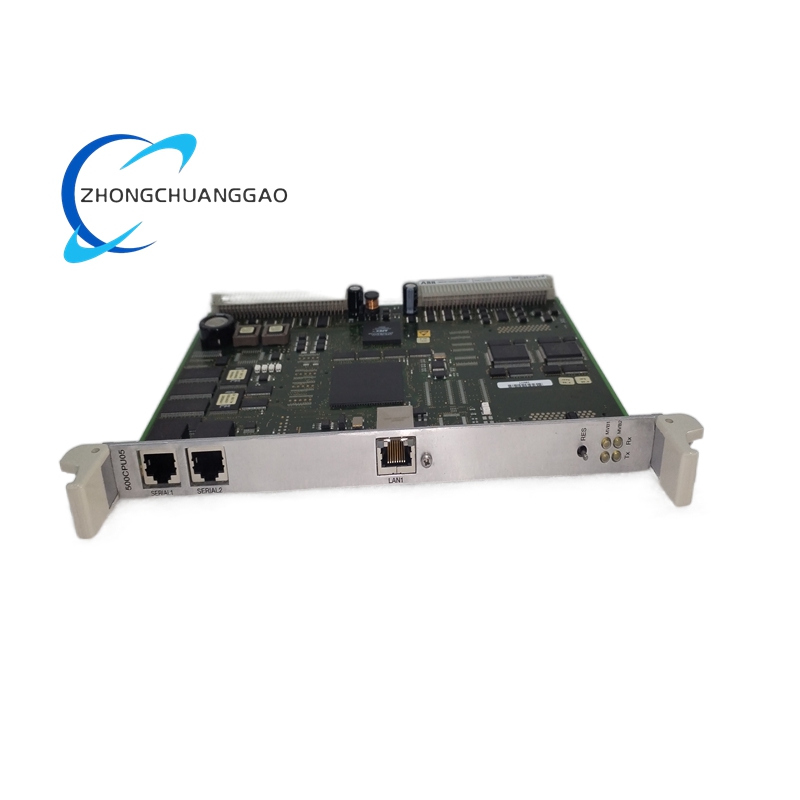

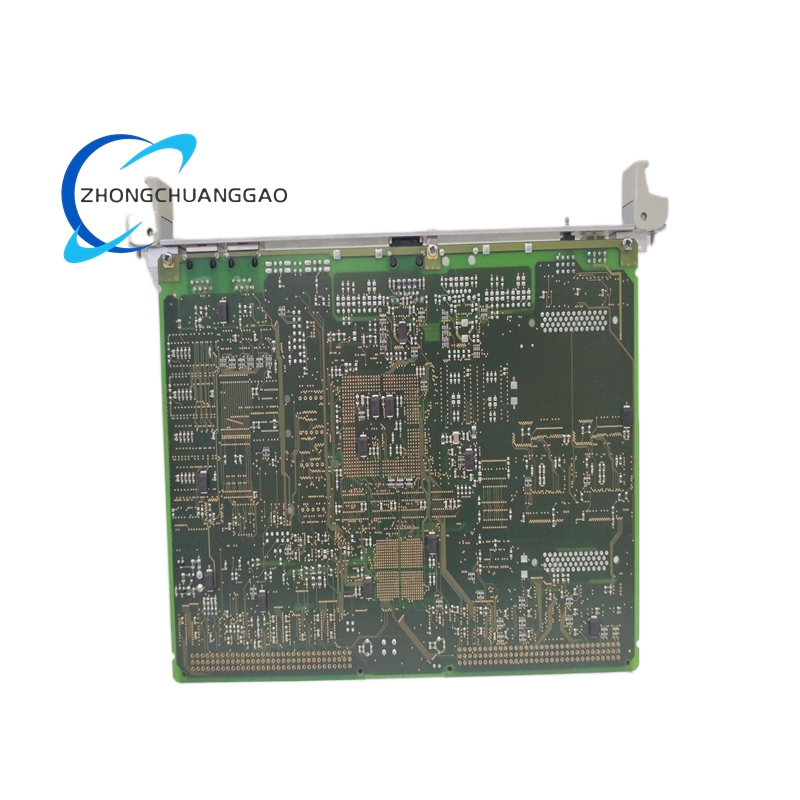

ABB 500CPU05 1MRB150081R1E Central Processing Unit (CPU) Module for AC500 Series PLC

Description

Technical Specifications

Core Processing & Memory

• Processor: 32-bit industrial-grade ARM Cortex‑A9 microprocessor with integrated floating‑point unit (FPU)
• Clock Speed: 1 GHz high‑speed operation for rapid logic execution and data processing
• Program Memory: 16 MB non‑volatile Flash memory for storing user control programs and firmware
• Data Memory: 512 MB DDR3 RAM for real‑time data processing and temporary storage
• Non‑Volatile Data Storage: Battery‑free persistent data retention for critical process valuesABB
• Real‑Time Clock (RTC): Integrated hardware RTC with calendar function for time‑stamped operationsABB
• SD Card Slot: Standard SD card interface for program backup, firmware updates, and data logging

I/O & System Capacity

• Max I/O Configuration: Supports up to 512 digital I/O points and 256 analog I/O points via expansion modules
• Expansion Bus: High‑speed backplane bus for connecting AC500 series I/O and communication modules
• I/O Module Compatibility: Fully compatible with S500, S500‑eCo, and TB511 series I/O modules
• Expansion Limit: Supports up to 10 expansion modules for system scalabilityABB

Communication Interfaces

• Integrated Ports:
  • 1 × Ethernet port (10/100 Mbps) supporting Modbus TCP, HTTP, FTP, SNTP, and DHCPABB
  • 2 × Serial ports (RS485/RS232) for Modbus RTU, programming, and legacy device communication
• Expandable Communication: Up to 4 additional communication modules supporting Profibus DP‑V1, DeviceNet, CANopen, EtherCAT, and other industrial protocols
• Programming Port: Dedicated port for connection to AC500 Control Builder programming software

Electrical Specifications

• Power Supply: 24 V DC (nominal), operating range 20.4 V to 28.8 V DC
• Power Consumption: ≤ 1.5 A at 24 V DC (low‑power design)
• Isolation: Reinforced galvanic isolation between logic, I/O, and communication circuits
• EMC Compliance: Conforms to IEC 61000‑6‑2/4 and EN 55011 industrial EMC standards

Mechanical & Physical Specifications

• Dimensions: Standard AC500 module form factor (140 mm × 100 mm × 70 mm)
• Weight: 0.8 kg (module only)
• Mounting: DIN‑rail mounting for standard industrial control cabinets
• User Interface: Integrated LCD display and pushbuttons for local parameter setup and status monitoring
• LED Indicators: Multi‑color LEDs for power, run, fault, and communication status
• Connectors: Industrial‑grade terminal blocks and plug‑in connectors for reliable wiring

Environmental Ratings

• Operating Temperature: -20 °C to +60 °C
• Storage Temperature: -40 °C to +85 °C
• Relative Humidity: 5%–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 (5–500 Hz, 1 g rms)
• Shock Resistance: IEC 60068‑2‑27 (15 g, 11 ms half‑sine)
• MTBF: Exceeds 150,000 hours under industrial operating conditions

Software & Programming

• Programming Software: AC500 Control Builder (supports IEC 61131‑3 standards)
• Programming Languages: Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Instruction List (IL), Sequential Function Chart (SFC)ABB
• Diagnostics: Built‑in self‑diagnostics, fault logging, and online monitoring tools
• Firmware: Field‑upgradable via SD card or Ethernet connection

Key Features

High‑Performance Processing

• 1 GHz ARM Processor: Delivers fast execution of complex control algorithms and large user programs
• Integrated FPU: Accelerates floating‑point calculations for precision process control
• Large Memory Capacity: 512 MB RAM and 16 MB Flash support extensive data logging and advanced control strategies
• Deterministic Operation: Ensures consistent, predictable response times for critical control tasks

Flexible Communication Capabilities

• Multi‑Protocol Support: Native Ethernet and serial ports, plus expandable fieldbus options
• Seamless Integration: Connects to HMIs, SCADA, drives, motors, sensors, and enterprise IT systems
• Remote Access: Enables remote programming, monitoring, and troubleshooting via Ethernet
• Data Exchange: Facilitates real‑time data sharing between distributed control nodes

Modular & Scalable Design

• Expandable I/O: Supports up to 768 I/O points for system growth and adaptation
• Hot‑Swappable Modules: Allows replacement of I/O and communication modules without system shutdown
• Mixed I/O Compatibility: Works with digital, analog, relay, and special function I/O modules
• Distributed Control: Enables creation of large‑scale distributed control systems (DCS)

Robust Industrial Reliability

• Wide Temperature Range: Operates reliably in extreme industrial environments
• EMC Hardened: Withstands electromagnetic interference common in industrial facilities
• Battery‑Free Persistence: Retains critical data without battery maintenance
• Self‑Diagnostics: Continuous monitoring of system health for proactive fault detection

User‑Friendly Operation

• Local HMI: Integrated LCD and buttons for on‑site configuration and status checks
• SD Card Support: Simplifies program backup, restoration, and firmware updates
• Unified Programming: Single software tool for all AC500 system configuration and programming
• Diagnostic Tools: Detailed fault codes and logging for quick troubleshooting

Advanced Control Functions

• Motion Control: Supports high‑speed counting, PWM outputs, and motion control algorithms
• Process Control: Implements PID loops, logic sequencing, and batch control functions
• Data Logging: Captures process data for analysis, reporting, and compliance
• Safety Integration: Compatible with AC500‑S safety modules for SIL‑rated applications

Application Scenarios

Manufacturing & Assembly

• Automated Production Lines: Controls conveyor systems, robotic arms, and assembly stations
• Packaging Machinery: Manages filling, sealing, labeling, and palletizing operations
• Food & Beverage Processing: Regulates temperature, pressure, and flow in cooking and packaging lines
• Pharmaceutical Manufacturing: Controls sterile processing, batch mixing, and packaging equipment
• Textile Machinery: Manages spinning, weaving, and dyeing processes with precise speed control

Power Generation & Distribution

• Thermal Power Plants: Controls boiler systems, turbine auxiliaries, and generator synchronization
• Renewable Energy: Manages wind turbine pitch control, solar inverter coordination, and grid integration
• Hydroelectric Plants: Regulates water flow, turbine speed, and power output
• Substation Automation: Controls switchgear, protection relays, and power quality monitoring
• Microgrids: Manages distributed energy resources and load balancing

Water & Wastewater Treatment

• Municipal Water Treatment: Controls filtration, disinfection, and pumping systems
• Wastewater Plants: Manages aeration, sludge treatment, and chemical dosing processes
• Desalination Facilities: Regulates reverse osmosis systems and high‑pressure pumps
• Irrigation Systems: Controls water distribution and valve actuation for agricultural applications
• Leak Detection: Monitors pipeline pressure and flow for early fault detection

Oil & Gas Industry

• Upstream Production: Controls wellhead valves, pumps, and separator systems
• Midstream Pipelines: Manages pipeline pressure, flow control, and leak detection
• Downstream Refineries: Regulates distillation columns, reactors, and product blending processes
• LNG Facilities: Controls cryogenic processes, vapor recovery, and storage systems
• Offshore Platforms: Manages power generation, safety systems, and production equipment

Building Automation & Infrastructure

• HVAC Systems: Controls heating, ventilation, and air conditioning in commercial buildings
• Fire & Safety Systems: Manages fire detection, suppression, and emergency lighting
• Elevator Control: Regulates elevator motion, door operation, and safety interlocks
• Traffic Management: Controls traffic signals, toll systems, and parking guidance
• Data Centers: Manages cooling, power distribution, and environmental monitoring

Marine & Offshore Applications

• Ship Power Systems: Controls generator sets, switchboards, and propulsion systems
• FPSO Vessels: Manages production equipment, ballast systems, and safety controls
• Offshore Wind Farms: Coordinates turbine control and grid connection
• Naval Vessels: Provides reliable control for military power and auxiliary systems
• Subsea Equipment: Controls subsea valves, pumps, and monitoring systems

Mining & Metals Processing

• Mineral Processing: Controls crushing, grinding, and flotation processes
• Metal Smelting: Regulates furnace temperature, material handling, and emissions control
• Material Handling: Manages conveyor systems, stackers, and reclaimers
• Mine Safety: Controls ventilation, gas detection, and emergency shutdown systems
• Ore Processing: Implements precise control for leaching, solvent extraction, and electrowinning
