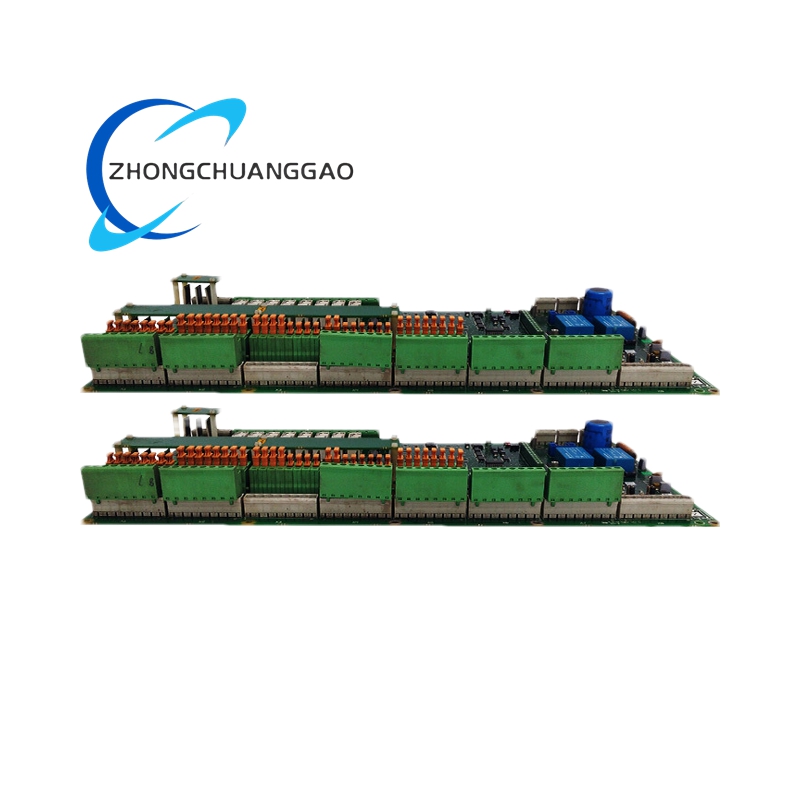

ABB 3ASC25H209 DATX110 Control Module

Product Short Description

Technical Specifications

Processor: Intel Atom Dual-Core D2550 1.86GHz (low-power design).
Memory: 2 x 204-pin DDR3 slots.
Storage: Supports mSATA SSD and 2.5″ SATA HDD.
Display: Integrated Intel GMA 3600 graphics with up to 640MB shared memory.
Network: 2 x Intel RTL8111E Gigabit Ethernet ports.
Audio: Realtek ALC662 six-channel high-fidelity controller.
I/O Interfaces:
- 1 x DC12V power input.
- 1 x DB15 VGA.
- 1 x HDMI.
- 2 x RJ45 LAN.
- 4 x USB 2.0.
- 5 x DB9 RS232 serial ports.
- 1 x 4-pin RS485 port.
- Microphone input/line output.
Expansion: 1 x Mini PCIe slot (with SIM card support).
Dimensions: 230 x 125 x 61 mm.
Weight: 2 kg (including packaging).
Power Input: Wide voltage range (6–30V DC).
Protection Class: IP20 (dust-resistant, indoor use).

Key Features

Multi-Protocol Support: Compatible with RS232, RS422, RS485, Ethernet (wired/wireless), GPRS, CDMA, and GSM.
High Reliability: Industrial-grade components ensure stable operation in temperatures ranging from -20°C to +70°C.
Flexible I/O Configuration: Supports digital/analog inputs/outputs for diverse field device integration.
Redundancy Support: Enables redundant communication paths for enhanced system availability.
Signal Isolation: Optical coupling reduces electrical interference.
Scalability: Modular design allows easy expansion for growing automation needs.
Diagnostic Capabilities: Built-in self-testing and fault detection for proactive maintenance.

Functional Capabilities

Data Processing: Executes control algorithms and processes real-time data from field devices.
Communication Management: Handles protocol conversion and data exchange between networks.
System Monitoring: Tracks device status and performance metrics continuously.
Remote Access: Supports mobile network standards (GPRS, CDMA, GSM) for remote configuration.

Application Scenarios

Manufacturing: Automates production lines, packaging machinery, and material handling systems.
Power Generation: Monitors and controls generators, transformers, and switchgear in thermal, hydro, and nuclear plants.
Renewable Energy: Manages wind turbine pitch control, solar inverter monitoring, and battery storage systems.
Transportation: Controls elevator systems, electric vehicle charging infrastructure, and railway signaling.
Building Automation: Regulates HVAC, lighting, and access control in commercial facilities.
Water/Wastewater: Monitors pump stations, treatment processes, and distribution networks.

Series and Variants
The 3ASC25H209 belongs to ABB’s ACS300 series of variable frequency drives (VFDs), which includes:

Advantages

Energy Efficiency: High-efficiency design reduces power consumption.
Precision Control: ±0.5% speed control accuracy ensures stable motor operation.
Ease of Use: Menu-driven interface simplifies configuration.
Durability: Aluminum alloy casing and IP20 rating protect against dust and vibrations.
Open Architecture: Supports OPC, ODBC/SQL, ActiveX, and DNA standards for seamless integration with third-party systems.
