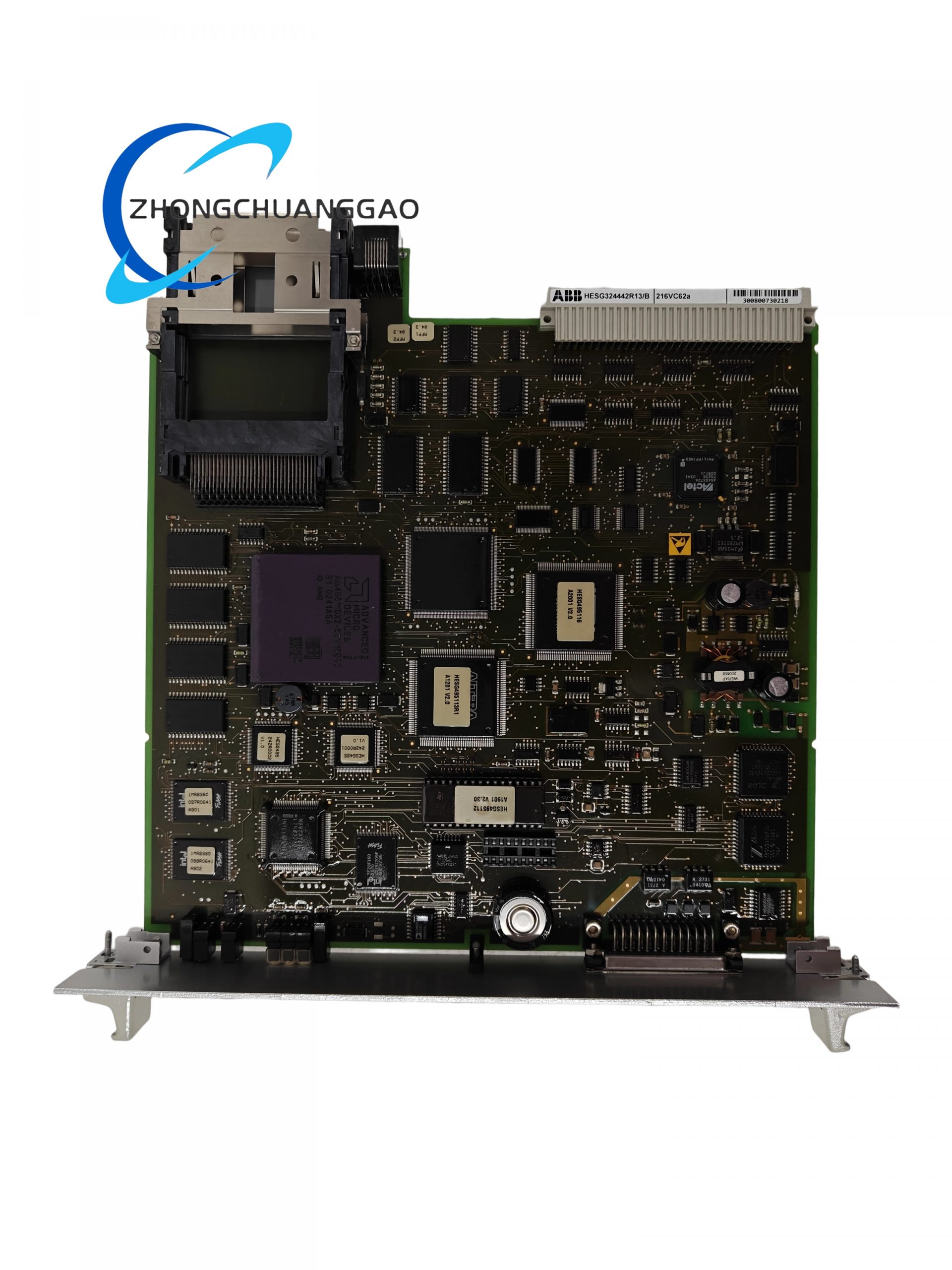

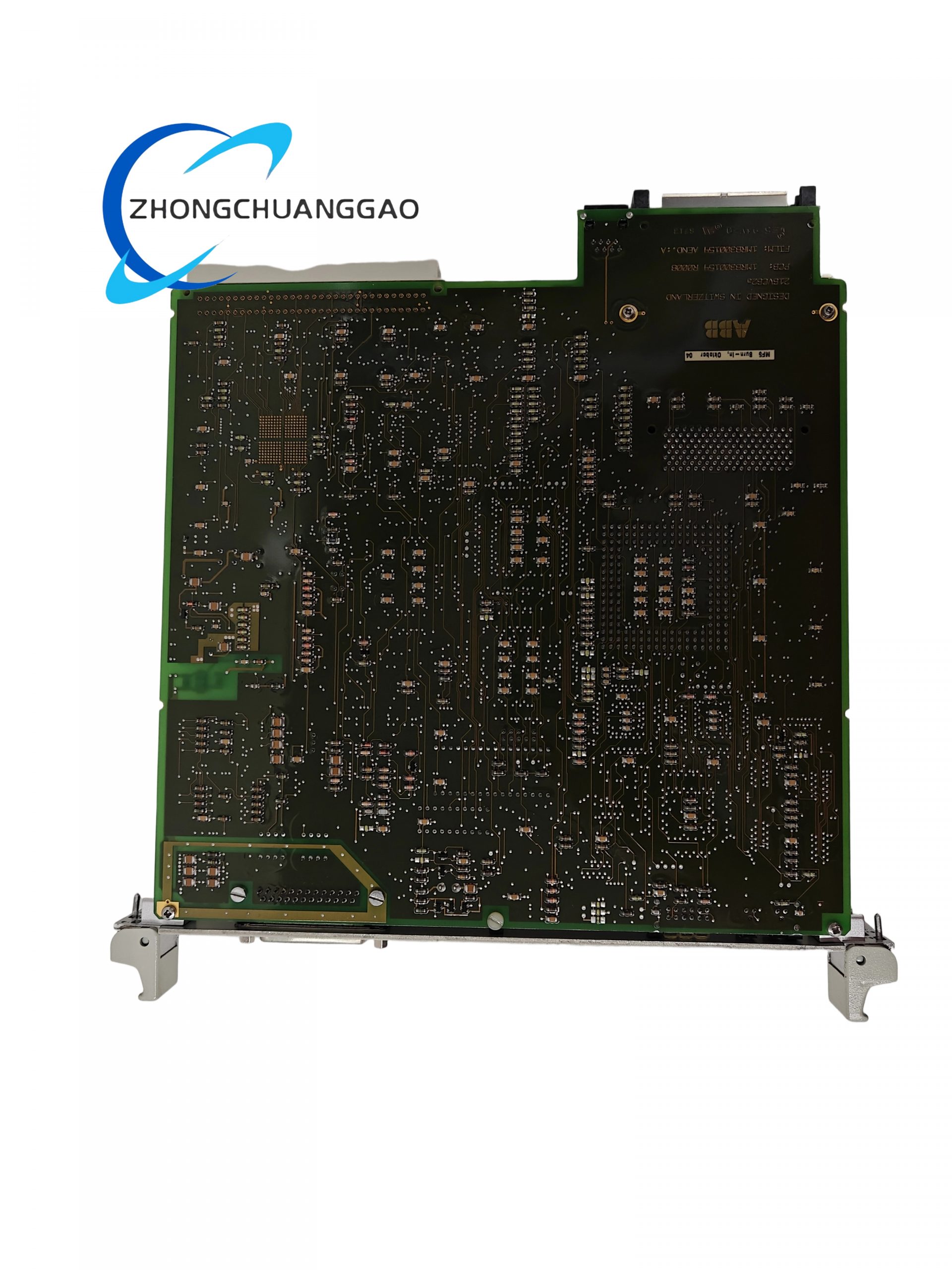

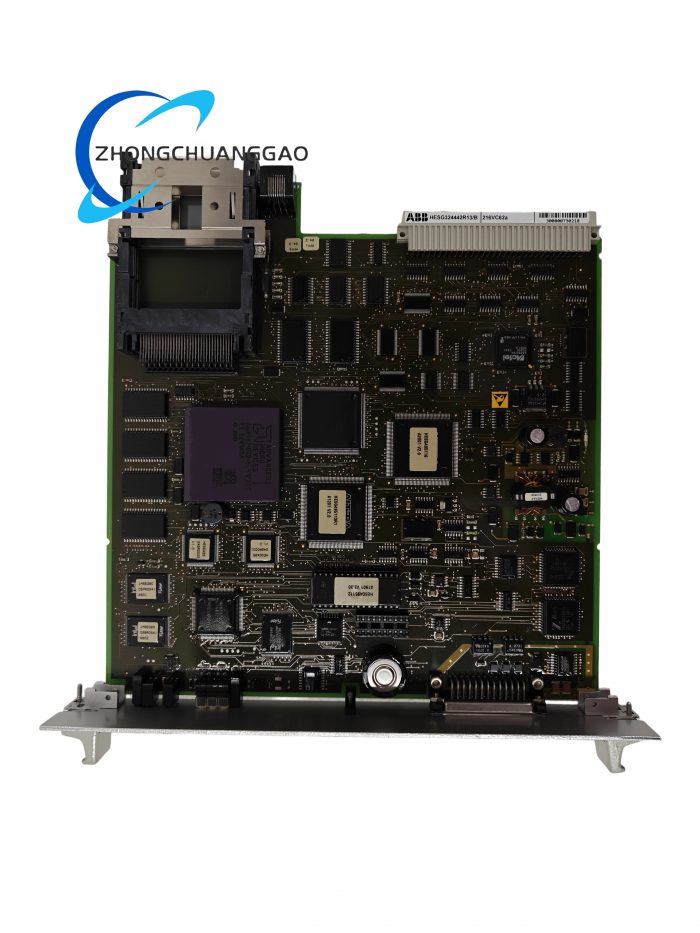

ABB 216VC62A HESG324442R13

Description

• Insulation Resistance: ≥ 100 MΩ (at 500 VDC, between isolated circuits)
• Power Supply: Derived from the Advant OCS / MasterPiece system backplane; 5 VDC (from system rack)
• Power Consumption: 3.5 W typical (max 4.0 W)
• Operating Temperature: -10°C to +55°C
• Storage Temperature: -40°C to +70°C
• Relative Humidity: 5% to 95% (non-condensing, at 40°C)
• Vibration Resistance: 5 Hz to 150 Hz, 0.15 mm amplitude (IEC 60068-2-6)
• Shock Resistance: 15 g acceleration, 11 ms duration (half-sine wave, IEC 60068-2-27)
• Mounting: Plug-in installation on Advant OCS / MasterPiece 200/300 system racks (compatible with standard system enclosures)
• Dimensions: 100 mm (width) × 160 mm (height) × 220 mm (depth) (approximate, per module housing)

• High Channel Density: Offers 16 independent input channels in a compact form factor, optimizing rack space usage in the DCS cabinet.
• Robust Isolation: Implements dual isolation (channel-to-channel and channel-to-backplane) to prevent cross-talk between signals and protect the system from voltage spikes or ground loops, enhancing operational stability.
• Fast Response Time: Delivers ≤ 1 ms response to input signal changes, ensuring real-time capture of critical discrete events (e.g., valve status, limit switch triggers) for timely control actions.
• Wide Voltage Tolerance: Supports an operating voltage range of 19.2 VDC to 30 VDC, adapting to fluctuations in field power supplies and ensuring consistent performance.
• Diagnostic Capabilities: Includes built-in fault detection for power supply anomalies and channel-level open/short circuit monitoring, with status indicators (LEDs) per channel to enable quick troubleshooting.
• System Compatibility: Fully integrated with Advant OCS and MasterPiece 200/300 DCS, supporting seamless communication with system controllers via the backplane and compatibility with ABB’s Control Builder programming software.
• Industrial-Grade Durability: Complies with IEC 60068 environmental standards for temperature, vibration, and shock, ensuring reliable operation in heavy-industry environments.

• Process Manufacturing: Used in chemical, petrochemical, and oil & gas plants to monitor discrete signals from field devices such as valve position switches, pump run/stop status, and pressure/temperature limit switches, supporting process control and safety interlocks.
• Power Generation: Integrated into thermal, hydro, or gas power plants to collect status signals from generator auxiliaries, circuit breakers, and cooling system components, enabling real-time monitoring of power generation processes.
• Water and Wastewater Treatment: Applied in water treatment facilities to track the status of pumps, valves, and level switches in filtration, sedimentation, and disinfection processes, ensuring compliance with water quality standards.
• Pulp and Paper Industry: Used in pulp mills and paper production lines to monitor discrete signals from rollers, cutters, and conveyor systems, supporting continuous production and quality control.
• Metallurgical Industry: Applied in steel, aluminum, and metal processing plants to collect status data from furnace doors, conveyor belts, and material handling equipment, ensuring safe and efficient metal production workflows.
