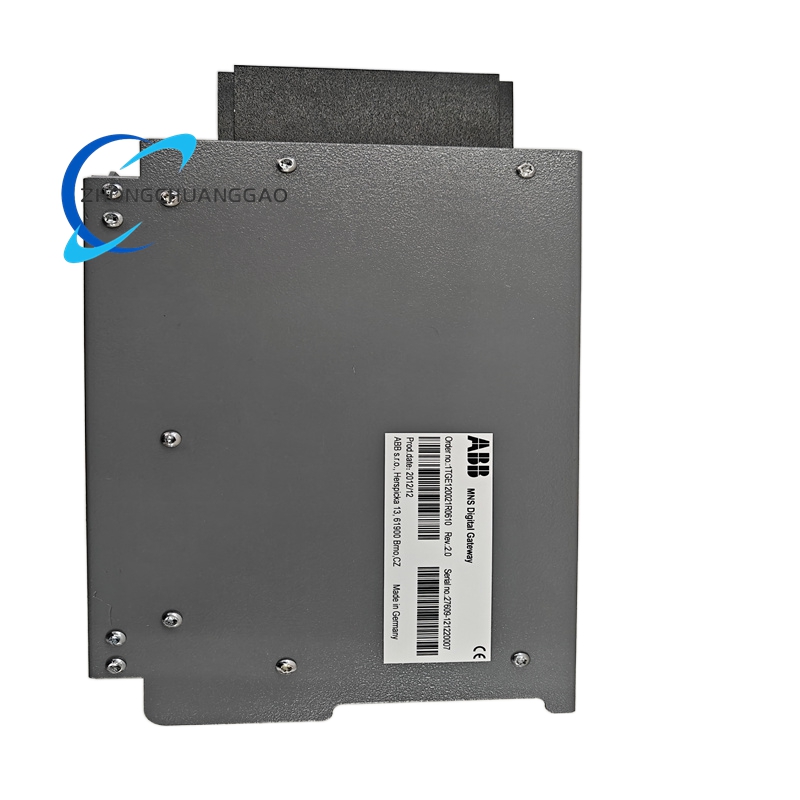

ABB 1TGE120021R0610 MLink Communication Gateway

Description

Technical Specifications

Communication & Interface

• Supported Protocols: Modbus TCP/RTU, Profibus DP, PROFINET IO, Ethernet/IP
• Physical Interfaces: Ethernet ports, RS485 serial port
• Networking Capabilities: Protocol conversion, data routing, network bridging
• Data Transmission: Real‑time, high‑accuracy data transfer for industrial control

Electrical Parameters

• Operating Voltage: 24 V DC (industrial standard)
• Power Consumption: Low‑profile, energy‑efficient design for cabinet integration
• Insulation & EMC: Complies with IEC 61000‑6‑2 (immunity) and IEC 61000‑6‑4 (emission) standards

Mechanical & Environmental

• Mounting: DIN‑rail mount (TH35‑7.5/15, IEC 60715)
• Dimensions: Compact form factor for space‑efficient control cabinet installation
• Weight: Lightweight industrial module design
• Operating Temperature: -25 °C to +55 °C
• Storage Temperature: -40 °C to +85 °C
• Humidity: 5%–95% RH (non‑condensing)
• Ingress Protection: IP20 (front face)
• Vibration/Shock Resistance: Meets IEC 60068 industrial environmental standards
• Certifications: CE, RoHS compliant

Key Features

• Multi‑Protocol Interoperability: Supports major industrial protocols (Modbus, Profibus, PROFINET, Ethernet/IP) for universal device connectivity.
• Hardware Version 2 Reliability: Enhanced hardware design ensures stable, uninterrupted communication in harsh industrial environments.
• Seamless MNS iS Integration: Plug‑and‑play compatibility with ABB MNS iS intelligent switchgear systems for direct data acquisition and control.
• Real‑Time Data Routing: Enables low‑latency data transfer between field devices, PLCs, DCS, SCADA, and cloud platforms.
• Flexible Network Configuration: Supports protocol conversion and network bridging to unify disparate industrial communication networks.
• Industrial Durability: Wide temperature range, high vibration resistance, and robust construction for continuous operation in demanding conditions.
• Easy Installation & Maintenance: DIN‑rail mounting and straightforward wiring reduce setup time and simplify system maintenance.
• High Compatibility: Works with a wide range of ABB automation systems and third‑party industrial devices.
• Remote Diagnostics Support: Facilitates remote monitoring, fault detection, and system troubleshooting via upper‑level control networks.

Application Scenarios

• Intelligent Power Distribution: Core communication component for ABB MNS iS switchgear in industrial power distribution systems.
• Motor Control Centers (MCCs): Connects motor starters, drives, and protection relays to central control systems for real‑time monitoring.
• Industrial Automation: Bridges field devices (sensors, actuators, PLCs) and enterprise networks in manufacturing and process industries.
• Data Centers: Monitors and manages power distribution equipment, ensuring reliable communication for critical infrastructure.
• Process Control: Enables data exchange in oil & gas, chemical, and pharmaceutical production facilities.
• Water & Wastewater Treatment: Connects pumps, valves, and instrumentation for automated process control and monitoring.
• Renewable Energy Systems: Integrates solar inverters, wind turbine controls, and grid connection equipment.
• Commercial Building Automation: Supports energy management, HVAC, and elevator control system communication.
• Marine & Offshore: Provides reliable communication for shipboard and offshore power distribution and control systems.
