Product Short Description
Product Introduction

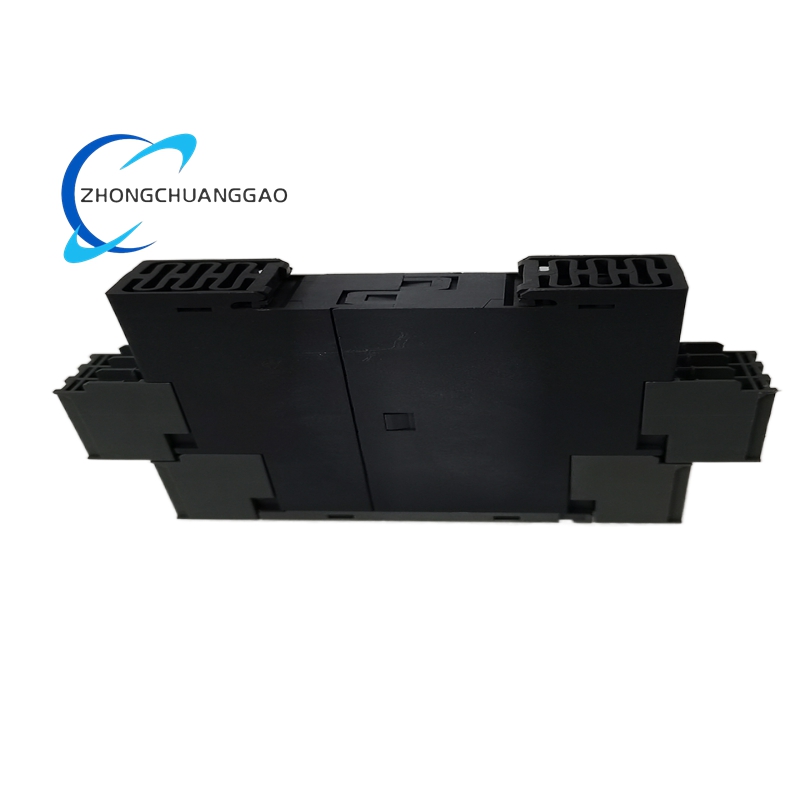

ABB 1SAR700012R0005 is a high-performance, compact pluggable interface and monitoring relay, designed for reliable signal switching, control, and equipment protection in industrial automation, electrical engineering, and building control systems. It integrates robust switching capabilities with precise monitoring functions, ensuring stable operation, fast response, and long service life in diverse industrial environments. This relay delivers efficient electrical isolation, dependable contact switching, and flexible configuration to meet the demands of modern control circuits.
Description
Technical Specifications
- Coil Voltage: 110V AC
- Contact Configuration:
- 2 C/O (Single Pole Double Throw) contacts, rated at 12A
- 3 C/O (Single Pole Double Throw) contacts, rated at 10A
- 4 C/O (Single Pole Double Throw) contacts, rated at 6A
- Contact Material: Cadmium-free, ensuring environmental compliance and reliable conductivity
- Dimensions:
- Width (on socket): 27 mm
- Depth: 27.5 mm
- Mounting: Suitable for DIN-rail mounting, compatible with standard and logic sockets
- Terminals: Cage spring clamp, fork-type, or screw terminals for secure wiring
- Operating Temperature: -20°C to +70°C
- Indicator: Optional integrated LED status indicators for coil energization and contact status
- Test Button: Built-in manual test button for operation and output contact locking (removable if required)
- Protection: Basic over-current and short-circuit protection for internal circuits
- Standards: Complies with relevant IEC and international industrial relay standards
Functional Features
- High Switching Reliability: Features stable contact performance with low contact resistance, minimizing signal loss and ensuring consistent switching for low and high load currents.
- Compact & Space-Saving: Slim 27mm width design optimizes panel space, ideal for high-density control cabinet installations.
- Pluggable Design: Supports quick installation, replacement, and maintenance without rewiring, reducing system downtime.
- Manual Operation & Testing: Equipped with an integrated test button to manually trigger contacts and verify functionality during commissioning or troubleshooting.
- Visual Status Feedback: Optional LED indicators provide clear real-time visibility of coil power and relay operating status.
- Environmental Compatibility: Cadmium-free contact material meets RoHS environmental directives; resistant to vibration, dust, and humidity for harsh industrial settings.
- Flexible Wiring: Multiple terminal options (cage spring clamp, fork, screw) accommodate various wiring practices and ensure secure connections.
- Wide Application Compatibility: Compatible with standard relay sockets and control systems, offering universal integration.
Application Scenarios
- Industrial Automation Systems:
- Control of contactors, solenoid valves, and small motors in production lines.
- Signal switching and isolation in PLC (Programmable Logic Controller) I/O circuits.
- Interlocking and safety control loops for machinery and process equipment.
- Electrical Distribution & Power Control:
- Overload, under-voltage, and phase monitoring and protection in power distribution panels.
- Switching control for capacitor banks and lighting systems.
- Building Automation & HVAC:
- Control of heating, ventilation, and air conditioning (HVAC) components (fans, pumps, dampers).
- Signal monitoring and switching in fire alarm and security systems.
- Manufacturing & Process Industries:
- Temperature, pressure, and flow monitoring circuits in food & beverage, pharmaceutical, and chemical processing.
- Control and protection of transformers, generators, and motor control centers.
- Machine Building & Panel Construction:
- Compact control circuits for packaging machines, assembly lines, and material handling equipment.
- Universal interface relay for custom control panels requiring reliable signal switching.
