Product Short Description
Technical Specifications
-

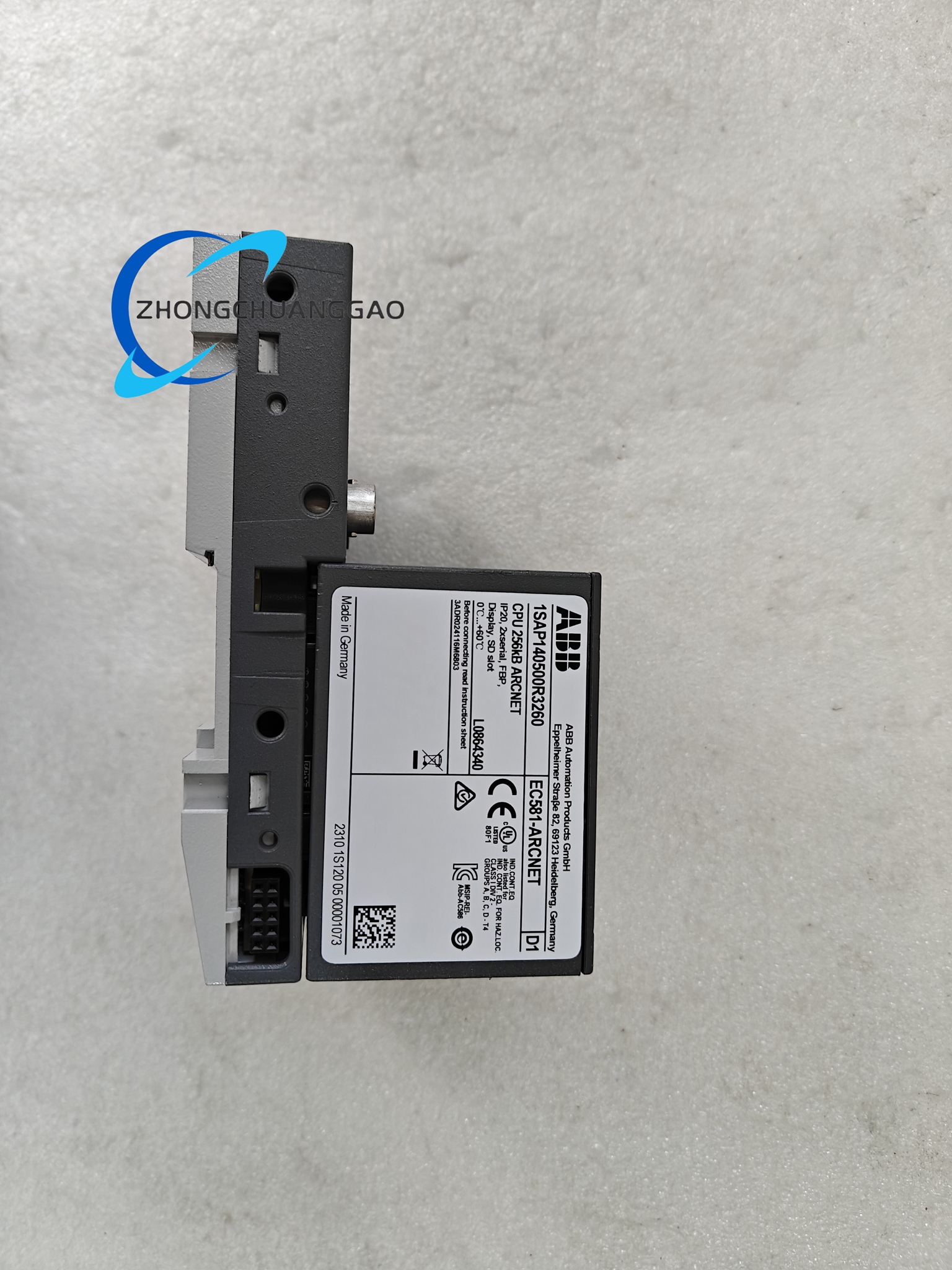

Type: Compact PLC CPU module for AC500 family
-
Processor: 32-bit ARM core
-
Memory: 256 kB program memory, 32 kB data memory
-
Power Supply: 24 V DC ±20 %
-
Communication Ports
– ARCNET 2.5 Mbit/s, fiber-optic or coaxial interface
– 2 × RS-232/RS-485, software-selectable
Description
-

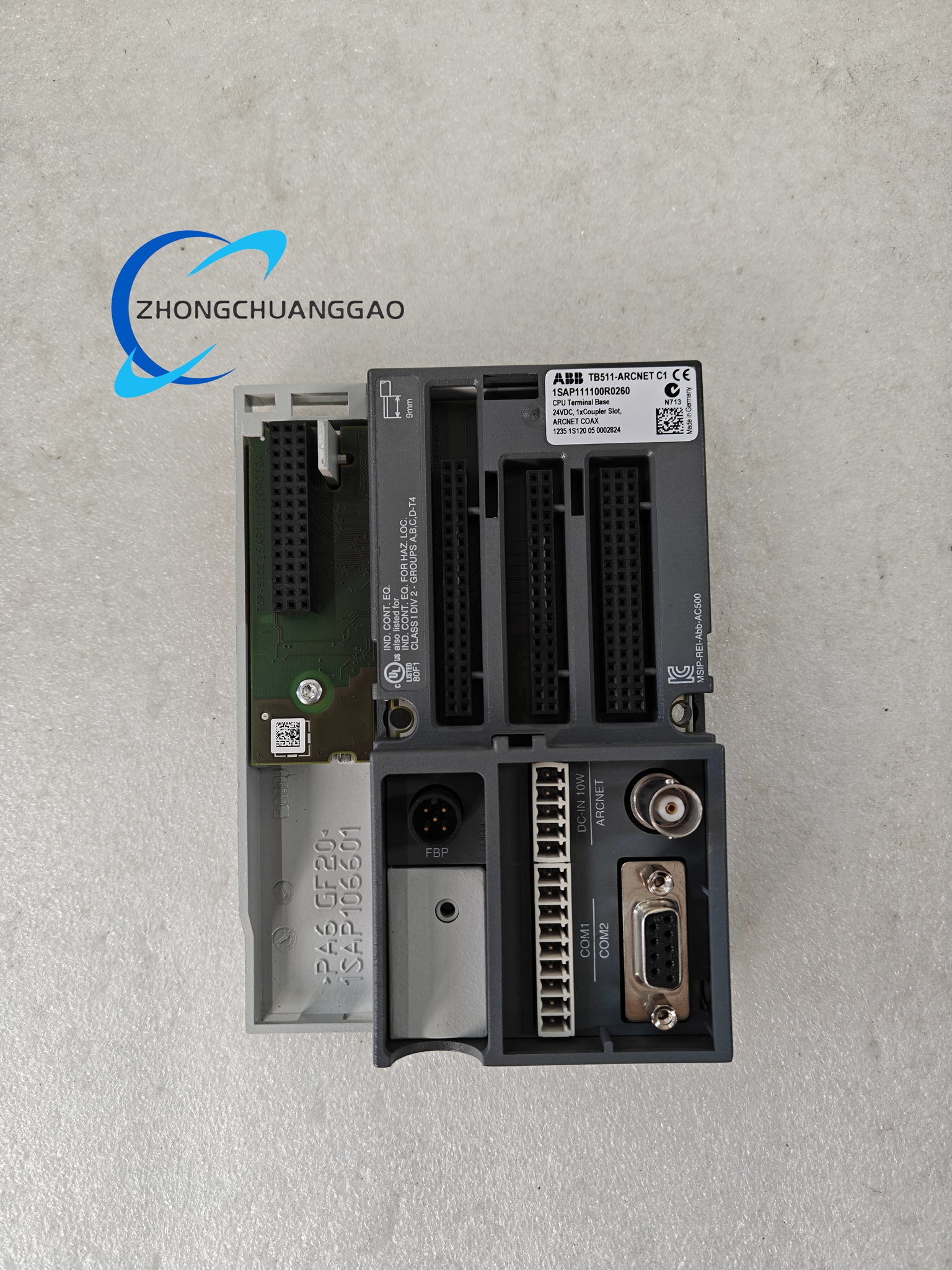

Expansion: FBP (FieldBusPlug) slot for Profibus, DeviceNet, CANopen or Ethernet modules
-
Storage: SD-Card slot for program backup, firmware updates and data logging
-

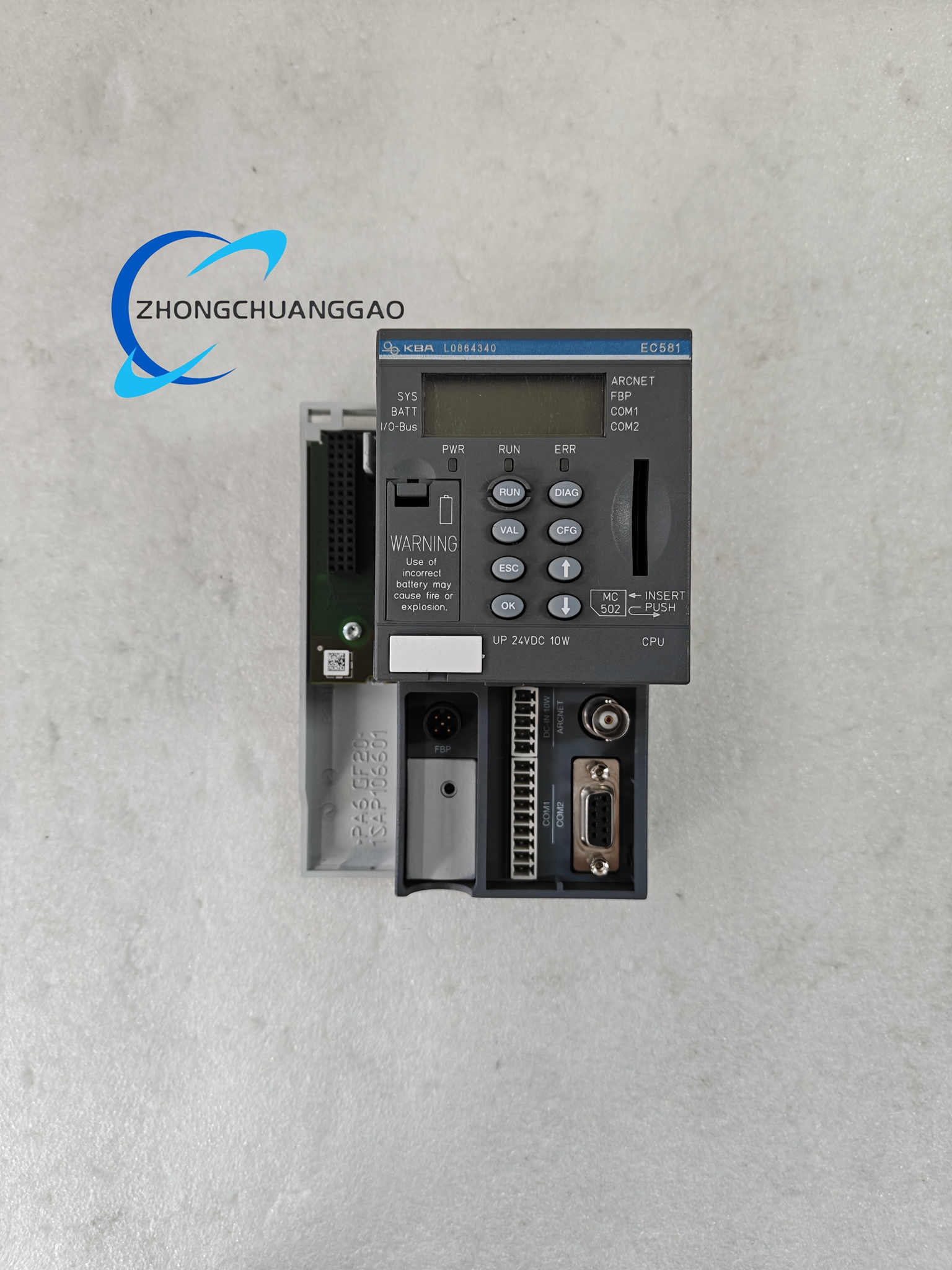

Display & Keypad: Integrated 128 × 64 LCD and six-key keypad for diagnostics and manual control
-
Mechanical
– Dimensions: 60 mm × 70 mm × 80 mm
– Weight: 0.11 kg
– Mounting: DIN rail 35 mm -
Environmental
– Operating temperature: –25 °C to +60 °C
– Storage temperature: –40 °C to +85 °C
– Humidity: 5 % – 95 % non-condensing
– Protection: IP20
oplus_10485792
Functional Features
-
Real-time deterministic ARCNET network for high-speed distributed I/O
-
Hot-swap capability and online firmware upgrade without stopping the process
-
Redundant power inputs and watchdog timer for maximum uptime
-
Configurable via ABB Automation Studio or CoDeSys V3; supports IEC 61131-3 languages
-
Integrated web server for remote diagnostics and maintenance
oplus_10485792
Application Scenarios
-
Packaging and printing machines: KBA printing presses use this CPU for drive and register control
-
Industrial automation lines: AC500-based distributed I/O islands for automotive, food & beverage, and textile machines
-
Process control: small batch reactors, filling lines, and material handling systems
-
Building automation: HVAC controllers and lighting nodes over ARCNET backbone
-
Remote telemetry: water treatment skids and renewable-energy inverters communicating via ARCNET fiber
