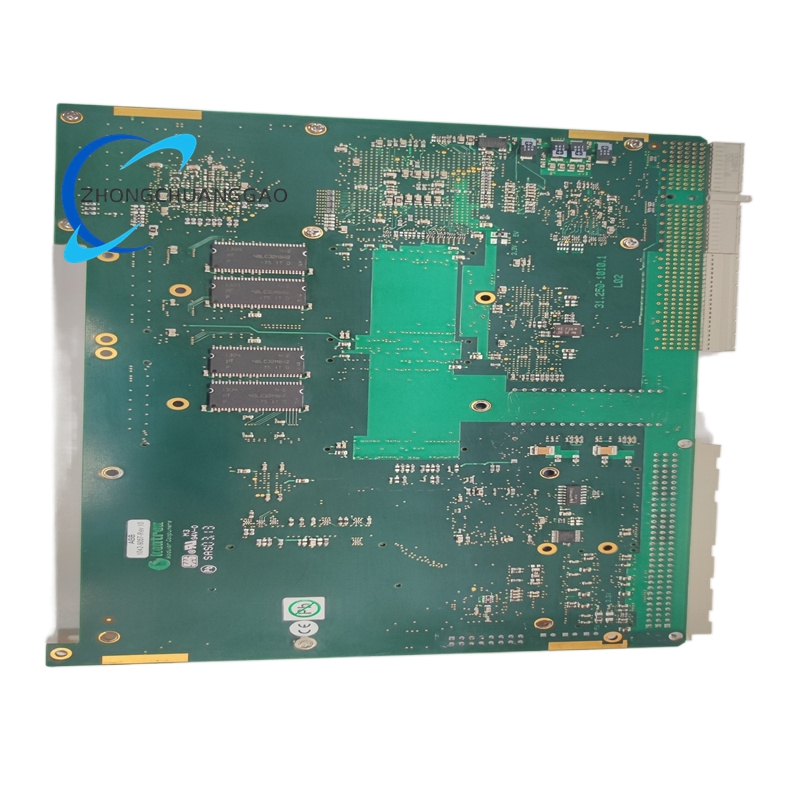

The ABB 1MRK002246-BD is a high-performance industrial module designed for critical automation and power system applications. It functions as a DC digital input module for signal acquisition and conversion, and also serves as a power supply board for ABB REL670 and CP6201 relays. Built with industrial-grade components, it ensures reliable operation in harsh environments, supporting real-time monitoring, control, and stable power distribution for industrial automation systems and power grids.
Description
Technical Specifications
Core Electrical Parameters
- Input Voltage: 24 VDC
- Output Voltage: 24 VDC
- Current Rating: 5 A
- Power Rating: 120 W
- Response Time: ≤ 20 ms
- Accuracy: Up to 2%
- Isolation: Photoelectric isolation for strong anti-interference capability
Physical & Environmental
- Dimensions: 140 mm × 100 mm × 40 mm
- Weight: 0.5 kg (1.1 lbs)
- Mounting: DIN-rail mounted
- Operating Temperature: -20°C to +55°C (industrial standard)
- Certifications: CE, UL, CSA compliant
- Warranty: 12-month manufacturer warranty
Key Features
Signal Processing & Input
- High-Speed Response: ≤ 20 ms response time for real-time industrial control
- Photoelectric Isolation: Blocks strong electrical interference, ensuring signal integrity
- Multi-Channel Input: Supports multiple DC digital input channels for field device connection
- Signal Conversion: Converts field DC digital signals (from switches, sensors, actuators) into CPU-processable level signals
Power Supply & Reliability
- Stable Power Output: Delivers 24 VDC / 5 A for ABB relays and associated devices
- Hot-Plug Capability: Supports hot-plug implementation for easy maintenance
- Industrial Durability: High-quality components for long-term operation in harsh conditions
- Self-Diagnosis: Built-in fault detection for quick troubleshooting
Communication & Integration
- Modbus TCP Support: Flexible communication interface for system integration
- System Compatibility: Seamlessly integrates with ABB AC500 series, REL670, and CP6201 systems
- Remote Monitoring: Enables remote status monitoring and control
