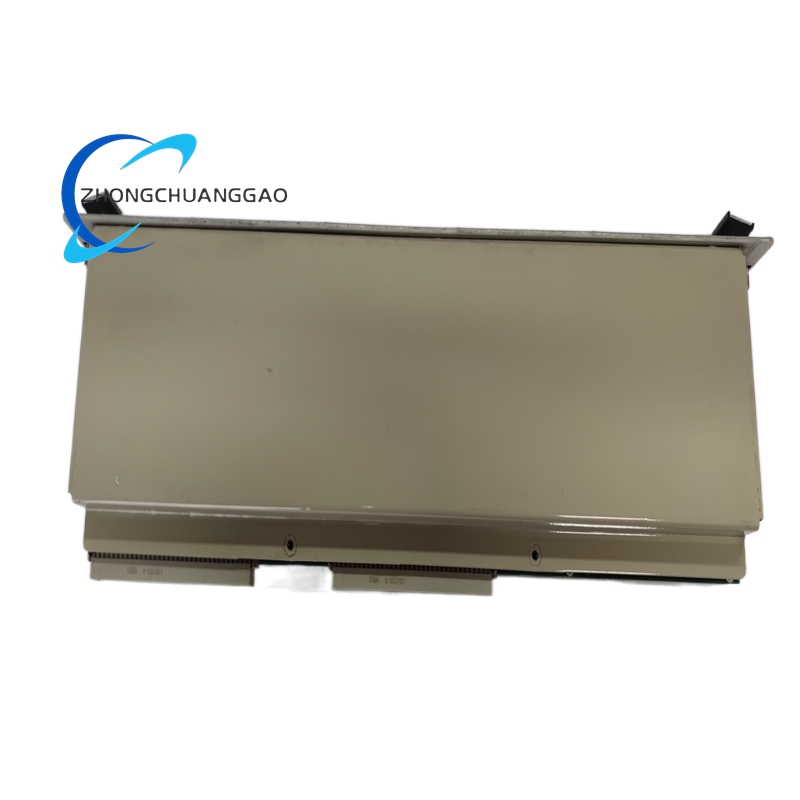

ABB 086388-001 LSP Linear Stepper Motor Control PWA

Description

Technical Specifications

Core Performance Parameters

• Product Series: LSP (Linear Stepper Product) Series
• Function: Linear Stepper Motor Control Module (PWA)
• Stepping Angle: 1.5° per step (standard)
• Rated Voltage: 24 V DC (nominal)
• Rated Current: 2.8 A (per phase)
• Rated Torque: 0.75 N·m (rotary equivalent)
• Holding Thrust: 10 N·m (static linear holding force)
• Maximum Linear Speed: 800 mm/s
• Operating Frequency Range: 0.5 kHz to 20 kHz (pulse input)
• Control Interface: Digital pulse/direction input for motion commands

Electrical & Insulation

• Power Consumption: Maximum 67.2 W (24 V DC × 2.8 A)
• Insulation Class: Class B (130°C)
• Isolation Voltage: 1500 V AC (between control and power circuits)
• Protection Features: Overcurrent protection, overvoltage protection, short-circuit protection, and thermal shutdown

Mechanical & Physical

• Dimensions: 150 mm (L) × 80 mm (W) × 50 mm (H)
• Weight: Approximately 1.2 kg
• Mounting: Panel or chassis mounting (standard industrial mounting holes)
• Enclosure Rating: IP65 (dust-tight and protected against low-pressure water jets)
• LED Indicators: Power status, motion active, fault/alarm, and communication status LEDs

Environmental Ratings

• Operating Temperature: -20°C to +50°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant (5–500 Hz, 1 g rms)
• Shock Resistance: IEC 60068-2-27 compliant (15 g, 11 ms half-sine pulse)
• MTBF: Exceeds 100,000 hours under continuous industrial operation
• Certifications: CE, RoHS compliant, and industrial EMC standards (IEC 61000-6-2/4)

System Compatibility

• Control System Integration: Compatible with ABB PLCs, DCS systems, and third-party motion controllers
• Communication Interfaces: Digital I/O for pulse/direction control; optional fieldbus support (Modbus RTU, CANopen) via expansion modules
• Motor Compatibility: Designed exclusively for ABB LSP series linear stepper motors

Key Features

High-Precision Linear Motion Control

• Microstepping Capability: Supports microstepping modes for ultra-smooth motion and sub-micron positioning accuracy
• Closed-Loop Feedback Option: Integrates with linear encoders for closed-loop position control and error correction
• Programmable Motion Profiles: Configurable acceleration, deceleration, and speed profiles for optimized motion sequences
• Repeatable Positioning: Delivers consistent positioning accuracy within ±0.01 mm for high-precision applications

Industrial-Grade Reliability

• Robust Construction: Industrial-grade components and PCB design for continuous operation in harsh environments
• Comprehensive Protection: Multi-layer protection against electrical faults, overheating, and mechanical overloads
• IP65 Enclosure: Sealed design prevents dust and moisture ingress, suitable for harsh industrial settings
• Long Service Life: High-quality materials and thermal management ensure extended operational life

Flexible Integration & Configuration

• Compact Form Factor: Space-saving design optimizes installation in tight machinery enclosures
• Easy Wiring: Standard terminal blocks for simplified field wiring and maintenance
• Modular Expansion: Supports additional interface modules for enhanced communication and control capabilities
• User-Friendly Setup: Simplified configuration via DIP switches or software tools for quick deployment

Advanced Diagnostic & Monitoring

• Real-Time Status Monitoring: LED indicators provide immediate visual feedback on operational status
• Fault Detection: Built-in diagnostics for overcurrent, overvoltage, thermal, and communication faults
• Error Logging: Stores fault codes for troubleshooting and predictive maintenance
• Remote Monitoring: Optional remote access for performance monitoring and parameter adjustment

Energy-Efficient Operation

• Low Power Consumption: Optimized drive circuitry minimizes energy usage during operation and standby modes
• Dynamic Power Management: Adjusts power output based on load requirements for energy efficiency
• Thermal Efficiency: Efficient heat dissipation design reduces operating temperatures and extends component life

Application Scenarios

Precision Manufacturing & Assembly

• Semiconductor Manufacturing: Wafer handling, die bonding, and precision positioning in cleanroom environments
• Electronics Assembly: PCB component placement, soldering, and inspection systems
• Automated Assembly Lines: Precision part insertion, alignment, and packaging operations
• Optical Equipment: Lens positioning, laser alignment, and optical component assembly

Robotics & Automation

• Industrial Robots: Linear axis control for pick-and-place, material handling, and assembly robots
• Collaborative Robots (Cobots): Precise linear motion for safe human-robot collaboration tasks
• Gantry Systems: Multi-axis linear control for large-scale material handling and machining
• Mobile Robots: Linear actuator control for autonomous guided vehicles (AGVs) and mobile platforms

Medical & Laboratory Equipment

• Medical Devices: Precision positioning in diagnostic equipment, surgical robots, and laboratory analyzers
• Laboratory Automation: Sample handling, liquid handling, and analytical instrument positioning
• Pharmaceutical Manufacturing: Tablet pressing, capsule filling, and packaging line control
• Biotechnology Equipment: Cell culture handling, microfluidic control, and laboratory robotics

Machine Tools & Metalworking

• CNC Machining: Linear axis control for milling, lathe, and grinding machines
• Laser Cutting/Engraving: Precise beam positioning and material handling systems
• Wire EDM Machines: Electrode positioning and workpiece movement control
• Metal Forming: Press brake control, stamping, and bending operations

Packaging & Material Handling

• Packaging Machinery: Film positioning, sealing, and labeling control
• Printing Equipment: Paper feed, print head positioning, and web tension control
• Conveyor Systems: Precision indexing and positioning for sorting and distribution lines
• Palletizing Systems: Linear motion control for automated pallet loading and unloading

Testing & Measurement Equipment

• Coordinate Measuring Machines (CMM): Precision linear axis control for dimensional inspection
• Material Testing Machines: Tensile, compression, and fatigue testing positioning systems
• Non-Destructive Testing (NDT): Sensor positioning for ultrasonic, X-ray, and visual inspection
• Calibration Equipment: High-precision positioning for metrology and calibration tools
