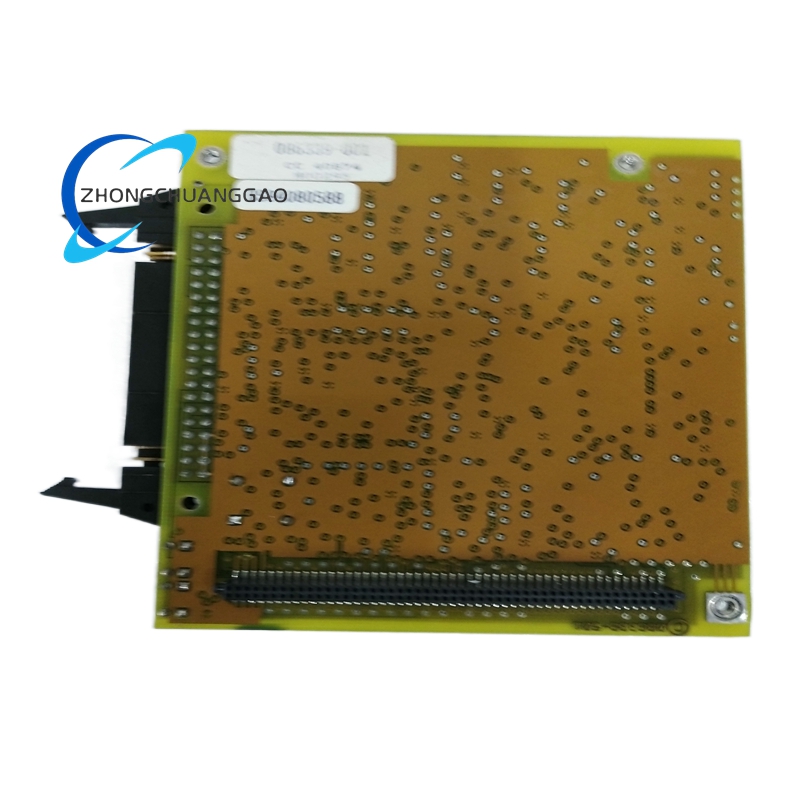

ABB 086339-001 PWA Sensor Micro-101 Intelligent Measurement Interface Board

Description

Technical Specifications

Functional Features

Multi-Channel Signal Acquisition & Conditioning

• Integrated I/O Capacity: Combines 4 analog inputs, 8 digital inputs, 2 analog outputs, and 4 digital outputs in one compact module, providing comprehensive signal handling for diverse sensors and actuators.
• High-Precision Analog Processing: Delivers accurate measurement and conversion of analog signals within the -10 V to +10 V range, ensuring high-fidelity data capture from pressure, temperature, displacement, and flow sensors.
• Optical Isolation: Features full optical isolation on all I/O channels (2.5 kV isolation voltage) to protect the control system from electrical noise, transient voltages, and ground loops, enhancing signal stability and system safety.
• Sensor Compatibility: Supports connection to a wide array of industrial sensors, including proximity switches, encoders, pressure transducers, temperature sensors, and linear displacement sensors, offering flexible deployment options.

Robust Communication & System Integration

• RS485 Serial Communication: Equipped with an RS485 interface for reliable long-distance data transmission, enabling seamless integration with ABB AC500 PLCs and other host controllers in distributed control networks.
• Standardized Connector: Uses a 30-pin DIN 41612 connector for secure, industry-standard wiring, ensuring stable connections and simplifying installation and replacement.
• Plug-and-Play Compatibility: Designed for direct integration into ABB control systems, reducing configuration time and enabling quick deployment within AC500 and System 800xA® environments.
• Compact DIN-Rail Mount: Space-efficient form factor (110×100×15 mm) for standard DIN-rail mounting, optimizing cabinet space and supporting dense I/O configurations in control panels.

Industrial-Grade Reliability & Durability

• Wide Environmental Tolerance: Operates stably across a temperature range of -20 °C to +70 °C and tolerates 5%–95% non-condensing humidity, suitable for harsh manufacturing, process, and outdoor industrial settings.
• Anti-Interference Design: Multi-layer PCB construction and advanced filtering technologies suppress electromagnetic interference (EMI) and radio frequency interference (RFI), maintaining signal integrity in electrically noisy environments.
• Long-Term Stability: Constructed with high-grade industrial components to ensure consistent performance and minimal drift over extended operational periods, supporting 24/7 continuous operation.
• Compliance & Safety: Fully certified to CE, RoHS, and UL standards, meeting global industrial safety, environmental, and EMC requirements for worldwide deployment.

Easy Installation & Maintenance

• Modular Construction: Compact, standalone module design allows for quick installation, removal, and replacement without disrupting adjacent modules or system wiring, minimizing downtime.
• Simplified Wiring: Clearly defined I/O terminals and standardized connector pinouts reduce wiring errors and simplify field connections during setup and maintenance.
• Diagnostic Capabilities: Built-in circuit monitoring supports system-level diagnostics, enabling quick identification of I/O faults, sensor failures, or communication errors for efficient troubleshooting.
• Low Power Consumption: Energy-efficient 24 VDC operation minimizes power draw and heat generation, supporting cooler running and extended service life in enclosed control cabinets.

Application Scenarios

Industrial Automation & Manufacturing

• Automated Production Lines: Integrated into assembly lines, packaging machines, and material handling systems for real-time monitoring of position, pressure, and flow, ensuring precise process control.
• Machine Tools: Used in CNC machines, lathes, and milling equipment to acquire sensor data for tool position monitoring, vibration detection, and operational safety interlocks.
• Robotics & Handling Systems: Connects to encoders and proximity sensors in industrial robots and automated guided vehicles (AGVs) for motion control, position feedback, and collision avoidance.
• Food & Beverage Processing: Deployed in filling, sealing, and packaging machinery for hygienic, reliable monitoring of temperature, pressure, and conveyor speed in wash-down environments.

Process Control & Energy

• Oil & Gas Industry: Installed in pumping stations, pipelines, and refining units for monitoring pressure, flow, and level, ensuring safe and efficient operation in hazardous areas.
• Power Generation & Distribution: Used in power plants and substations for acquiring analog signals from voltage, current, and temperature sensors, supporting grid stability and equipment protection.
• Chemical & Pharmaceutical Plants: Provides reliable signal conditioning for sensors monitoring corrosive fluids, temperature, and pressure in reactors and mixing systems.
• Water & Wastewater Treatment: Monitors flow rates, liquid levels, and water quality parameters in treatment facilities, supporting automated process control and resource management.

Building & Infrastructure Automation

• HVAC Systems: Integrates with temperature, humidity, and pressure sensors in commercial HVAC control systems for efficient climate management.
• Transportation Systems: Used in elevators, escalators, and conveyor systems for position sensing, speed monitoring, and safety control in airports, subway stations, and logistics centers.
• Smart Buildings: Connects to occupancy sensors, flow meters, and energy meters for building automation, energy management, and facility monitoring.

General Industrial Control

• PLC Expansion I/O: Serves as an expansion module for ABB AC500 PLCs, extending I/O capacity for small-to-medium automation projects.
• Equipment Monitoring: Provides distributed I/O for remote monitoring of pumps, fans, compressors, and other rotating equipment to support predictive maintenance programs.
• Test & Measurement Systems: Used in industrial test benches for data acquisition from sensors during product testing and quality control.
