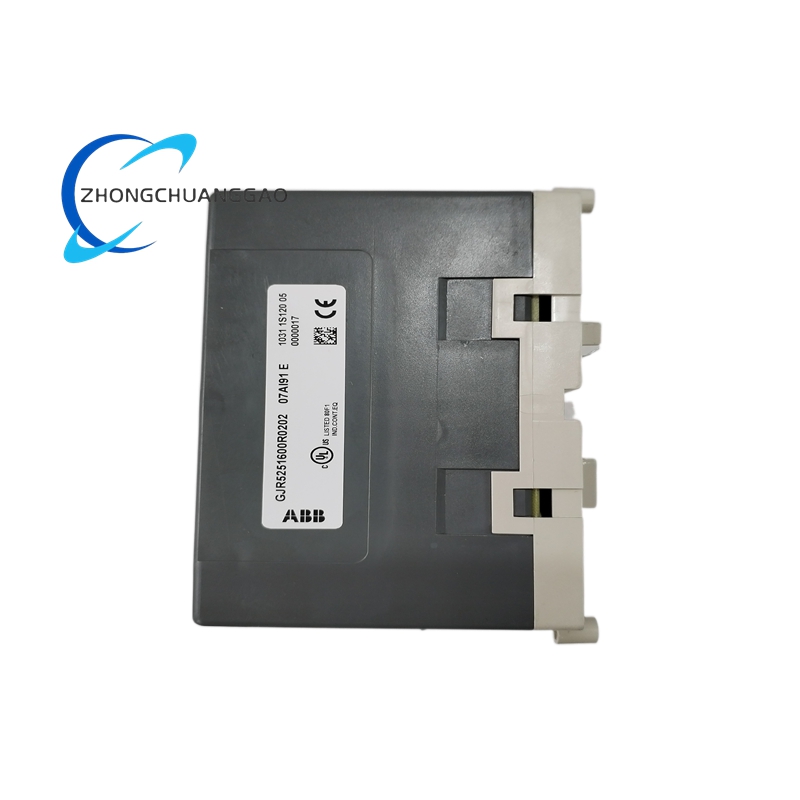

ABB 07AI91E 8‑Channel Universal Analog Input Module (AC31 Series)

Description

Technical Specifications

Electrical & Signal Parameters

• Input Channels: 8 independent, configurable analog input channels
• Supported Input Types:
  • Thermocouples: J, K, S types with built‑in linearization
  • RTDs: PT100, PT1000 (1‑wire, 2‑wire, 3‑wire configurations)
  • Voltage: ±50 mV, ±500 mV, ±5 V, ±10 V DC
  • Current: 0–20 mA DC
• Resolution: 12‑bit + sign (4096 discrete levels)
• Accuracy: ±0.1% of full scale (FS) for precise measurement
• Isolation: 2500 V RMS galvanic isolation between channels and system bus
• Power Supply: 24 V DC industrial power input
• Power Consumption: ≤3 W (low‑energy operation)
• Communication Interface: CS31 fieldbus slave (electrically isolated)
• Addressing: DIP switch configurable module address
• Response Time: ≤20 ms per channel for real‑time data acquisition

Mechanical & Physical Parameters

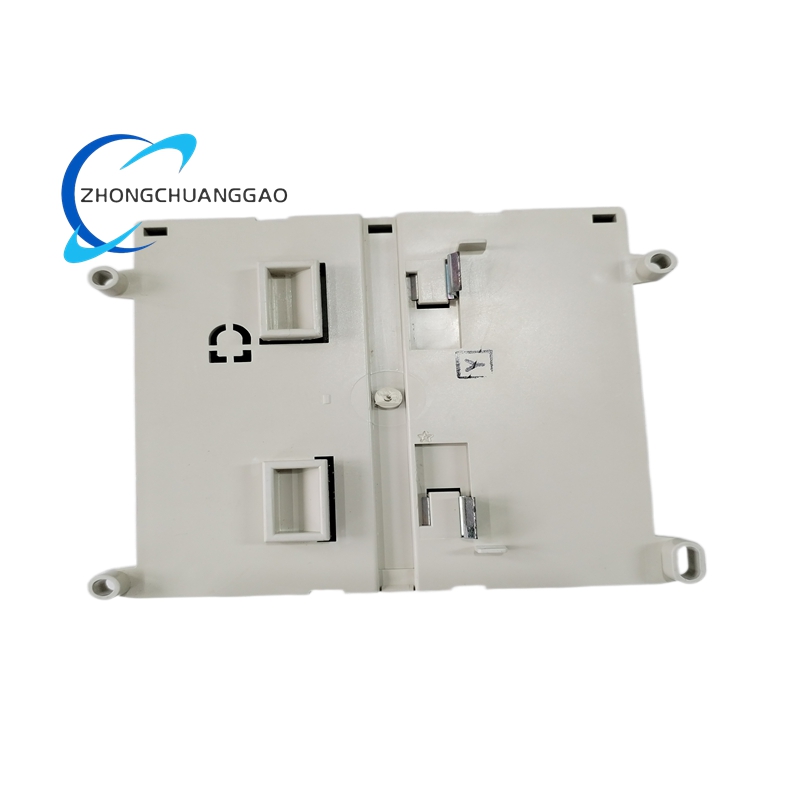

• Form Factor: Compact DIN‑rail mountable module
• Dimensions: 140 mm × 85 mm × 120 mm
• Weight: 0.48 kg (lightweight for flexible installation)
• Terminals: Pluggable screw terminals (0.08–1.5 mm² cable capacity)
• Protection Class: IP20 (for enclosed control cabinet integration)

Environmental & Compliance

• Operating Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C
• Humidity: 5%–95% RH (non‑condensing)
• Vibration/Shock: Complies with IEC 60068‑2‑6 (vibration) and IEC 60068‑2‑27 (shock) standards
• Protection Features: Overvoltage, overcurrent, and short‑circuit protection
• Certifications: CE, CSA, IEC 61131‑2, and ABB industrial quality standards

System Compatibility

• Primary System: ABB AC31 PLC series
• Communication Protocols: CS31 fieldbus
• Software Support: Compatible with ABB AC31 programming software (Control Builder)
• Hot‑Swappable: Supports online replacement without system shutdown

Key Features

• Universal Input Compatibility: Supports thermocouples, RTDs, voltage, and current signals in one module
• High‑Precision Conversion: 12‑bit resolution and ±0.1% FS accuracy for reliable process data
• Galvanic Isolation: 2500 V RMS isolation eliminates ground loops and electrical noise
• Built‑in Linearization: Automatic linearization for thermocouples and RTDs simplifies configuration
• Comprehensive Diagnostics: Real‑time channel status monitoring and fault detection
• Robust Industrial Design: Resists vibration, shock, and temperature fluctuations
• Easy Configuration: DIP switch addressing and software‑configurable input types
• Low Power Consumption: Minimizes heat generation in control cabinets
• Seamless Integration: Direct compatibility with ABB AC31 PLC systems via CS31 bus
• Flexible Wiring: Pluggable terminals for quick installation and maintenance

Application Scenarios

• Industrial Process Control: Monitors temperature, pressure, flow, and level in chemical, pharmaceutical, and food processing plants
• Manufacturing Automation: Controls variables in metalworking, plastic injection molding, and assembly lines
• HVAC Systems: Monitors temperature and pressure in building automation and climate control systems
• Water & Wastewater Treatment: Acquires signals for pump control, flow measurement, and water quality monitoring
• Power Generation: Monitors turbine temperature, generator voltage, and substation parameters
• Mining & Heavy Industry: Controls crusher, mill, and conveyor motor temperatures and pressures
• Packaging Machinery: Monitors packaging line temperature, tension, and pressure variables
• System Retrofit: Direct replacement for legacy analog input modules in ABB AC31 systems
