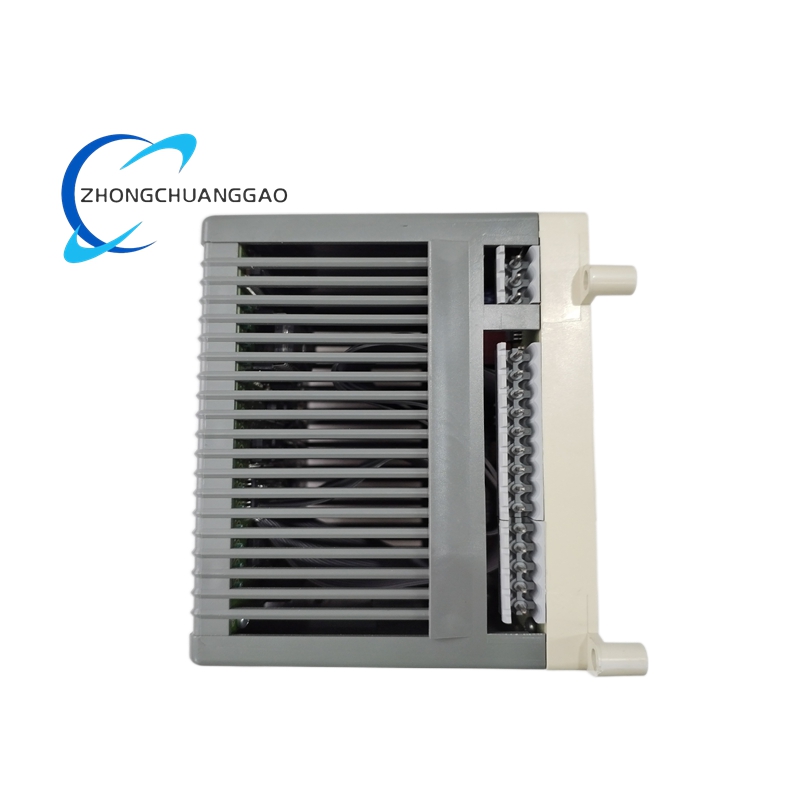

ABB 07AI91 Analog Input Module

Description

Technical Specifications

Core Electrical Parameters

• Input Channels: 8 configurable analog input channels
• Resolution: 12 bits + sign (16‑bit data format per channel)
• Total Error: < ±0.5% of full‑scale range
• Input Signal Types (Configurable in Pairs):
  • Voltage: ±10 V, ±5 V, ±500 mV, ±50 mV
  • Current: 0–20 mA, 4–20 mA (requires external 250 Ω shunt resistor)
  • RTD: Pt100, Pt1000 (‑50°C to +400°C, with linearization)
  • Thermocouples: Types J, K, S (with linearization)
• Power Supply: 24 V DC (nominal)
• Isolation Voltage: Electrical isolation between CS31 bus and field inputs
• Communication Interface: CS31 system bus (slave mode)
• Module Addressing: Configurable via DIL switches

Mechanical & Physical Specifications

• Dimensions: 140 mm × 85 mm × 120 mm
• Net Weight: 0.3 kg
• Gross Weight: 0.48 kg
• Protection Rating: IP20 (front panel)
• Cable Compatibility: Shielded cables (max length: 50 m for standard, 200 m for 0.5 mm²+ cross‑section)
• Terminals: Screw terminals for field wiring and bus connection

Environmental & Reliability Ratings

• Operating Temperature: 0°C to +55°C
• Storage Temperature: ‑40°C to +85°C
• Relative Humidity: 5%–95% RH, non‑condensing
• Vibration Resistance: IEC 60068‑2‑6 (5–500 Hz, 10 g rms)
• Shock Resistance: IEC 60068‑2‑27 (50 g, 11 ms half‑sine)
• Certifications: CE, GL (1SAA960000‑0401)

System Integration

• Compatible Platforms: ABB AC31, Advant OCS, MOD 300 DCS
• Bus Protocol: CS31 (remote I/O communication)
• Data Format: 16‑bit signed integer per channel
• Diagnostics: Self‑calibration for all channels, channel status monitoring

Key Features

Multi‑Signal Compatibility

• Universal Input Support: Accepts voltage, current, RTD, and thermocouple signals without external signal conditioners
• Pair‑Based Configuration: Channels configurable in pairs for mixed signal types in one module
• Built‑in Linearization: Automatic linearization for Pt100/Pt1000 and J/K/S thermocouples
• Isolated Design: Electrical isolation prevents ground loops and protects against electrical noise

High Precision & Stability

• 12‑Bit + Sign Resolution: Delivers accurate measurement across full‑scale ranges
• Low Total Error: < ±0.5% FS ensures reliable process data acquisition
• Self‑Calibration: Automatic calibration maintains long‑term measurement accuracy
• Stable 24 V DC Operation: Consistent performance under fluctuating industrial power conditions

Robust Industrial Design

• CS31 Bus Integration: Seamless remote I/O communication with AC31 controllers
• DIL Switch Configuration: Easy channel setup and module addressing without software tools
• Compact Form Factor: Space‑saving design for dense control cabinet installations
• IP20 Protection: Safeguards against dust and accidental contact in industrial environments

Diagnostic Capabilities

• Real‑Time Channel Monitoring: Detects open circuits, short circuits, and out‑of‑range signals
• Self‑Diagnostic Functions: Continuous health checks for module and communication status
• Fault Indication: Visual status indicators for quick troubleshooting
• Isolation Monitoring: Verifies electrical isolation integrity between field and bus sides

Application Scenarios

Process Automation & Manufacturing

• Chemical & Petrochemical Plants: Monitors temperature, pressure, flow, and level in reactors and distillation columns
• Food & Beverage Processing: Controls temperature and pressure in mixing, pasteurization, and packaging lines
• Pharmaceutical Manufacturing: Ensures precise temperature and pressure regulation in cleanroom processes
• Water & Wastewater Treatment: Monitors pH, conductivity, flow, and level in treatment systems
• Paper & Pulp Production: Controls temperature, moisture, and pressure in drying and pressing operations

Power Generation & Energy

• Thermal Power Plants: Monitors boiler temperature, steam pressure, and turbine vibration
• Hydroelectric Power Plants: Controls water flow, turbine speed, and generator temperature
• Renewable Energy Systems: Monitors solar array voltage, wind turbine temperature, and battery bank status
• Substation Automation: Measures voltage, current, and power factor in distribution networks

Heavy Industry & Metal Processing

• Steel Mills: Monitors furnace temperature, rolling mill pressure, and conveyor speed
• Mining Operations: Controls crusher motor current, conveyor load, and ventilation fan speed
• Cement Production: Regulates kiln temperature, raw material feed rate, and mill pressure
• Aluminum Smelting: Monitors electrolysis cell voltage, current, and temperature

Building Automation & Infrastructure

• HVAC Systems: Controls chilled water temperature, air flow, and pressure in commercial buildings
• Elevator & Escalator Control: Monitors motor current, speed, and brake pressure
• Pumping Stations: Regulates water pressure, flow rate, and pump motor load
• Airport & Port Automation: Controls baggage handling conveyor speed and crane load monitoring

Marine & Offshore Applications

• Ship Propulsion Systems: Monitors engine temperature, oil pressure, and generator output
• Offshore Platforms: Controls wellhead pressure, flow rate, and safety system parameters
• Vessel HVAC & Refrigeration: Regulates temperature and humidity in cargo holds and living quarters
